Specifications
Brand Name :
Liocrebif
Model Number :
LKF-FOGTS001
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-FOGTS001
Module Type :
Gyroscope Tester
Brand :
Liocrebif
Origin Place :
China
Application :
Fiber optic gyros performance testing
Output Format :
RS422
Description
Essential details
MOQ:1
Specification Number:LKF-FOGTS001
Product Introduction
Introduction

The multi-channel FOG testing system is a set of integrated software that can realize up to 8 channels of fiber optic gyro acquisition and testing at the same time. The whole system is divided into two parts: the acquisition board hardware and the host computer control system software. The acquisition board provides 8 channels, which can be connected to gyros of different protocols. The acquisition board is realized by FPGA, which integrates the 8-channel parallel gyro data into network data packets and sends them to the host computer. The host computer software parses the network packets and displays and processes the gyro data of each channel separately.

At the same time, the acquisition system software can realize the automatic process of the whole test plan including high and low temperature, static and dynamic test. After configuring the test plan, click to start, and the system automatically completes the temperature control and turntable control, and realize the data acquisition, analysis and saving after reaching the test conditions, and the whole process does not need extra manual operating.

Equipment Composition

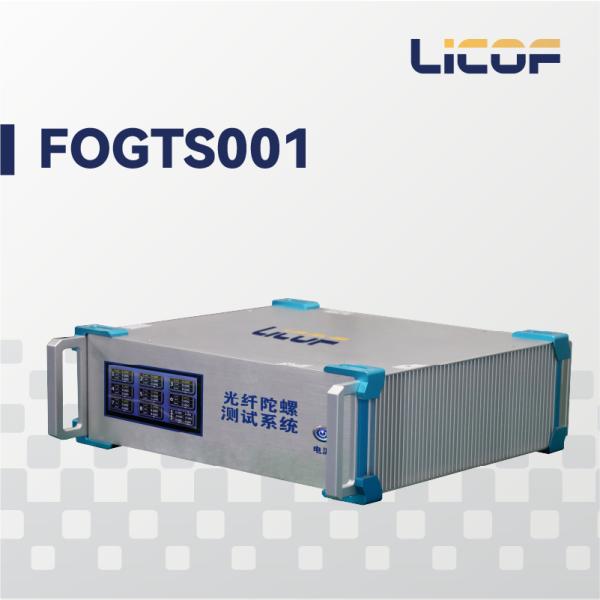

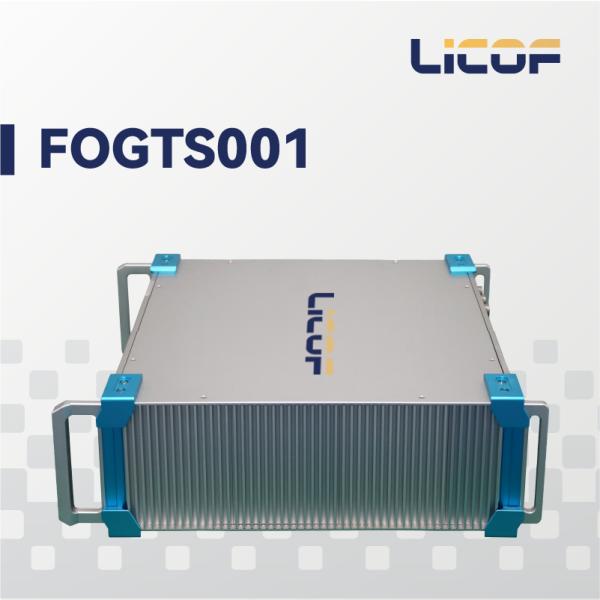

FOGTS001 Multi-channel Fiber Optic Gyro Test System

DB15 Output Connection Definition

No.

Definition

Remarks

1

NC

2

NC

3

NC

4

NC

5

T+

RS422 Transmit+ (gyro Receive+)

6

T-

RS422 Transmit- (gyro Receive-)

7

R+

RS422 Receive+ (gyro Transmit+)

8

R-

RS422 Receive- (gyro Transmit+)

9

Trig_IN

Trigger signal

10

GND

GND

11

+5V

12

GND

13

-5V

14

+24V

15

-24V(GND)



 Main features Multi-channel, up to 8 channels  Acquisition board and host software Realize the test plan automatically Complete temperature control and turntable control Configurable gyros protocols
 Application Areas Fiber optic gyros performance testing
