Multifunctional Gyroscope Tester Machine Automatic Fiber Coil Test Platform
Multifunctional Gyroscope Tester Machine Automatic Fiber Coil Test Platform
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-FMTP
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-FMTP
Module Type :
Gyroscope Tester
Brand :
Liocrebif
Origin Place :
China
Application :
Testing of Fiber coils, Testing of PM fiber or SM fiber
Output Format :
RS422
Description
Essential details
MOQ:1
Specification Number:LKF-FMTP
Product Introduction
Introduction

LKF-FMTP Fiber Coil Multifunction Test Platform integrates OTDR, polarization extinction ratio test and light leakage (leaking light indicates damage to the coil’s fiber) check functions. The user can measure the coil’s length, loss, PER, and check whether the coil’s fiber is damaged and leaking light simultanesously on this platform, the test reports can be automatically generated through the upper computer software, which can be networked and stored in a database. It has the advantages of simple and fast operation, automatic generation of reports and storage.

Equipment Composition

  1. Host computer
  2. Extinction ratio meter with automatic polarization
  3. Low-DOP (degree of polarization) broadband light source, wavelength 1310/1550nm
  4. Red light module (check light leakage)
  5. Two optical switches
  6. OTDR
  7. External high -speed light power meter probe
  8. Camera

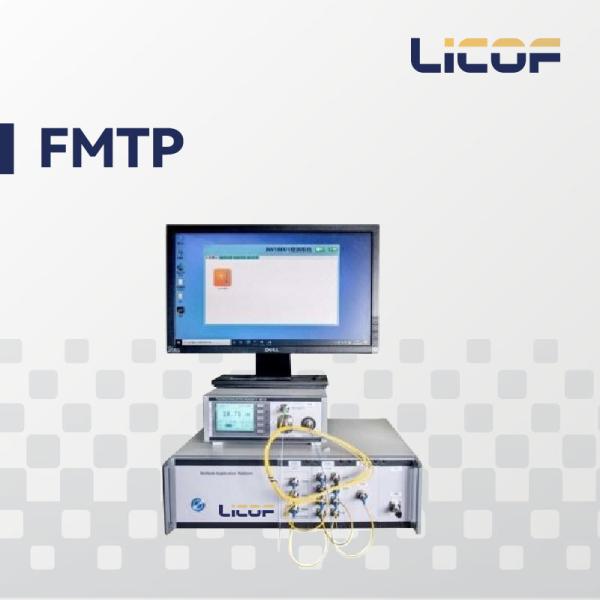

FMTP Fiber Coil Multifunction Test Platform

Extinction Ratio Meter

Wavelength

1200~1700 nm

Input Power Range

-40~+10dBm

Dynamic Range

-30~+10dBm: 50dB

-40~-30dBm: 40dB

Accuracy

PER≤2dB:≤±0.1dB

PER<30dB:≤±0.3dB

PER≥30dB:＜±0.1dB

Light Source

SLED or ASE

OTDR (optical time domain reflectometer)

Wavelength

1310/1550 nm

Dynamic Range

30/28 dB

Distance Uncertainty

± (1m+0.005%×distance+sampling interval)

Distance Range

1 to 120 km

Light Leakage Check

Inject red light into coil’s fiber to check any leakage of fiber coil, and take photo through a camera



 Main features Integrating the functions of OTDR, PER and light leakage check Easy to operate Complete tests at once Generating test report automatically
 Application Areas Testing of Fiber coils Testing of PM fiber or SM fiber
