E1-63 Network Interface Card , 12.5W Server Network Card Remote Software Upgrade
E1-63 Network Interface Card , 12.5W Server Network Card Remote Software Upgrade
Specifications
Brand Name :
Fiberhome
Model Number :
FonsWeaver 780B E1-63
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pc
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units
Delivery Time :
2-4 working weeks
Packaging Details :
Wooden Carton, Export Carton
Type :
E1 Interface Card
Code :
2.170.705
Rate :
2 Mbit/s
Weight (kg) :
0.72
Dimensions: H×W×D (mm) :
368×25×210
Power consumption (W) :
12.5
Description

E1-63 Network Interface Card , 12.5W Server Network Card Remote Software Upgrade

Overview

The E1-63 card is used as a tributary card in the system to process sixty-three E1 services.

  • Implements the mapping / demapping for sixty-three VC-12s.

  • Supports the termination of channel overheads (B3, H4, C2).

  • Supports the equipment loopback and line loopback tests.

  • Supports one 1:N (N≤7) protection group.

  • Supports the seamless switch between the active and standby clock and crossconnect cards.

  • Supports the remote software upgrade.

Working Principle

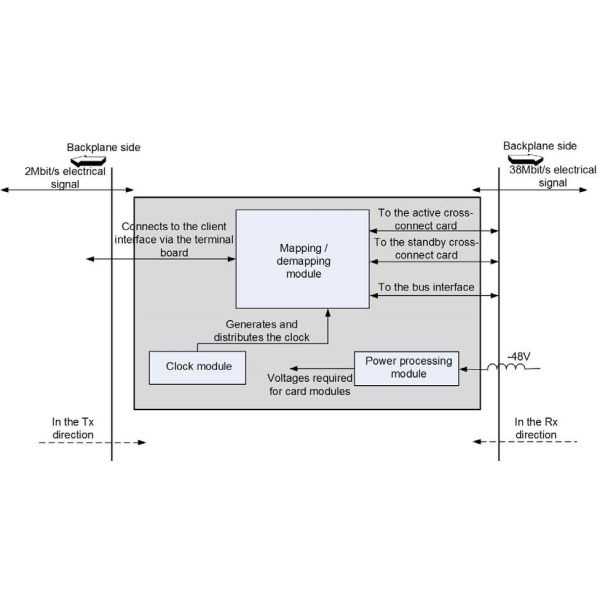

The working principle of the E1-63 card is shown as below.
E1-63 Network Interface Card , 12.5W Server Network Card Remote Software Upgrade

Mechanical Parameters

Item Specification
Weight (kg) 0.72
Panel dimensions: H×W×D (mm) 368×25×210

Power Consumption

Item Specification
Power consumption (W) 12.5
