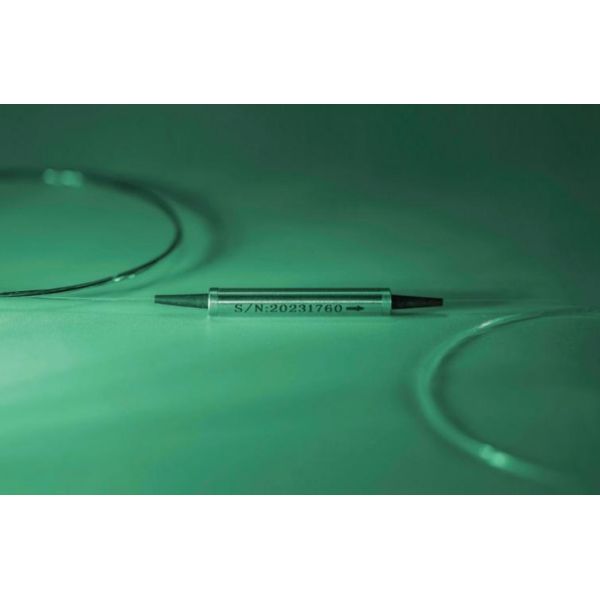

980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
980/1550nm PM WDM/Isolator/Tap coupler Hybrid Device
Specifications
Brand Name :
Unifiber or OEM
Model Number :
WDM/Isolator/Tap coupler Hybrid Combination
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
WDM/Isolator/Tap coupler Hybrid Combination
Wavelength :
T1550/R980
Tap Ratio :
1% 2% 5% or specify
Isolator type :
1550nm Dual Stage
Pump Type :
Forward Pump
Fiber Type :
PM 1550nm
Connector :
FC/APC or Specify
Description

The PM Tap+Isolator+WDM device is campact hybrid components built by PM Panda fiber or other customized fiber which provides fuction as a WDM with an optical isolation and a tap coupler integrated. Froward pump type and backward pump type are both available. The PM WDM/Tap/Isolator are characterized with low insertion loss, high extinction ratio, high return loss and high isolation. It has been widely used in EDFA, optics cutting, pump laser and research.

Features:
1. Low Insertion Loss
2. High Return Loss
3. High Extinction Ratio
4. High Isolation
Application:
1. Erbium-doped Optical Fiber Amplifier
2. Pump Laser
3. Optical Cutting
4. Product Development
Specification
Parameter
Spec
Unit
Grade
Single
Dual
Single
Dual
Single
Dual
1
SignalWavelength
1064
1550
2000
nm
Signal Wavelength Range
±5
±30
士15
nm
Max. additional loss,入c @23℃(Input to Output)
2.5
3.5
1.3
1.4
1.5
1.7
dB
Min. Signallsolation,入c±15@23C(Output to Input) Signal Channel
28
45
28
45
18
28
dB
Channel Isolation Pump Channel
30 12
dB dB
Tap Splitting Ratio
1±0.2,2±0.4,5±1,10±2
%
Pump Wavelength Range
980±10
1550±20
nm
Max. Insertion Loss(Pump Channel)
980±10 0.7
0.7
0.7
dB
Min. Extinction Ratio @23C(PM Optical FiberChannel)
20
20
18
dB
Min. Return Loss
50
dB
Max. Optical Power(CW)
300
mW
Max. Tensile Load
5
N
Operating temperature
-5~+50
℃
Storage temperature
-40~+85
℃
