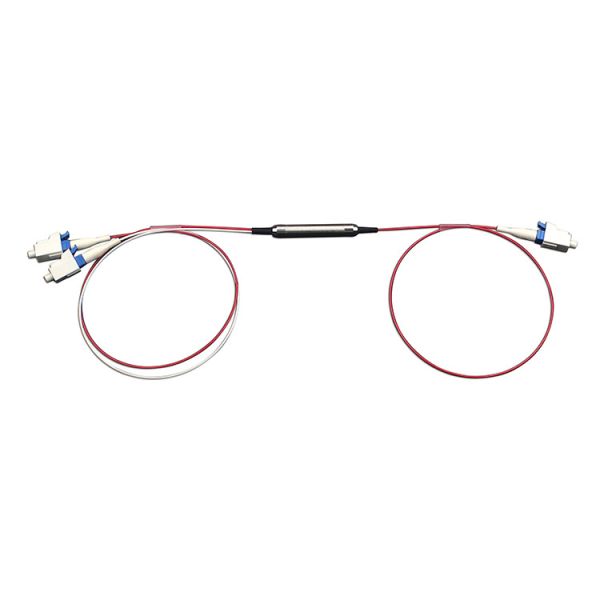

WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
WDM Polarization Maintaining Isolator 980 1550 1064nm For Fiber Lasers
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Polarization Maintaining Isolator WDM
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 days
Packaging Details :
Blister case
Product :
Polarization Maintaining Isolator WDM
Operating wavelength :
980/1550/1064nm
Extinction ratio :
≥20(Type B) ≥23(Type F)
Fiber type :
PM fiber for common & pass port; PM fiber or SM fiber for reflect port
Connector :
Customized
Application :
Fiber lasers or Fiber amplifiers
Description

The Polarization Maintaining Isolator WDM is a hybrid device that has functions of WDM and isolator in a single compact package. The PMIWDM is characterized with low insertion loss, high extinction ratio, high isolation, high return loss and excellent environmental stability and reliability. It is ideal choice for fiber amplifier application to combine signal and pump wavelength with stable signal isolation.

Key Features:
* Low insertion loss
* High extinction ratio
* High isolation
* Excellent stability and reliability

Applications:
* Fiber lasers
* Fiber amplifiers

Specifications:

Type

Parameter

Unit Polarization Maintaining Isolator WDM
Single Stage Dual stage Single Stage Dual stage
Operating wavelength nm T1064±5/R980±15 T1530~1580/R980±15
IL over pass band @23℃ dB ≤2.3 ≤3.5 ≤0.8 ≤1.0
IL over reflection band dB ≤0.6
Extinction ratio (Only for Signal Port) dB ≥20(Type B) ≥23(Type F)
Isolation for signal @23℃ dB ≥30 ≥45 ≥30 ≥46
Return loss dB ≥50
Fiber type /

PM fiber for common & pass port;

PM fiber or SM fiber for reflect port
Handling power mW ≤300 ≤500
Operating temperature ℃ -5~+50 -5~+70
Storage temperature ℃ -40~+85
Dimensions mm Ф5.5× L35 or Ф3.0× L30

Type B: Both axis working, Type F: for Fast axis blocked.

IL is 0.3dB (1310~1550nm) or 0.5dB (1064nm) higher, RL is 5dB lower and ER is 2dB lower for each connector added. The default connector key is aligned to slow axis.
