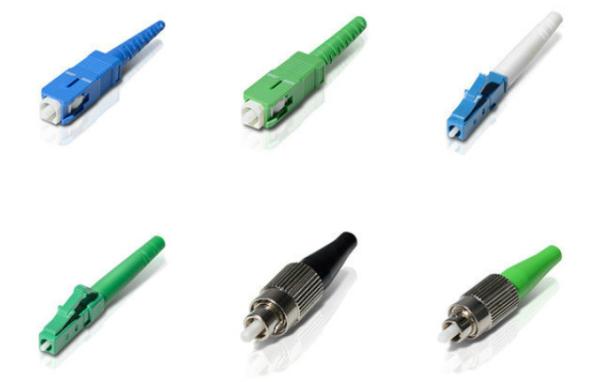

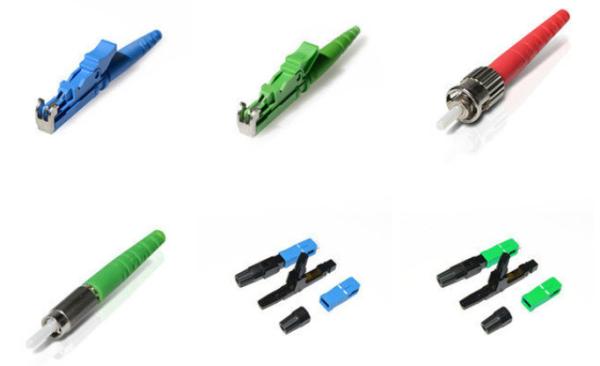

SC ST FC MU E2000 MTRJ Fiber Optic Connectors For 0.9 2.0 3.0 Optical Cable
SC ST FC MU E2000 MTRJ Fiber Optic Connectors For 0.9 2.0 3.0 Optical Cable
SC ST FC MU E2000 MTRJ Fiber Optic Connectors For 0.9 2.0 3.0 Optical Cable
SC ST FC MU E2000 MTRJ Fiber Optic Connectors For 0.9 2.0 3.0 Optical Cable
Specifications
Brand Name :
Fuji
Model Number :
Con-SC LC ST FC E2000 MU MT
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
3~7 work days
Packaging Details :
plastic zip bag and carton
Connector type :
SC LC ST FC E2000 MTRJ
Application :
Network Equipment
Fiber Type :
SM, MM
Insertion Loss :
<0.25dB
Return Loss :
>60dB
HS Code :
8544700000
Description

SC LC ST FC MU E2000 MTRJ Fiber Optic Connector for 0.9 2.0 3.0 Optical Cable

Advantages

1. our insertion loss 100% less than 0.25dB 85% insertion loss less than 0.2dB
2. Return loss: 35dB for MM 50dB for SM UPC 60dB for SM APC
3. Corning fiber, YOFC fiber and sumitomo fiber for option

4. A variety kinds of connectors for option

5. Using good concentricity ferrule
Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Ferrule hole sizes 125.2-126.2um 125-128um
Durability 500 mating cycles
Working temperature -40 to + 85ºC

Applications

  • CATV, metro test equipment; FTTH
  • Local area networks (LAN)
  • Wide area networks (WAN)
  • Data processing networks
  • Optical Distribution Frame
  • Optical Network Equipments

Fujioptics Standard Patch Cord

SC ST FC MU E2000 MTRJ Fiber Optic Connectors For 0.9 2.0 3.0 Optical Cable
