1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
Specifications
Brand Name :
UT-King
Model Number :
EG8120L
Certification :
RoHS, ce, ISO9001
Place of Origin :
Guangdong
MOQ :
1 pcs
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
10000pcs /per week
Delivery Time :
5-10 days
Type :
ONU, FTTH Solutions
Network :
Wireless Lan, Wired LAN, wifi
Connector Type :
SC/UPC
PON Port :
1GE+1FE+1POT
Power Supply :
12V 1A
Operating Temperature :
0°C to +40°C
Antenna Gain :
5dBi
Use :
FTTH
Distance :
0~ 20Km Max
Software: :
English Firmware
Description

ONU GPON Network Router SC/UPC 1GE 1FE 1POT Function for Gpon Onu Huawei
Huawei EG8120L FTTH is an intelligent routing-type ONT with one GE port, one POTS port, and one FE port. EG8120L gives high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. This provides a perfect terminal solution and future-oriented service-supporting capabilities for networks. through the high-performance forwarding ability to effectively guarantee the service experience of data and high-definition video, to provide FTTH deployment Ideal terminal solutions and future-oriented service support capabilities.
Specification
Model
EG8120L
Dimensions (H x W x D)
30 mm x 115 mm x 94 mm
Weight
About 155g
Operating Temperature
0°C to +40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100V to 240V AC, 50/60 Hz
System Power Supply
11V to 14V DC, 1A
Static Power Consumption
3.8W
Maximum Power Consumption
4.9W
Ports
1 POTS + 1 GE + 1 FE
Indicators
POWER/PON/LOS/LAN/TEL
Features

* Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
* Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault detection; remote batch upgrades of up to 2,000 devices each hour
* Link monitoring: IEEE 802.1ag-based Ethernet OAM implements End-to-End (E2E) link detection and network isolation
* Energy wise: SOC chips integrate PON, voice, gateway, and LSW modules, with up to 25% power savings
* Local management using Web and remote management using TR069 and OMCI
* Optical power monitoring
* 1ag Ethernet OAM
* Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
* Reactive and proactive intelligent rogue ONT isolation
* Remote upgrad and smart protection
* Dynamic power consumption adjustment
* With a backup battery, the guaranteed services can be selected flexibly

Details of Picture

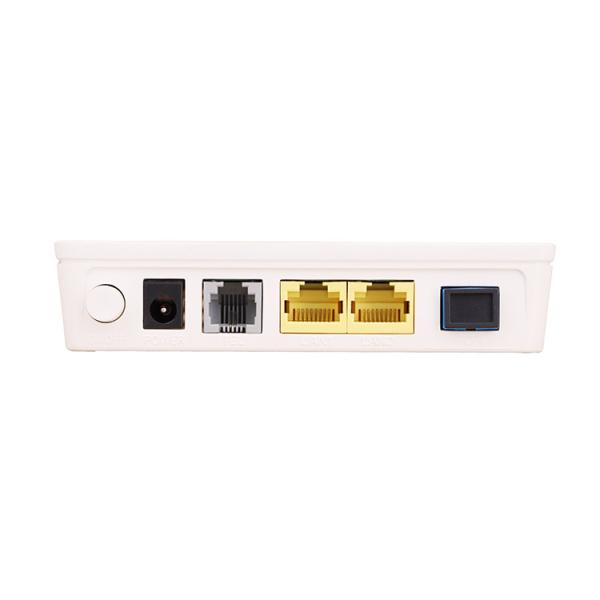

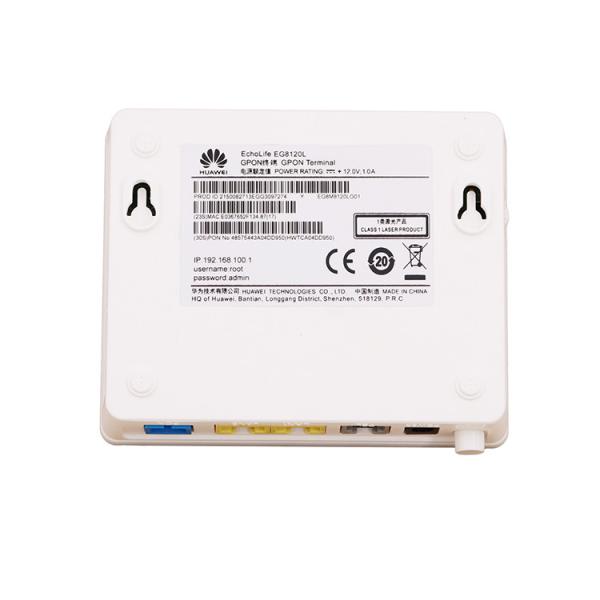

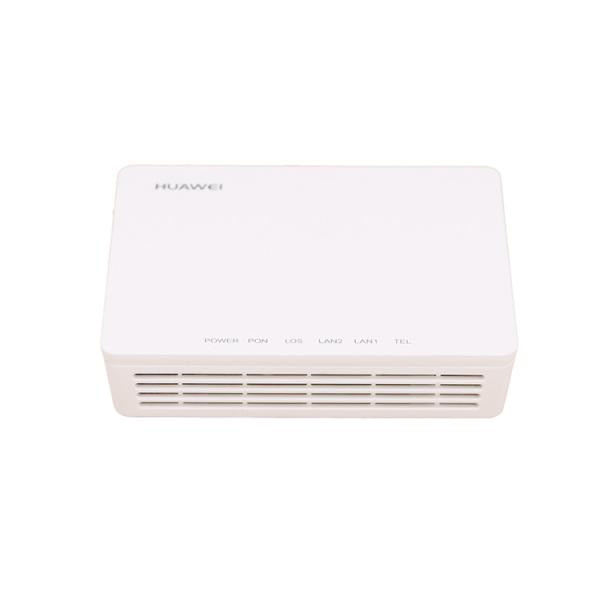

1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector

1GE 1FE 1POT GPON ONU Router EG8120L With SC/UPC Connector
