Specifications
Brand Name :
UT-King
Model Number :
GP4261
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10 pcs
Supply Ability :
1000 pcs/week
Delivery Time :
3-5days
Packaging Details :
1pcs/box
product name :
gpon onu
function :
1ge+1fe+iptv+wifi
Application :
FTTH FTTB FTTX Network
Color :
White
Wavelength :
Tx 1310nm,Rx1490nm
Type :
FTTH Onu Gepon Wifi
Warranty :
1 Year
Power supply :
12V 1A
Description

GPON ONU(UT-GP4261) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

Features

  • Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4 provides comprehensive GPON network compatibility
  • Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
  • Fiber access and gigabit port provide incredibly fast transfer speeds
  • Supports OMCI (ONT Management Control Interface) remote management

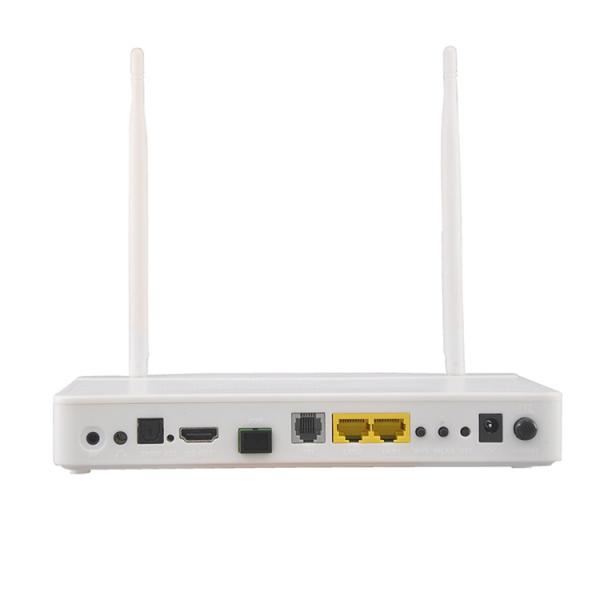

Model No. UT-GP4261
Interface

1 *SC/UPC Port or 1 *SC/APC Port;

1 *10/100/1000Mbps RJ45 Port;

1 *10/100Mbps RJ45 Port;

1 *WIFI(802.11b/g/n, 2T2R, 300Mbps,

two external antenna)

1 *FXS RJ11 Port

1 *HDMI(IPTV)
Chipset

PON:Realtek, RTL9603C+RTL8192FR;

IPTV:Amlogic S905x
Data Rate & Wavelength

Upstream:1.244Gbps, 1310nm

Downstream:2.488Gbps, 1490nm
Distance 0~ 20Km Max
External Power Supply DC 12V/2A
Dimensions (Length*Width*Height) 180mm×130mm×50mm
Weight (Full-Loaded) ≤0.6kg
Working temperature 0°C～40°C
Storage temperature: -40°C～70°C
Relative humidity: 10%～90%, non-condensing
