Specifications
Brand Name :
Perfect Laser
Model Number :
PE-H40
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 Units per year
Delivery Time :
7-10 Working Days
Packaging Details :
Sea-Worthy Packing Or Air-Worthy Packing
Product Name :
wall inkjet printer/direct to wall printer
Ink Jet Test :
Touch
Sensor :
Double
Painting Speed :
64m²/h
Ink Consumption :
6-10ML (Per Square)
Nozzle Model :
Has (Optional)
Nozzle Guard :
Have
Automatic Tracking :
Have
Automatic Memory :
Have
Painting Direction :
Vertical
Description

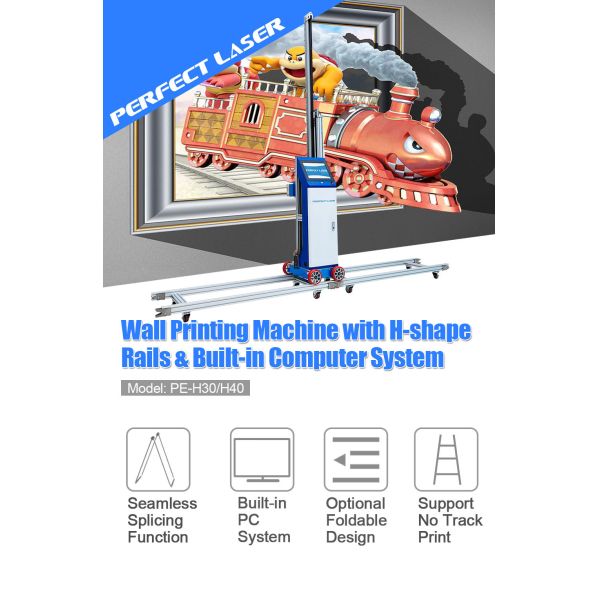

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

(Model:PE-H40)

►Product Description Of Wall Inkjet Printer

The wall inkjet printer is a modern direct to wall printer designed for high-resolution mural production. Using an advanced dual-nozzle configuration, it achieves faster printing speed while maintaining sharp image quality.

With automatic image zoning and laser positioning, the printer can complete super-sized pictures by printing section by section and joining them into one continuous image.

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls


►Product Features Of Wall Inkjet Printer

1. High-Resolution Vertical Printing System

The wall inkjet printer supports ultra-fine mural output with a maximum resolution of 9600 DPI for sharp details.

2. Large-Format Printing Capability

The direct to wall printer can handle unlimited image height and wide wall surfaces through intelligent area division.

3. Digital Positioning Technology

Ensures accurate starting point recognition and continuous printing between different image sections.

4. Energy-Efficient Power Design

Low power consumption with standby noise below 20dBA and drawing noise under 50dBA for indoor operation.

5. Multi-Interface Data Support

Supports USB storage and external hard disk input for flexible file transfer and on-site printing.

6. Durable Frame with Folding Guide Rail Option

Lightweight structure with optional foldable X-axis rail makes the machine easy to transport and store.

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls

►Technical Data Of Wall Inkjet Printer

Manufacturing State

PE-H40

In production

Flash Spray Test Touch
Data Transmission Method USB2.0/3.0 Ink Jet Test Touch
Sensor Double Z Axis Automatic Have
Length*width*height (host) 40cm*50cm*230cm Spirit Level Have
The Fastest Painting Speed 64m²/h Ultrasonic Sensor 2pcs
Ink Consumption Per Square 6-10ML Painted Mode Two-Way
Nozzle Model Epson Print Head (Industrial Grade) Atlas Type External U Disk/Hard Disk
X Axis Folding Has (Optional) Picture Processing AI Intelligent Image Processing
Nozzle Guard Have Automatic Tracking Have
Head Ink Tank Can Be Split And Transported Separately Automatic Memory Have
Motherboard Configuration 8-Core CPU, 4GBDDR Memory Memory Recovery Have
Highest Painting accuracy 9600DPI Quiet Zone Calibration Have
Painting Direction Vertical Step calibration Have
X Axis Guide 2300mm Nozzle Buffer Have
Y Axis Guide 3000mm Spray Distance 0.5-2.0cm
Z Axis Guide 170mm Ink Supply Method Automatic Ink Supply Under Negative Pressure
Display Screen Comes With 12-inch Control Screen Color Processing Automatic Color Matching
X Axis Effective Stroke 1800mm Painted Medium All White Walls
Y Axis Effective Stroke Unlimited Integrated Voltage Regulator Have
Z Axis Effective Stroke 150mm Laser Positioning Have
Total Body Weight 40.5KG Magnetic Limit Have
Total Track Weight 18.8KG Automatic White Jump Have
Ink Tank Capacity 400ML Battery Life Have
Nozzle Cleaning One Key Automatic Power-off Battery Life About 12 Hours
Certification Green Environmental Protection Certification,National Standard Testing (GB18582-2001, GBT9756-2001), CE Certification
Power Supply AC110V(90-132V)/AC220V(180—264V)AC,47-63HZ
Power Consumption No Load 20W, Generally 75W, Up To 250W
Noise Standby <20dBA, drawing <50dBA
Construction Temperature -10°C - 60°C (14°F - 140°F) 10%-80% Relative Humidity, Non-condensing
Storage Temperature -30℃ - 60℃(-22°F - 140°F)10%-80%Relative Humidity, Non-condensing State
Language Chinese and English (Customizable)
System Platform WindowsXP/Win7/Win8/Win10

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls


►Application Of Wall Inkjet Printer

The direct to wall printer can print on indoor and outdoor wall surfaces, including painted walls, putty walls and decorative coatings.

It also supports printing on glass, tiles, wooden boards and metal sheets.

It’s widely used for wall art, personalized home décor, commercial branding walls, museums, galleries and public decoration projects.

Wall Inkjet Printer 9600DPI High Resolution Direct to Wall Printer for Indoor & Outdoor Walls


►Packaging & Delivery Of Wall Printer Machine

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


►Competitive Advantages Of Wall Printer Machine


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
