Specifications
Brand Name :
Perfect Laser
Model Number :
PE-H40
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 Units per year
Delivery Time :
7-10 Working Days
Packaging Details :
Sea-Worthy Packing Or Air-Worthy Packing
Product Name :
Wall Printer Dual Head 64㎡/h High Speed Wall Printing Machine for Mural and Decoration
Data Transmission Method :
USB2.0/3.0
Sensor :
Double
Painting Speed :
64m²/h
Painted Mode :
Two-Way
Nozzle Model :
Epson Print Head (Industrial Grade)
Atlas Type :
External U Disk/Hard Disk
X Axis Folding :
Has (Optional)
Description

Wall Printer Dual Head 64㎡/h High Speed Wall Printing Machine for Mural and Decoration

(Model: PE-H40)

► Product Description of Wall Printer

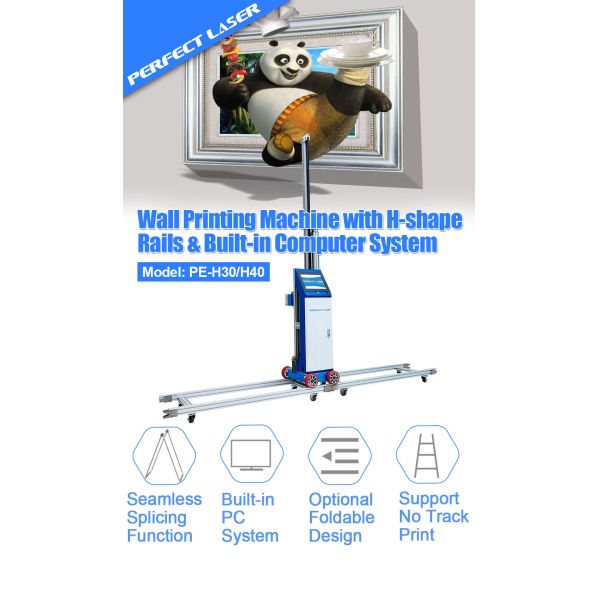

This wall printer is a high-speed wall printing machine designed for large-format mural and decorative painting. It adopts dual industrial-grade print heads, which greatly improves printing efficiency and image clarity. The machine is equipped with a built-in control screen, allowing users to operate directly without connecting to a computer, making it ideal for outdoor and on-site projects.

With digital positioning and intelligent image segmentation technology, it can print oversized pictures accurately and continuously on vertical surfaces.

Wall Printer Dual Head 64㎡/h High Speed Wall Printing Machine for Mural and Decoration

► Product Features of Wall Printer

1. High-Speed Dual Head System

This wall printer adopts dual industrial inkjet heads, achieving printing speed up to 64㎡/h while maintaining fine image quality.

2. Standalone Touch Screen Operation

The wall printing machine is equipped with a 12-inch LCD control panel, allowing direct operation without external computer connection.

3. Intelligent Image Segmentation Technology

Supports automatic division of oversized images into multiple sections and prints them continuously with accurate positioning.

4. Ultra-High Resolution Output

With advanced ink control and image processing, printing accuracy can reach up to 9600 DPI for vivid wall graphics.

5. Stable Rail & Sensor Protection System

H-shaped steel guide rail and dual ultrasonic sensors ensure smooth movement and safe print head distance on uneven walls.

6. Built-in Backup Power Supply

Integrated battery allows continuous operation for up to 12 hours, suitable for outdoor or unstable power environments.

Wall Printer Dual Head 64㎡/h High Speed Wall Printing Machine for Mural and Decoration

► Application of Wall Printer

This wall printer is suitable for interior and exterior walls, latex paint walls, putty walls and imitation porcelain walls. It can also print on non-absorbent materials such as glass, tiles, metal and wood.

Widely used in home decoration, advertising murals, hotels, schools, cultural centers and public art projects.

Wall Printer Dual Head 64㎡/h High Speed Wall Printing Machine for Mural and Decoration

Technical Data of Wall Printer

Manufacturing State

PE-H40

In production

Flash Spray Test Touch
Data Transmission Method USB2.0/3.0 Ink Jet Test Touch
Sensor Double Z Axis Automatic Have
Length*Width*Height (host) 40cm*50cm*230cm Spirit Level Have
The Fastest Painting Speed 64m²/h Ultrasonic Sensor 2pcs
Ink Consumption Per Square 6-10ML Painted Mode Two-Way
Nozzle Model Epson Print Head (Industrial Grade) Atlas Type External U Disk/Hard Disk
X Axis Folding Has (Optional) Picture Processing AI Intelligent Image Processing
Nozzle Guard Have Automatic Tracking Have
Head Ink Tank Can Be Split And Transported Separately Automatic Memory Have
Motherboard Configuration 8-Core CPU, 4GBDDR Memory Memory Recovery Have
Highest Painting Accuracy 9600DPI Quiet Zone Calibration Have
Painting Direction Vertical Step calibration Have
X Axis Guide 2300mm Nozzle Buffer Have
Y Axis Guide 3000mm Spray Distance 0.5-2.0cm
Z Axis Guide 170mm Ink Supply Method Automatic Ink Supply Under Negative Pressure
Display Screen Comes With 12-inch Control Screen Color Processing Automatic Color Matching
X Axis Effective Stroke 1800mm Painted Medium All White Walls
Y Axis Effective Stroke Unlimited Integrated Voltage Regulator Have
Z Axis Effective Stroke 150mm Laser Positioning Have
Total Body Weight 40.5KG Magnetic Limit Have
Total Track Weight 18.8KG Automatic White Jump Have
Ink Tank Capacity 400ML Battery Life Have
Nozzle Cleaning One Key Automatic Power-off Battery Life About 12 Hours
Certification Green Environmental Protection Certification,National Standard Testing (GB18582-2001, GBT9756-2001), CE Certification
Power Supply AC110V(90-132V)/AC220V(180—264V)AC,47-63HZ
Power Consumption No Load 20W, Generally 75W, Up To 250W
Noise Standby <20dBA, drawing <50dBA
Construction Temperature -10°C - 60°C (14°F - 140°F) 10%-80% Relative Humidity, Non-condensing
Storage Temperature -30℃ - 60℃(-22°F - 140°F)10%-80%Relative Humidity, Non-condensing State
Language Chinese and English (Customizable)
System Platform WindowsXP/Win7/Win8/Win10
