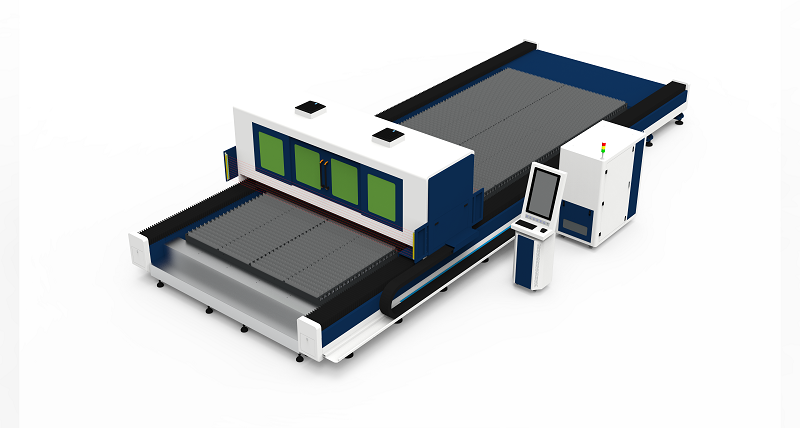

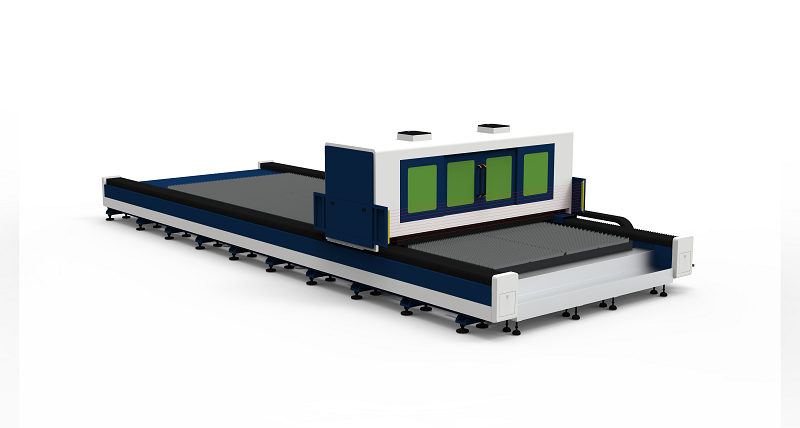

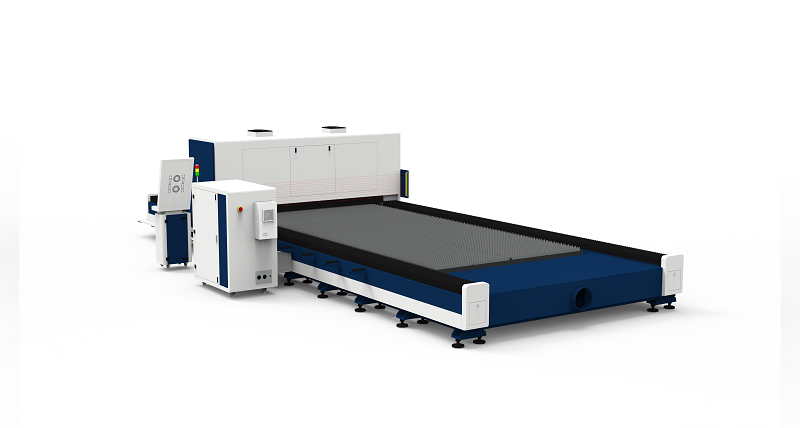

QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm
QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm
QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm
QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm
Specifications
Brand Name :
QIHAI
Model Number :
QH - 8025FD
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Cooling system :
water cooling,CW5200 waterchiller,Industry water chiller
Description
QH-8025FD Large format Sheet Metal Laser Cutting Machine
Description
The QH-8025FD is a high-precision, heavy-duty sheet metal processing equipment specially engineered for Large-format sheet processing, with its 8000×2500mm ultra-large processing area as the core highlight, complemented by stable performance and intelligent design to meet the efficient cutting needs of large-size, heavy-weight sheet metals in industrial scenarios. Designed for large-scale structural parts manufacturing, construction machinery, shipbuilding, and large-panel processing industries, this machine breaks through the limitations of small and medium-format laser cutting equipment, integrating large-format compatibility, high precision, and efficient operation into one, providing a comprehensive solution for large-size sheet metal processing.
Its 8000×2500mm large-format processing area allows for one-time cutting of extra-large sheet metals without secondary splicing, which not only improves processing efficiency but also avoids precision errors caused by splicing, ensuring the integrity and consistency of large workpieces.
Quick details
Core Highlight: Large-format processing capability with 8000×2500mm ultra-large processing area, supporting one-time cutting of extra-large sheet metals without splicing.
Key Specifications: 8000×2500mm processing area; 12000kg maximum loading weight; 1500W-20KW laser power range; ±0.03mm X/Y-axis positioning and repositioning accuracy; 100m/min maximum linkage speed; 1.0G maximum linkage acceleration.
Structural Features: 10000kg machine weight; 19680×3958×2560mm overall dimensions; double rack & pinion transmission with servo drive; 380V voltage and 50Hz frequency requirement, ensuring stability for large-format processing.
Application Scenarios: Large-scale structural parts manufacturing, construction machinery, shipbuilding, large-panel processing, and other industries requiring high-precision, efficient cutting of large-format, heavy-weight sheet metals.


Technical Specifications
Processing Area 8000 * 2500mm
Maximum Loading Weight 12T
Machine Weight 15T
Overall Dimensions 19680×3958×2560mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz
Beveling Cutting ±45°


QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm QH-8025FD Large format Sheet Metal Laser Cutting Machine 8000×2500mm


Advantage

Outstanding Large-format Processing Capability: The 8000×2500mm ultra-large processing area is the core advantage of the QH-8025FD, which can directly process extra-large sheet metals in one pass, eliminating the need for secondary splicing and manual trimming. Compared with small-format equipment that requires multiple cutting and splicing, this machine reduces processing steps by 40%, avoids splicing errors, and ensures the flatness and precision of large workpieces, which is particularly critical for large structural parts and ship panels where integrity and precision are essential.
Heavy-duty Loading Capacity Matching Large-format Needs: Equipped with a reinforced frame structure, the machine supports a maximum loading weight of 12000kg, perfectly matching the weight of large-format thick sheets (such as 8000×2500mm carbon steel sheets with thickness of 50mm). Unlike ordinary large-format machines that easily deform or shake when bearing heavy loads, its 10000kg heavy-duty body and stable structure effectively reduce vibration during operation, ensuring stable cutting precision even for heavy large-format workpieces.
High Precision and Efficiency for Large-format Processing: Adopting double rack & pinion transmission with servo drive, the QH-8025FD achieves ±0.03mm X/Y-axis positioning and repositioning accuracy, solving the problem of low precision in traditional large-format laser cutting. With a maximum linkage speed of 100m/min and 1.0G acceleration, it significantly improves the cutting efficiency of large-format workpieces—for example, cutting a full 8000×2500mm sheet takes 30% less time than ordinary large-format machines. The 1500W-20KW adjustable laser power range also allows flexible matching with different thicknesses of large-format sheets, realizing one-machine multi-purpose and reducing equipment investment.
Stable and Durable for Long-term Large-batch Operation: The machine’s overall dimensions of 19680×3958×2560mm are designed to adapt to industrial workshop layouts, while its robust structure and high-quality transmission system ensure long-term stable operation under large-batch large-format processing conditions. It meets the 380V/50Hz industrial power supply standard, with strong compatibility and easy integration into existing production lines, reducing the difficulty of equipment debugging and operation. This stability and durability greatly reduce maintenance costs and downtime, ensuring continuous production efficiency for large-format sheet processing.
