Automatic Obstacle Avoidance Metal Fiber Laser Cutter Side Mounted Lathe Semi Automatic Loading
Automatic Obstacle Avoidance Metal Fiber Laser Cutter Side Mounted Lathe Semi Automatic Loading
Specifications
Brand Name :
QIHAI
Model Number :
QH-GA
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
wood
Condition :
New
Cnc or not :
Yes
Graphic format supported :
PLT,DXF,AI,BMP,DST
Cutting thickness :
Depends,Materials,0-20mm,30mm acrylic,0-15mm
Cooling mode :
Water Cooling
Warranty :
1 Year
Laser power :
500W / 1000W / 2000W / 3000W,500-3000W,100W/130W/150W/280W,150W reci,80w/100w/130w/150w
After-sales service provided :
Engineers available to service machinery overseas
Color :
White,according to client,Required,Blue and white
Description
Automatic Obstacle Avoidance Metal Fiber Laser Cutter Side Mounted Lathe Semi Automatic Loading Automatic Obstacle Avoidance Metal Fiber Laser Cutter Side Mounted Lathe Semi Automatic Loading

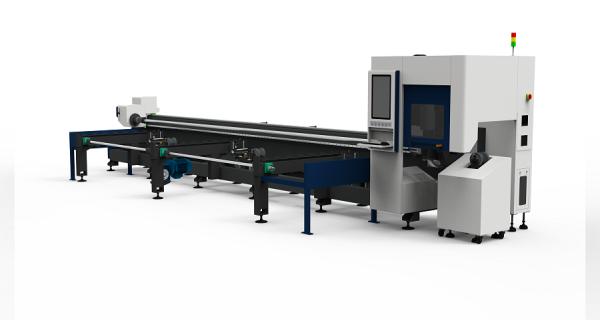

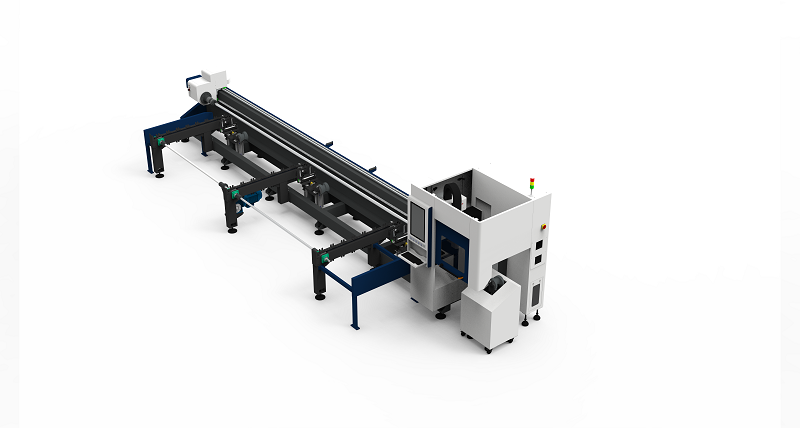

QH-GA Automatic Obstacle Avoidance Tube Cutting Machine Side-mounted Lathe Semi-automatic Loading
Description​
The QH-GA-6012 Automatic Obstacle Avoidance Tube Laser Cutting Machine is a targeted solution for small-to-medium batch tube processing, defined by its semi-automatic loading system paired with a side-mounted lathe—striking a balance between human flexibility and automated precision.​
Its semi-automatic workflow is designed for practicality: operators manually assist with loading tubes (round: Φ15-500mm; square: 15×15-500×500mm; length: 5500-6500mm) onto the material rack, a step that lets workers adjust irregular or thick-walled tubes for optimal alignment.
​
Quick Detail​

Semi-automatic Loading Core: Manual tube alignment + auto clamping/obstacle avoidance/cutting; adapts to irregular tubes (e.g., slightly bent Φ500mm round tubes) that full-auto loaders struggle with.​

Key Specs: QH-GA-6012; round Φ15-500mm/square 15×15-500×500mm; 5500-6500mm tube length; ±0.03mm precision; side-mounted lathe chuck.​

Efficiency & Safety: Cuts manual labor by 50% vs. fully manual machines; built-in obstacle avoidance protects laser head during auto processing.

Product Specifications
Model QH-GA-6012
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 1.8T
Chuck installation on the lathe Side-mounted
Dimensions (L*W*H) 8500*2920*2050mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube
Advantage​

Semi-automatic Flexibility for Diverse Tubes: Unlike full-auto loaders that require uniform tube straightness/thickness, the manual loading step lets operators adjust non-standard tubes (e.g., thick-walled 500×500mm square tubes with minor deformities) before auto-clamping. This ensures ±0.03mm cutting precision even for mixed batches, expanding compatibility by 40% vs. rigid full-auto systems and reducing material waste from misaligned tubes.​

Lower Operation Threshold vs. Full Automation: Semi-automatic loading eliminates the need for complex auto-feeder calibration (a time-consuming step for full-auto models when switching tube types). Operators only need basic training to handle loading/adjustment, cutting setup time for new tube sizes by 60%—perfect for workshops with frequent product changes or rotating staff.​

Cost-Effective Balance of Labor & Speed: It slashes processing time by 45% vs. fully manual machines (auto clamping/cutting replaces manual marking/feeding) while costing 25%-35% less upfront than full-auto models. For small-to-medium batches (e.g., 50-200 tubes per run), it avoids the overcapacity of full-auto systems, delivering ROI 1.5x faster.​

Stable Semi-Auto Collaboration with Side-mounted Chuck: The side-mounted lathe chuck works in tandem with semi-automatic loading: operators position long tubes (6500mm) to reduce sagging, then the chuck clamps securely—minimizing vibration during auto cutting. This ensures consistent ±0.03mm accuracy across the entire tube length, a benefit lost in fully manual setups where human error causes uneven clamping.
