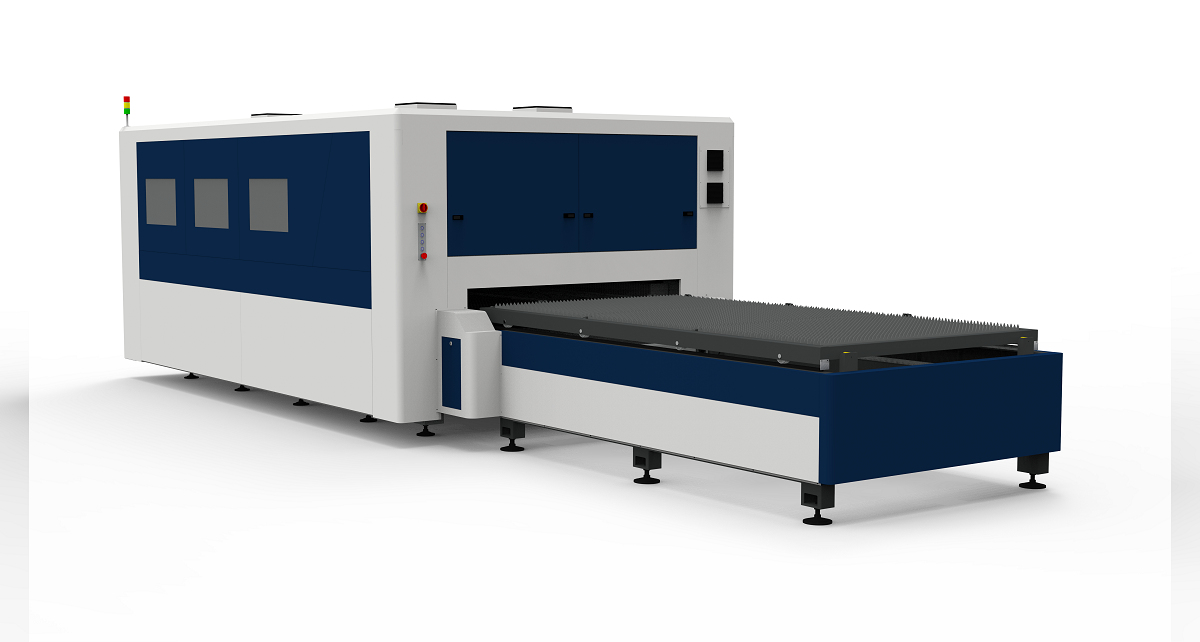

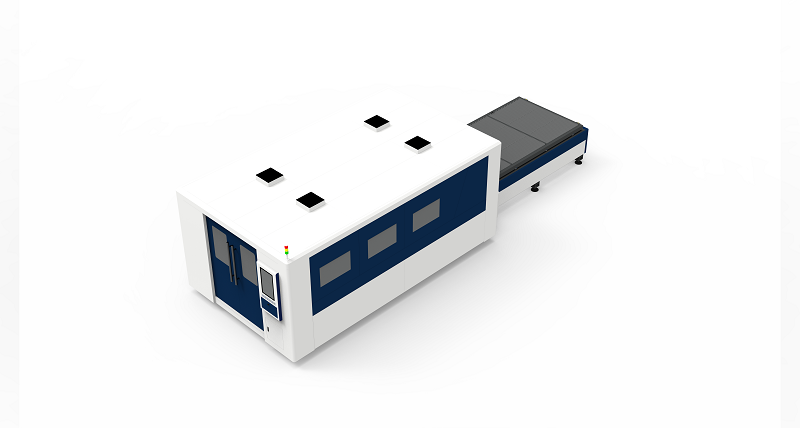

QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
Specifications
Brand Name :
QIHAI
Model Number :
QH - 8025FB
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Cooling system :
water cooling,CW5200 waterchiller,Industry water chiller
Description
QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
Description
The QH-8025FB is a high-performance sheet metal laser cutting machine engineered with High power as its core competitive advantage, integrated with a dual-table design and an 8000×2500mm large processing area to deliver efficient, precise, and stable cutting solutions for heavy-duty, thick-sheet metal processing scenarios. Specifically designed for industries requiring high-power cutting—such as heavy machinery manufacturing, large structural parts processing, high-strength steel plate cutting, and large-batch thick-sheet production—this machine breaks through the limitations of low-power laser equipment, combining ultra-high laser power, dual-table efficiency, and large-format compatibility to meet the stringent requirements of high-intensity industrial processing.
Quick details
Core Highlight: High power laser system with adjustable range of 6000W-20KW, supporting efficient cutting of thick sheet metals and high-strength materials. Key Configuration: Dual-table design with 8000×2500mm large processing area, 12000kg maximum loading weight, and 10000kg heavy-duty machine body. Precision & Speed: ±0.03mm X/Y-axis positioning and repositioning accuracy, 100m/min maximum linkage speed, 1.0G maximum linkage acceleration, double rack & pinion transmission with servo drive for stable and fast operation. Basic Parameters: Overall dimensions 19680×3958×2560mm, voltage requirement 380V, frequency 50Hz. Application Scope: Heavy machinery, large structural parts, high-strength steel plates, and large-batch thick-sheet metal processing scenarios requiring high-power cutting.


Technical Specifications
Processing Area 8000 * 2500mm
Maximum Loading Weight 12T
Machine Weight 15T
Overall Dimensions 19680×3958×2560mm
Laser Power Range 6000W-40KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz
Beveling Cutting ±45°


QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm



Advantage

High Power Matches Dual-Table Design for Higher Efficiency: The high-power laser ensures continuous and stable cutting even during long-time high-intensity operation, which is perfectly compatible with the dual-table’s simultaneous loading/unloading function. While the high-power laser is cutting on one table, the other table can complete sheet loading and positioning, avoiding downtime caused by manual loading/unloading after cutting. This synergy between high power and dual-table design increases overall production efficiency by 50% compared with single-table, low-power equipment, making it suitable for large-batch continuous production.
High Power with High Precision & Stability: The machine adopts a heavy-duty structure (10000kg weight) and double rack & pinion servo transmission system, which effectively suppresses vibration caused by high-power laser operation, ensuring stable power output and cutting precision. With ±0.03mm positioning and repositioning accuracy, even under maximum 20KW power, it can maintain consistent cutting quality, solving the problem of precision loss caused by high power in ordinary laser cutting machines, and meeting the high-precision requirements of thick-sheet structural parts and precision components.
High Power Adaptability & Cost-Effectiveness: The adjustable 6000W-20KW high-power range allows the machine to flexibly match different cutting needs—from thin sheet metals to extra-thick plates, from ordinary steel to high-strength alloys, without the need for multiple devices. The 12000kg maximum loading weight and 8000×2500mm large processing area, combined with high power, enable one machine to handle various large and thick sheet metal processing tasks, reducing equipment investment costs for enterprises. Meanwhile, the high-power laser’s energy efficiency is optimized, reducing energy consumption per unit of processing, and the stable structure reduces maintenance frequency, further lowering long-term operation costs.
