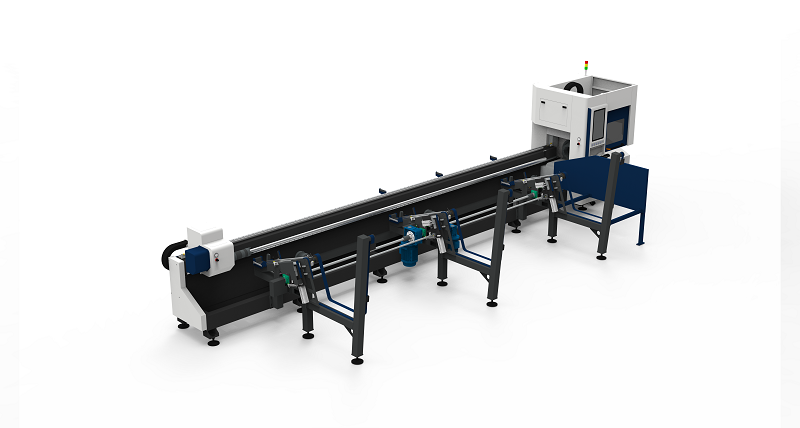

Follow-up Support & Beveling Core: Dynamic follow-up support eliminates 5500-6500mm tube sagging; ensures stable clamping for ±45° beveling, paired with ±0.03mm axis precision.​

Key Specs: Cuts Φ15-500mm round/15×15-500×500mm square tubes; 5500-6500mm length, 1500W-20KW power, 1.7T weight (8500×1380×2050mm size).​

Value: Reduces bevel angle deviation by 40%-50%; no manual intermediate support needed for long-tube beveling.

Follow-up Support Guarantees Uniform Bevel Angles on Long Tubes: For 5.5-6.5m-long tubes (e.g., 6m hydraulic pipes), unsupported sections often sag by 0.5-1mm, leading to ±2°+ bevel angle deviation. The QH-GS-6012’s follow-up support tracks the tube’s feed movement in real time, providing targeted upward support to keep the tube aligned with the side-mounted lathe’s axis. This ensures ±45° bevel angles stay within ±0.5° tolerance across the entire tube length, cutting bevel-related rework by 45%.​

Adaptive Support for Diverse Tube Sizes & Beveling Needs: The follow-up support automatically adjusts its clamping force and support height based on tube diameter (Φ15-500mm) and shape (round/square). For small-diameter tubes (Φ15-50mm), it uses gentle support to avoid deformation during delicate ±45° beveling; for large thick-walled tubes (Φ300-500mm), it increases support force to counteract weight-induced sag. This eliminates the need to swap custom fixtures for different tubes, reducing bevel setup time by 30%.​

Synchronized Operation Boosts Beveling Efficiency: Unlike static supports that require stopping to reposition mid-bevel, the follow-up support moves in sync with the side-mounted lathe’s tube feeding. This enables continuous, uninterrupted ±45° beveling of 6m-long tubes—processing 12+ 6m tubes per hour (vs. 7-9 with static supports). The seamless workflow also reduces operator intervention, as there’s no need to manually adjust support positions during beveling.​

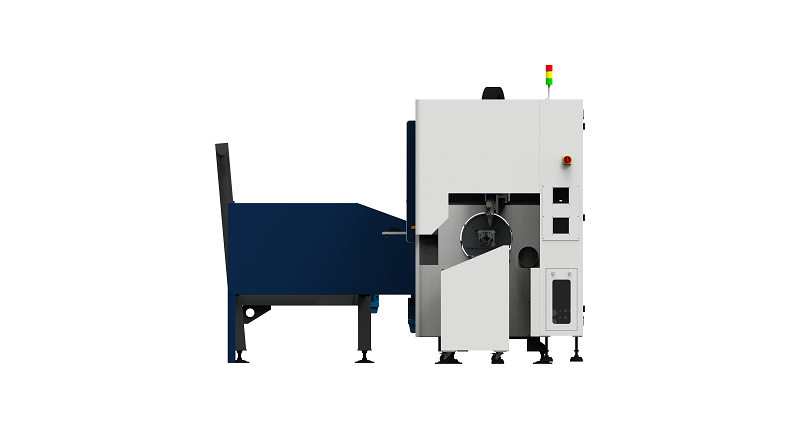

Compact Design Retains Stable Beveling Performance: At 8500×1380×2050mm and 1.7T, the machine’s compact side-mounted layout fits workshops with limited space—yet its sturdy frame provides a stable base for the follow-up support. The integrated design avoids the bulk of traditional “lathe + separate support” setups, while the follow-up support’s anti-vibration effect ensures ±0.03mm axis precision translates directly to consistent bevel quality, making it ideal for space-constrained high-precision tube workshops.
