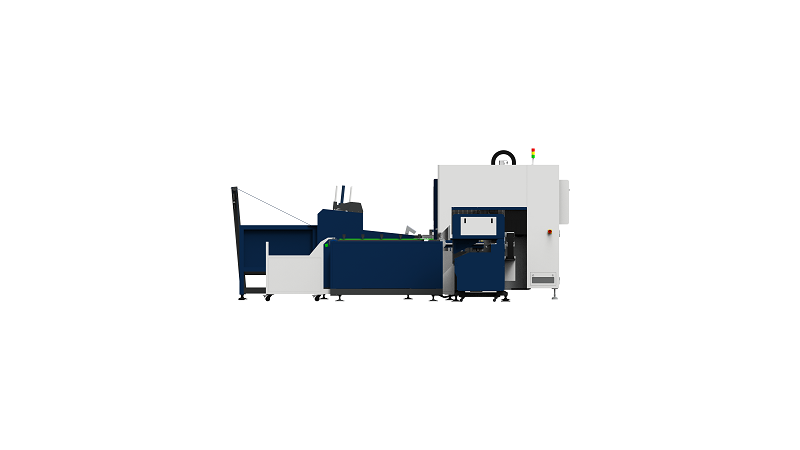

High Power 3 Chucks Fiber Laser Metal Cutting Machine Standard Model 6000mm 8000mm 12000mm
High Power 3 Chucks Fiber Laser Metal Cutting Machine Standard Model 6000mm 8000mm 12000mm
Specifications
Brand Name :
QIHAI
Model Number :
QH-GC3-S
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
40 days
Packaging Details :
wood
Positioning Accuracy :
±0.03mm
Laser Type :
Fiber Laser
Power Supply :
AC380V/50Hz/60Hz
Repositioning Accuracy :
±0.02mm
Cutting Thickness :
0.5mm-25mm
Tube Length :
6000mm/8000mm/12000mm
Cooling Mode :
Water Cooling
Tube Diameter :
20mm-200mm
Cutting Speed :
0-15m/min
Warranty :
1 years
Description
High Power 3 Chucks Fiber Laser Metal Cutting Machine Standard Model 6000mm 8000mm 12000mm
QH-GC3-S High Power 3-Chuck Tube Cutting Machine Standard Model
Description
The QH-GC3-S is a Standard Model tube laser cutting machine engineered around two core strengths: 3-chuck tube clamping system for stable processing and high laser power range (6000W-20KW) for heavy-duty tube cutting—ideal for industries like construction trusses, heavy machinery, and large-diameter pipeline manufacturing that require precise, efficient processing of thick-walled or large-diameter tubes.​
As a Standard Model, it features universal compatibility with common workshop setups (no specialized installation) and supports mainstream tube types: round tubes (Φ15-500mm) and square tubes (15×15-500×500mm), with a tube length capacity of 5500-6500mm—covering most industrial tube processing needs. Its 3-chuck system distributes clamping force evenly across long tubes, preventing deformation or sagging during high-power cutting; paired with ±0.03mm X/Y-axis positioning and repositioning accuracy, this ensures consistent cuts (including bevels, notches, and holes) even for thick-walled tubes (up to 25mm+ with 20KW power).
​
Quick Detail

Dual Core Advantages: 3-chuck system (even clamping, no tube deformation); High Power 6000W-20KW (cuts thick-walled tubes up to 25mm+).​

Key Specs: Round (Φ15-500mm)/square (15×15-500×500mm) tubes; 5500-6500mm tube length; ±0.03mm dual-axis accuracy; 6T weight for stability.​

Fit: Batch thick-walled tube processing (heavy machinery/pipelines); standard 380V/50Hz industrial power (implied for compatibility).

Product Specifications
Model QH-GC3-S
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 6T
Dimensions (L*W*H) 16680*5480*2250mm
Laser Power Range 6000W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Automatic Loading Fully-automatic Loading
Compatible Tube Types Round Tube / Square Tube

Advantage

3-Chuck Clamping Ensures Stability for High-Power Cutting: The 3-chuck system’s even force distribution fixes long tubes (5500-6500mm) firmly, eliminating sagging or rotation during high-power (15KW-20KW) cutting of thick-walled tubes (e.g., 20mm carbon steel). This stability, paired with ±0.03mm precision, avoids cut deviations common in 2-chuck machines—reducing scrap rates by 30% and ensuring uniform weld joint quality for pipeline or machinery applications.​

6000W-20KW High Power Handles Heavy-Duty Tasks: Unlike lower-power models, the 6000W-20KW range cuts thick-walled tubes (20-25mm) in a single pass, eliminating multi-pass processing that wastes time. For example, a 20KW power setup processes 20mm carbon steel tubes 2x faster than 3000W machines, while the 6000W option balances efficiency and precision for 8-12mm stainless steel tubes. This versatility eliminates the need for multiple machines, lowering equipment costs by 40% for businesses processing diverse tube thicknesses.

Standard Model + 3-Chuck + High Power = Low-Cost Batch Efficiency: As a Standard Model, it avoids custom setup costs and works with off-the-shelf tube fixtures. The 3-chuck system enables fast tube loading/unloading (saving 15 seconds per tube vs. manual clamping), while high power reduces processing time—combined, these cut batch production cycles by 25%. It also supports common tube cut types (bevels, holes, notches) without tool changes, streamlining workflows for industries like construction that require varied tube components.​
