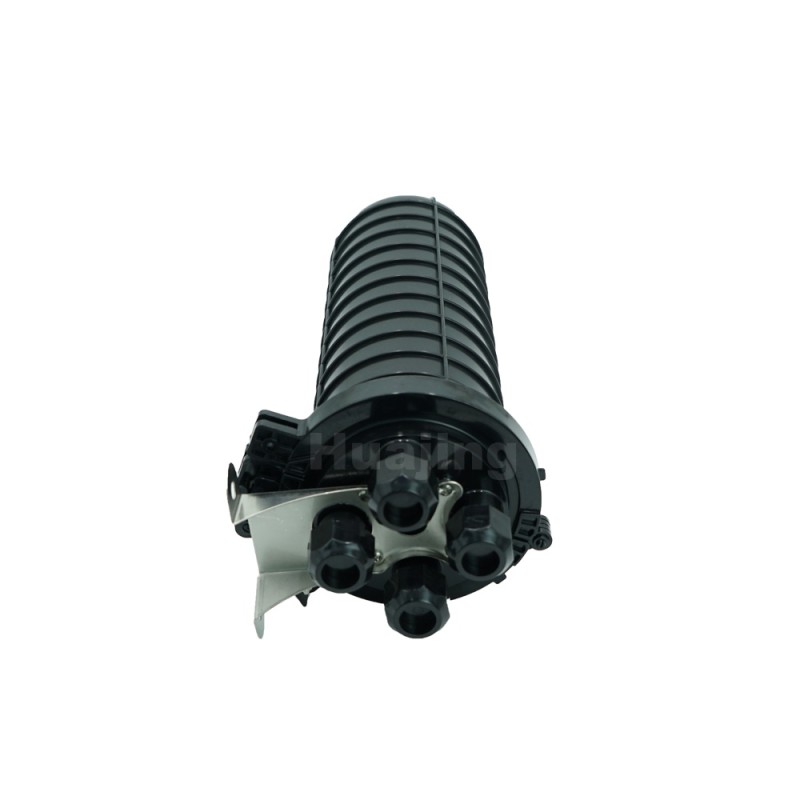

4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
4 Ports 96 Cores Vertical Fiber Splice Enclosure Mechanical Sealing IP68 Protection
Specifications
Model Number :
GJS-M3/JF
Place of Origin :
China
Price :
10.1-18.9USD/PC
Material :
MPP
Capacity :
96 cores
MOQ :
100
Cable diameter (mm) :
Φ7-Φ16
Delivery Time :
1-4weeks
Cable port :
4
Size (mm) :
Φ190×410
Brand Name :
Huajing
Model. :
GJS-M3/JF
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Sealing type :
Mechanical seal
Description

Application:

This product is used for optical splicing or direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. All performance indicators meet the requirements of the latest national standards.
  2. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  3. There are 4 ports.
  4. Can be used for pole mounting, wall mounting, and underground;
  5. The box body adopts mechanical sealing.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ190×410 Carton size(mm) 550×450×480/6pcs
Weight(Kg) 2 CBM(m³) 0.119
Cable port 4 Gross weight(Kg) 13.3
Cable diameter(mm) Φ7-Φ16 Others
Tray capacity 24(single core)
Max tray number 4 Fiber storage box Plastic box
Core capacity 96(single core) Installation wall mounting(standard)
Sealing type Mechanical seal＆silicon rubber pole mounting(optional)
