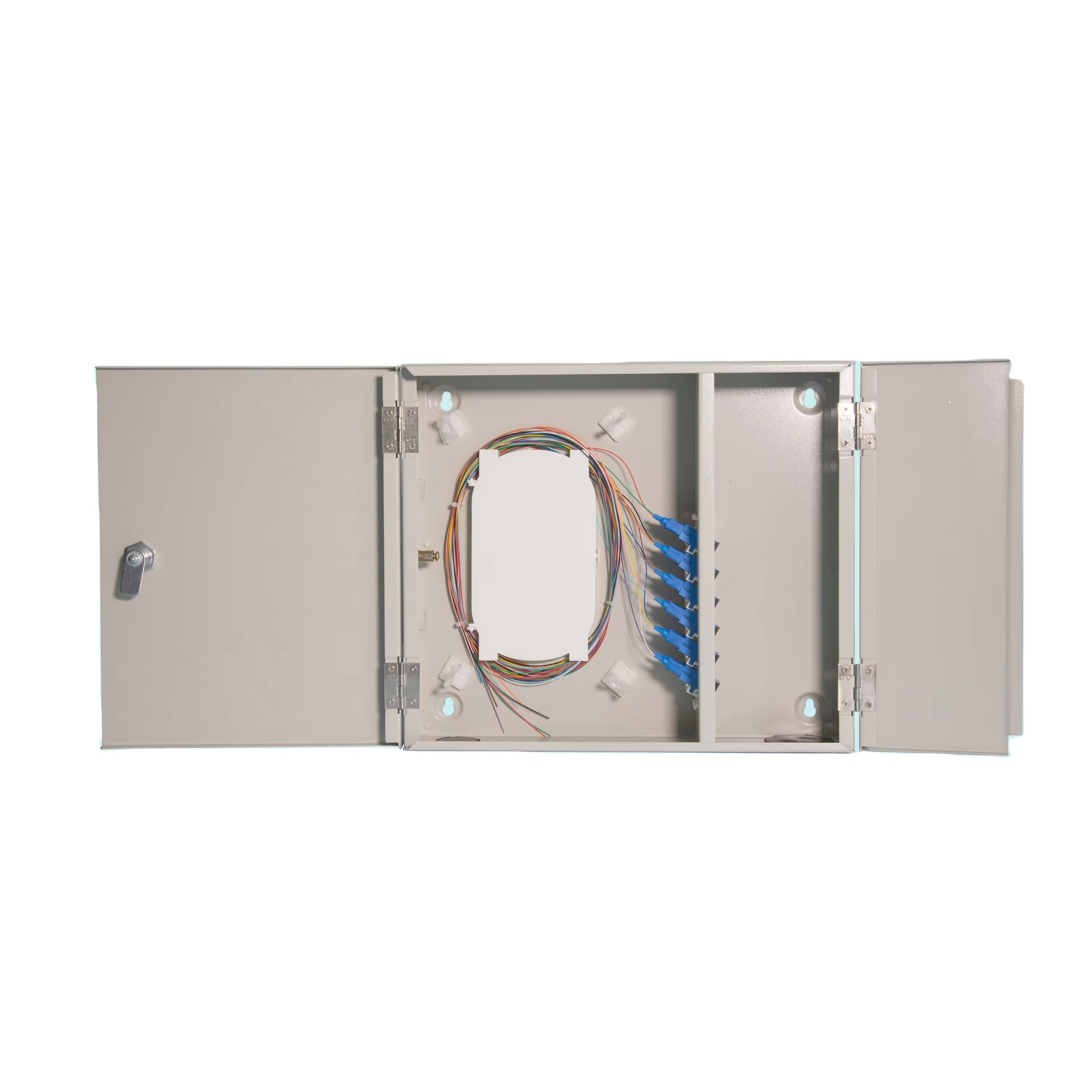

2 Door Cable Distribution Cabinet Wall Mounted With Metal Structure 12 Cores
2 Door Cable Distribution Cabinet Wall Mounted With Metal Structure 12 Cores
Specifications
Delivery Time :
1-4weeks
Door type :
2 doors
Model Number :
GP(05)C-12
Material :
Cold Rolled Steel
Price :
17.1-26.3USD/PC
Adapter type :
SC/FC/ST
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Cable in /out :
2 / 2
Place of Origin :
China
Color :
light gray
Mounting :
Wall or pole
Brand Name :
Huajing
Model. :
GP(05)C-12
MOQ :
100
Capacity :
12 cores
Description

Application:

GP(05) series are available for small capacity communication system.
Feature:
  1. The shell is made of high-quality cold-rolled steel coated with plastic powder.
  2. 2 doors design features a compact structure with clearly defined areas for cable insertion and fiber extraction, facilitating easy operation and management.
  3. Multifunctional adapter panel compatible with FC, SC, and ST adapters, 30oangle adapter installation make it easier to operate.
  4. Suitable for ribbon and non-ribbon cable.
  5. Wall or pole mounting.

Technical index:

  • Optic fiber bending radius:≥40mm
  • Loss of splice tray:≤0.01dB
  • Length of optic fiber can be hold:≥1.6m
  • Temperature:-400C～+700C
  • Resistance of lateral pressure:≥2000N/10cm
  • Resistance of impact:≥20N.m

Specification:

Parameter Packing Detail
Model. GP(05)C-12 Carton Size(mm) 405×335×605/5pcs
Size(mm) 350*300*80 CBM(m³) 0.087
Weight(Kg) 3.8 Gross weight(Kg) 20.6
Cable in/out 2 / 2 Others
Cable diameter Φ6~Φ24 main body material cold-rolled steel
Core capacity 12(single core)
adapter SC/FC/ST card strip
