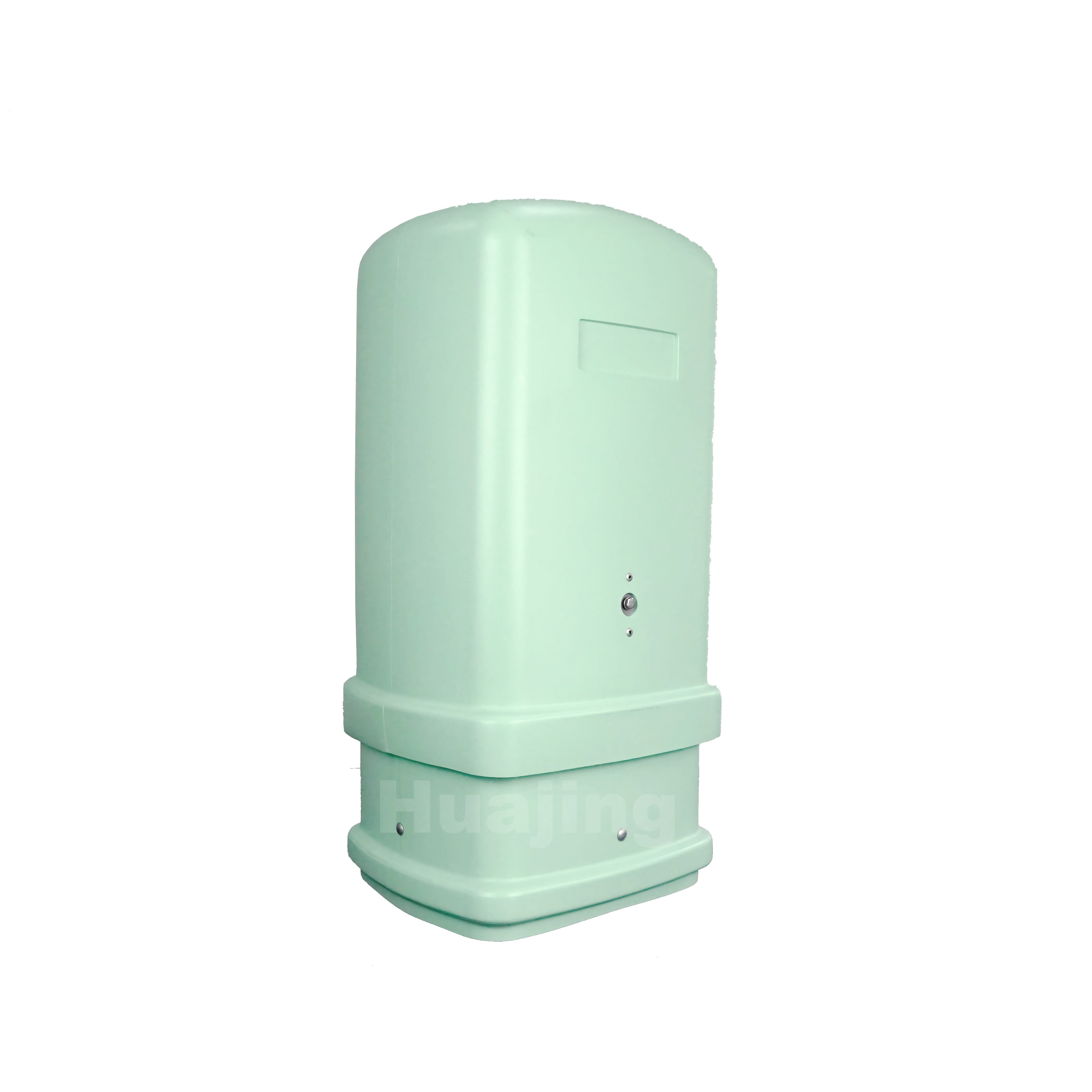

1:16 Floor Standing Fiber Optic Splitting Distribution Box
1:16 Floor Standing Fiber Optic Splitting Distribution Box
1:16 Floor Standing Fiber Optic Splitting Distribution Box
1:16 Floor Standing Fiber Optic Splitting Distribution Box
Specifications
Delivery Time :
1-4weeks
Model Number :
GP(06)2 (splitting type)
Material :
High-strength engineering plastics
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Installation :
on the ground
Place of Origin :
China, Chengdu
Size :
346 *298 *681 mm
Price :
10.73-16.88
weight :
7.4kg
Brand Name :
Huajing
Model. :
GP(06)2 (splitting type)
MOQ :
100
Max splitting :
1:16
Description
Application:

The box is suitable for the protection of optical cable and optical communication equipment connection. Through the pigtail spliced with the incoming cable inside the box, the signal is led lead out directly to realize the wiring function. It is suitable for floor installation outdoors.

Features:
  1. Provide protection for optical cable distribution, which is waterproof and dustproof;
  2. Independent optical fiber l splicing area, adapter connection area and cable wiring parking area, easy to operate and maintain;

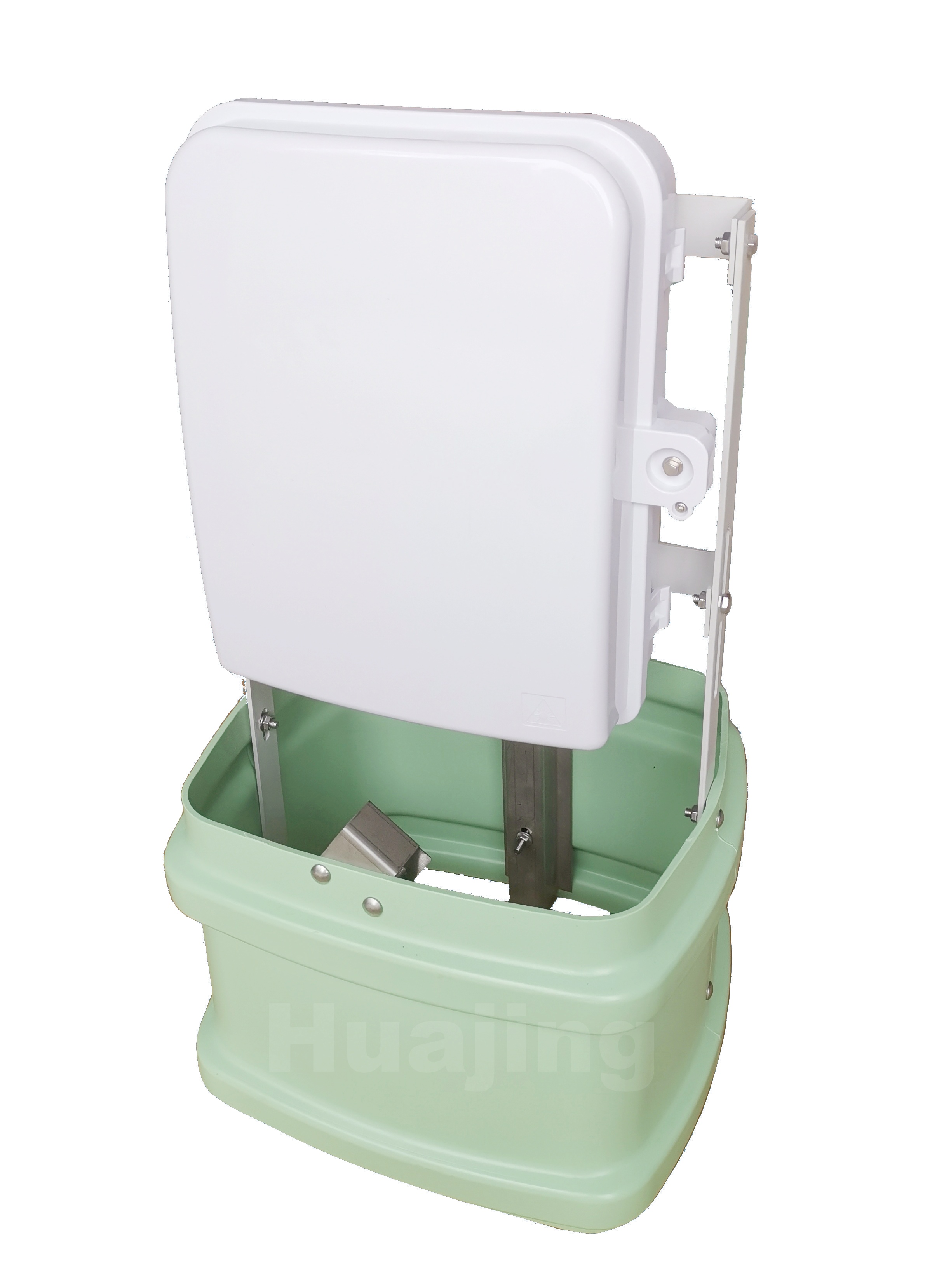

  3. The box body is upper and lower structure. After opened, it can be operated on both sides of the front and back without shielding.
  4. Internal metal parts are electrostatic sprayed with uniform color and elegant appearance.

Indexes:
  • Product size (mm) : 346 (length) ×297 (width) ×681 (height)
  • Max capacity: 144 core (single fiber)
  • Weight: 7.4 kg
  • Curvature radius of fiber: ≥40mm
  • Additional loss of ice tray: ≤0.01dB
  • The distance of installation hole: 260mm

Technical Specifications
Parameter
Model. GP(06)2 (splitting type)
Weight (Kg) 7.4
Cable Diameter(mm) Φ6~Φ12
Max splitting 1:16
Core Capacity 24 (single core)
