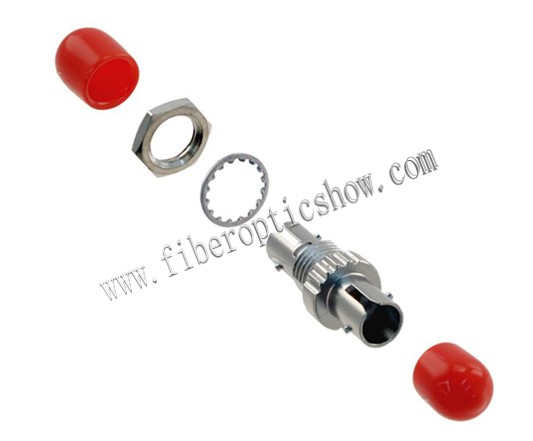

Silver ST Receptacle FC Fiber Optic Adapter Multimode Simplex Bulkhead Coupler Type
Silver ST Receptacle FC Fiber Optic Adapter Multimode Simplex Bulkhead Coupler Type
Specifications
Brand Name :
FOCC
Model Number :
FOCC - A009
Certification :
CE, ISO9001, RoHS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Delivery Time :
Delivery Time 5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Adapters Or Customized Requirements
Supply Ability :
8500 Pieces Of Capacity Per Month
Series :
AMP
Type :
Coupler
Convert :
ST Receptacle
Simplex / Duplex :
Simplex
Mode :
Singlemode; Multimode
Mounting Type :
Panel Mount; Bulkhead
Description

Silver ST Receptacle FC Fiber Optic Adapter Multimode Simplex Bulkhead Coupler Type

Briefly Speaking

Our Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. FOCC offering a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Applications

A cable to cable fiber optic connection;

Cable to equipment fiber optic connection.

Features


FC style to FC style;

Use in singlemode applications;

Free-hanging or panel-mount design;

Dust caps protect against debris and contamination;

RoHS Compliant.

Specifications

Environmental & Mechanical Data

Operating Temperature

- 40 to + 75º C

Storage Temperature

40 to + 85º C

Temperature Cycling (61300-2-18)

- 40 to + 75º C, 40 cycles = 0.2dB change

High temperature (61300-2-18)

70º C for 96Hrs, < 0.4dB change

Damp Heat (61300-2-19)

40º C at 93%RH for 96 Hrs, < 0.4dB change

Vibration-Mated Pair (61300-2-1)

10 - 55Hz, 1.5mm P to P < 0.2dB change

Mating Durability (61300-2-2)

500 Mating Cycles, clean every 25, < 0.2dB change


Optical Performance Data

Item

Singlemode

Multimode

PC

UPC

APC

62.5 / 125

50 / 125

50 / 125 10G

Insert Loss/Connector

(Single Fiber)

0.2dB Max. (0.15dB type)

0.3dB Max. (0.25dB type)

Return Loss

≥45 dB

≥50 dB

≥60 dB

N / A

Insert Loss/

MTRJ Connector

0.5dB Max. (0.45dB type)

0.5dB Max. (0.45dB type)

Pull Strength

≥98N


Design & Material

Adaptor Material

Zinc Alloy with nickel plating

Split Sleeve Material

Phosphor Bronze or Zirconia ceramic
(for Single mode applications)

Capillary Diameter tolerance (Single Mode)

126 ± 0.5μm

Capillary Diameter tolerance (Multimode)

127± 0.5μm

Operating Temperature

-40 to +85º C

Storage Temperature

-40 to +85º C

Mating Durability

>500 Mating Cycles

Silver ST Receptacle FC Fiber Optic Adapter Multimode Simplex Bulkhead Coupler Type

Silver ST Receptacle FC Fiber Optic Adapter Multimode Simplex Bulkhead Coupler Type

Notes:


Prices and specifications are subject to change without notice, FOCC is not responsible for typographical
or photographic errors, Please contact us at focc@fiberfocc.com for detailed inquiry!
