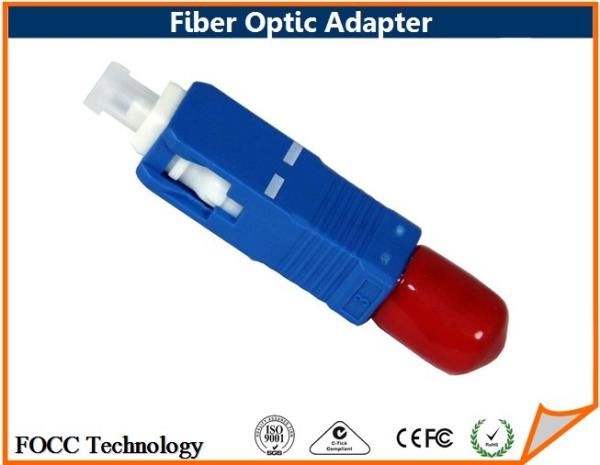

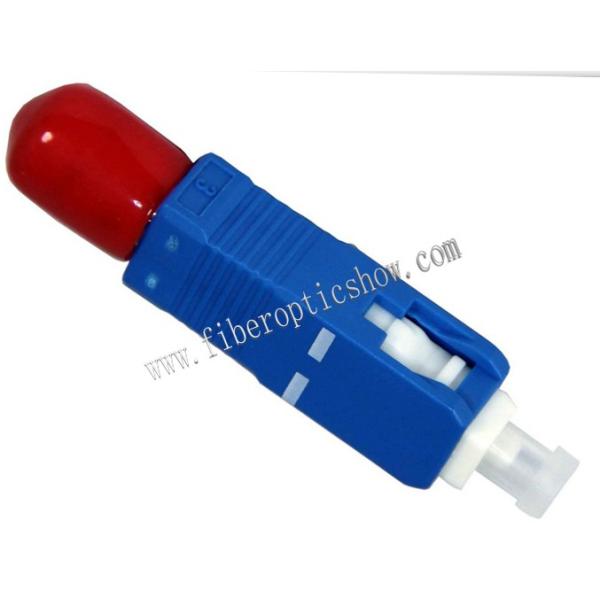

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode
Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode
Specifications
Brand Name :
FOCC
Model Number :
FOCC - A008
Certification :
CE, ISO9001, RoHS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Delivery Time :
Delivery Time 5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Adapters Or Customized Requirements
Fiber Count :
1
Material :
Metal
Adapter Series :
Hybrid Adapters
Fiber Type :
9/125μm Singlemode
Connector Type :
ST - SC
Ferrule Material :
Zirconia
Description

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Briefly Speaking

Our Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. FOCC offering a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Manufacturer

FOCC
Part No. FOCC - A008

Adapter Series

Hybrid Adapters

Fiber Type

9/125μm Singlemode

Connector Type

ST - SC

Ferrule Material

Zirconia

Fiber Count

1

Applications

A cable to cable fiber optic connection;
Cable to equipment fiber optic connection.

Features

ST style to SC style;

Use in singlemode applications;

Free-hanging or panel-mount design;

Dust caps protect against debris and contamination;

RoHS Compliant.

Environmental & Mechanical Data

Operating Temperature

- 40 to + 75º C

Storage Temperature

40 to + 85º C

Temperature Cycling (61300-2-18)

- 40 to + 75º C, 40 cycles = 0.2dB change

High temperature (61300-2-18)

70º C for 96Hrs, < 0.4dB change

Damp Heat (61300-2-19)

40º C at 93%RH for 96 Hrs, < 0.4dB change

Vibration-Mated Pair (61300-2-1)

10 - 55Hz, 1.5mm P to P < 0.2dB change

Mating Durability (61300-2-2)

500 Mating Cycles, clean every 25, < 0.2dB change

Specification

Zirconia Sleeves

Phospor Bronze

Insertion Loss

Typical ≦0.05dB; Max≦0.20dB

Typical ≦ 0.10dB

Durability

< 0.1dB Typical change,500 matings

Note: Zirconia tested with SMF Fiber, Phospor Bronze sleeve tested with MMF Fiber

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm SinglemodeHybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Shipping Terms

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

FOCC Fiber Optic Adapter Quality

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Notes:

Prices and specifications are subject to change without notice. FOCC is not responsible for typographical or photographic errors. Please contact us at focc@fiberfocc.com for detailed inquiry.
