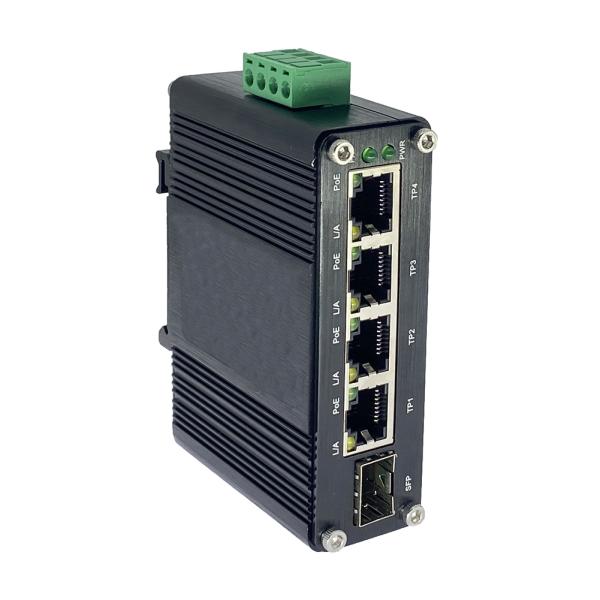

Industrial Gigabit PoE Switch 4 PoE Ports with Voltage Booster
Industrial Gigabit PoE Switch 4 PoE Ports with Voltage Booster
Industrial Gigabit PoE Switch 4 PoE Ports with Voltage Booster
Industrial Gigabit PoE Switch 4 PoE Ports with Voltage Booster
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC104GP-SFP Series
Certification :
CE/FCC/Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
US$29.9/pc
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/P,D/A
Supply Ability :
1000pcs/Month
Delivery Time :
2-7 days
Packaging Details :
Industrial Gigabit Ethernet Switch Standard export package
Input Power: :
12~48V DC (Terminal Block)
Power Consumption: :
<125W (Non-PoE<6W)
Size :
95 x 70 x 29 mm
Mounting Options :
DIN-Rail / Wall-mount
Weight: :
0.25Kg
Casing :
Aluminum Case
Description

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch
with 12~48VDC Input and Voltage Booster

Mini Industrial 5-Port Switch with Voltage Booster Overview


Mini Industrial 4-Port Gigabit PoE + 1-Port SFP Ethernet Switch with Voltage Booster

This compact unmanaged industrial Ethernet switch features 4 Gigabit PoE ports (802.3at) and 1 Gigabit SFP fiber port, powered by a wide-range 12~48VDC input with built-in voltage booster.

Engineered to meet stringent industrial standards, the switch offers robust performance against vibration, shock, and extreme temperatures. It is CE and FCC certified, and passes a full 100% burn-in test to ensure long-term reliability in harsh environments.

Ideal for industrial networking applications such as solar power systems, remote monitoring, transportation, and smart infrastructure, this switch delivers cost-effective and dependable Ethernet connectivity.


Mini Industrial 5-Port Switch with Voltage Booster Features


  • Auto-detecting 100/1000BASE-X SFP slots

  • 4× 10/100/1000BASE-T RJ45 ports (Ports 1-4 support IEEE 802.3at PoE+ injection) with auto-MDI/MDI-X

  • Wide-range 12~48VDC input with power booster

  • Supports 802.3x flow control

  • DIN-rail and wall-mount installation

  • High PoE budget:
     - 120W (48VDC)
     - 90W (24VDC)
     - 60W (12VDC)

  • Industrial IP40-rated dustproof metal housing

  • Operating temperature: -40°C to 80°C (-40°F to 176°F)



Mini Industrial 5-Port Switch with Voltage Booster Technical Indexes


Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
Connector: 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Interface
Connector: 4 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR: Power
L/A: Link/Activity
PoE: PoE Status
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


Mini Industrial 5-Port Switch with Voltage Booster Order Information

Model Description
LNK-IMC104GP-SFP Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
Mini Industrial 5-Port Switch with Voltage Booster Application
Industrial Gigabit PoE Switch 4 PoE Ports with Voltage Booster

After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service,

providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
