Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE++ + 2-Port Fiber Switch
Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE++ + 2-Port Fiber Switch
Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE++ + 2-Port Fiber Switch
Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE++ + 2-Port Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC202GP90-SFP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Industrial Ethernet PoE Switch Standard Export Package
Ports :
2 × RJ45 (10/100/1000T PoE++), 2 × Fiber (1000Base-X, SFP/SC/ST/FC optional)
Standards :
IEEE802.3 10/100/1000T, IEEE802.3u/ab/z, IEEE802.3af/at/bt PoE, IEEE802.3x, IEEE802.3az EEE
Processing Type :
Store-and-Forward
Power Input :
48~57VDC (Terminal Block); Max Consumption: 189W
PoE Output :
Up to 90W per RJ45 port (IEEE802.3bt)
Housing :
IP40 aluminum case; DIN-Rail / Wall-mount
Description

Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE++ + 2-Port Fiber Switch

Overview

The LNK-IMC202GP90 Series is a rugged mini industrial Ethernet switch with two

10/100/1000BASE-T ports delivering up to 90W PoE++ per port (IEEE802.3bt), and two

1000Base-X fiber ports compatible with SFP/SC/ST/FC modules. Supporting link fault

pass-through, full/half-duplex auto-negotiation, IEEE802.3az EEE, and redundant 48~57VDC

power input, this switch ensures high-power, reliable connectivity in harsh industrial

environments. Its compact IP40 aluminum case, DIN-Rail or wall-mount installation, and

-40°C to +80°C operating temperature make it ideal for powering and networking IP

cameras, wireless access points, and other high-power devices.

Features

2 × 10/100/1000BASE-T RJ45 ports with IEEE802.3af/at/802.3bt PoE (15.4–90W per port)

2 × 1000Base-X fiber ports, compatible with SFP/SC/ST/FC modules

Link Fault Pass Through (LFP) support

Full/Half-duplex auto-negotiation

IEEE802.3az Energy Efficient Ethernet (EEE)

Jumbo frame support up to 9K Bytes

Wide-range 48~57VDC terminal block power input with power booster function

Rugged IP40 aluminum housing

DIN-Rail and wall-mount installation

Operating temperature: -40°C to +80°C

Compact design: 95 × 70 × 30 mm; Weight: 0.25kg

MTBF > 200,000 hrs

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

2 x SFP/SC/ST/FC 1000Base-X

Electrical and Mechanical

Input Power:

48~57VDC, 4-pin terminal block

Power Consumption:

189W Max.

LED Indicators:

PoE:

PD Plug Status

PWR:

Power Status

RJ45:

LINK/Activity

SFP:

LINK

General

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC202GP90 Series

Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 1000Base-X SFP/SC/ST/FC Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

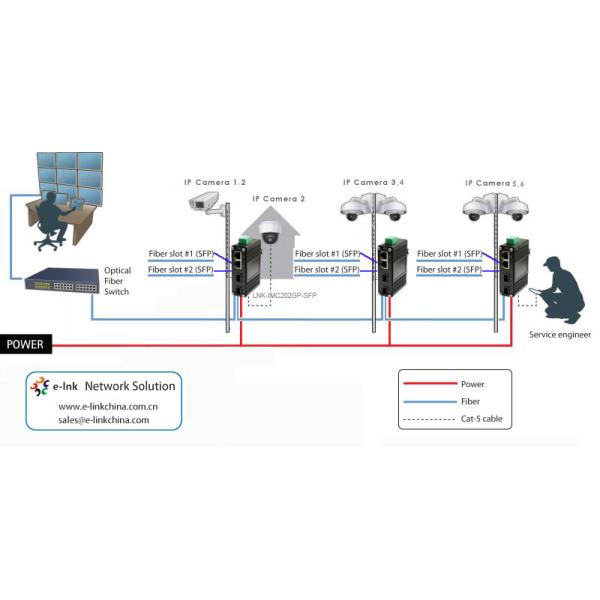

Application
