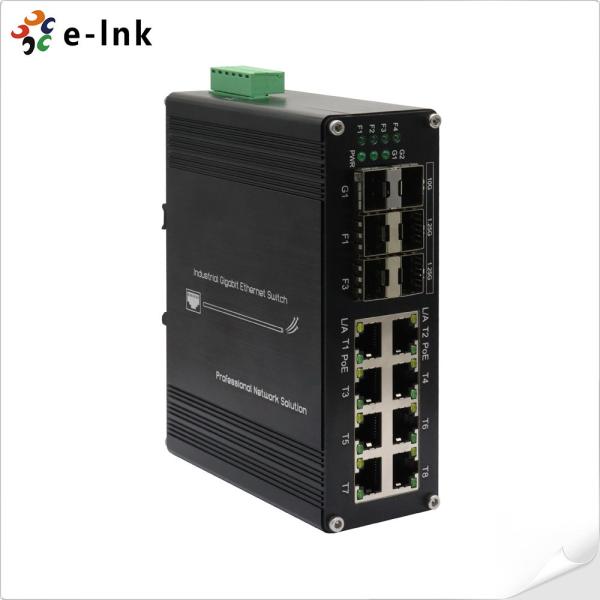

Industrial 8 Port PoE Switch with 4 SFP and 2 10G SFP+ Ports Rugged Design
Industrial 8 Port PoE Switch with 4 SFP and 2 10G SFP+ Ports Rugged Design
Industrial 8 Port PoE Switch with 4 SFP and 2 10G SFP+ Ports Rugged Design
Industrial 8 Port PoE Switch with 4 SFP and 2 10G SFP+ Ports Rugged Design
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC2X4S8GP Series
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 PC
Price :
US$69-79
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Industrial 8-Port SFP Ethernet Switch Standard Export Package
Processing Type :
Store-and-Forward
Optical Port: :
4 x 1000Base-X SFP/2 x 10G Base-SR/LR SFP+
Input Power :
48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH) :
149 x 114x 50 mm
Connector :
8x RJ45
Weight :
0.55KG
Description

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch


Industrial 8-Port PoE Ethernet Switch Overview

This industrial-grade Ethernet switch features 8× 10/100/1000Base-T PoE ports, 4× 1000Base-X SFP ports, and 2× 10G SFP+ ports. Each RJ45 port supports IEEE 802.3at PoE+, Full/Half duplex, and auto MDI/MDI-X.

The 4 Gigabit SFP ports support single-mode or multi-mode fiber (1-core or 2-core), and the 2 10GBase-SR/LR SFP+ ports support high-speed fiber uplinks, making it ideal for high-bandwidth remote applications.

With a rugged hardened design, it ensures stable performance in harsh environments, perfect for IP surveillance, wireless APs, and remote fiber networks.

Industrial 8-Port PoE Ethernet Switch Features


► 8× 10/100/1000BASE-T RJ45 ports + 6× 1000BASE-X SFP slots

► Auto-negotiation, auto MDI/MDIX, and full/half-duplex support on all RJ45 ports

► Compliant with IEEE 802.3af/at PoE standards

► Supports 802.3x flow control and 9KB jumbo frames

► Dual redundant power inputs

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40-rated aluminum housing

► DIN-rail mountable

► Wide operating temperature: -40°C to 80°C (-40°F to 176°F)


Industrial 8-Port PoE Ethernet Switch Technical Indexes


Ethernet
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3p QoS
IEEE802.1d Spanning Tree
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 2.75M bits
Processing Type: Store-and-Forward
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Connector: 8 x RJ45
Optical Port: 6 x 1000Base-X SFP
PoE (Power over Ethernet)
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
ort: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 240-watt PoE budget
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.(PoE in Use<240W)
Protection:
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
LED Indicators:
Power: Power Status
Ethernet(Per Port): Link/Activity
PoE (Optional) PoE Status
Fiber: Gigabit SFP Port: F1~F6
Dimensions (WxDxH): 149 x 114 x 50 mm
Weight: 0.55Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


Industrial 8-Port PoE Ethernet Switch Ordering Information


Model Description

LNK-IMC2X4S8GP

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.

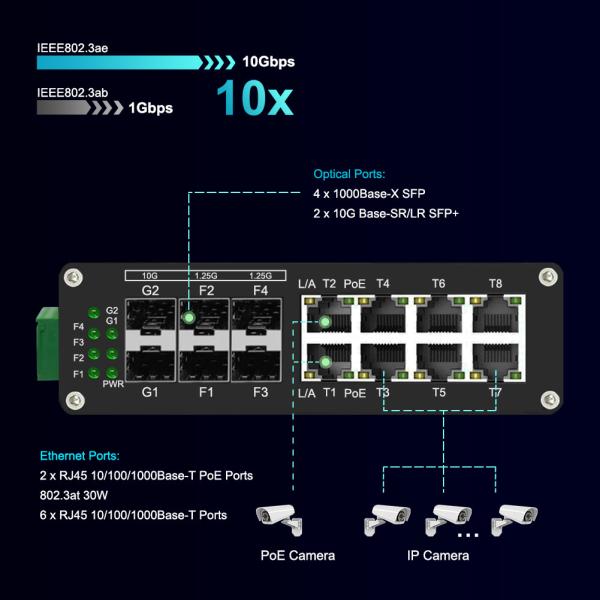

Industrial 8-Port PoE Ethernet Switch Application


Industrial 8 Port PoE Switch with 4 SFP and 2 10G SFP+ Ports Rugged Design


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service,

providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
