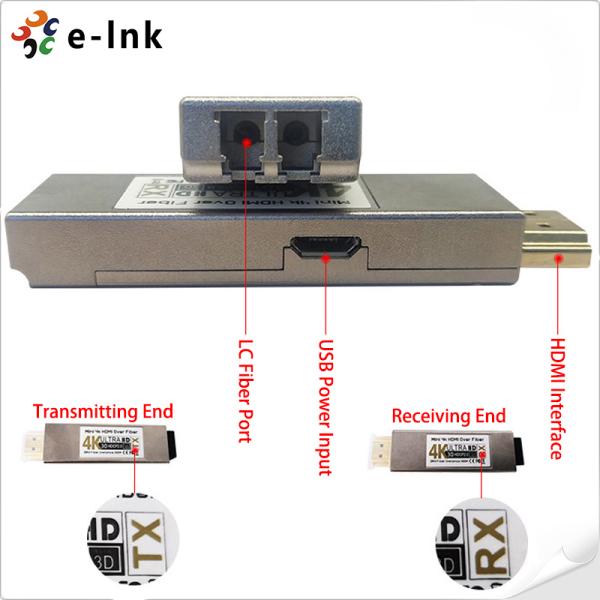

Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input
Specifications
Brand Name :
E-link
Model Number :
LNK-106M
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
HDMI Over Fiber Optic Extender Standard Export Package
Input Signals :
HDMI
Dynamic EDID :
Plug & Play, no need to learn
Fiber Connector :
Double LC Receptacle
Safety Approvals :
CE, RoHS, FCC
Dimension (WxDxH) :
3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight :
0.1 kg / 0.22 lb
Description

Mini 4K HDMI Optical Transceiver

Overview

Our high-performance HDMI optical transceiver system delivers uncompressed 4Kx2K (HDMI 1.4a)

signals over multimode fiber with zero quality loss. The solution consists of matched transmitter (Tx)

and receiver (Rx) units that convert HDMI to optical signals at 850nm wavelength, supporting

transmission distances up to 300 meters.

Key Features:
- True 4K UHD transmission @ 3840x2160 resolution
- 10Gb/s high-speed serial data conversion
- Dual-fiber multimode transmission (850nm)
- RoHS compliant (meets EU/China standards)
- Superior EMI/RFI immunity

Technical Advantages:
• Lossless, uncompressed signal quality
• Plug-and-play operation
• Compact, durable enclosure

Ideal Applications:
✓ Digital signage & video walls
✓ Professional AV systems
✓ Conference room installations
✓ Home theater extensions

This reliable fiber optic solution eliminates signal degradation over long distances while maintaining

perfect 4K image quality, making it perfect for demanding professional and residential AV installations.

Features

HDMI 1.4a and HCCP1.2 Support

Supports All Modes up to 4K*2K@30Hz Resolution

Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

Video over (2) multimode fibers

Hot-Pluggable, EMI/RFI Resistant

Technical Indexes

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Signal Support HDMI 1.4a HDMI format standard and HDCP compliant
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications Color space 444, 420, 400
Dynamic EDID Plug & Play, no need to learn
Fiber Connector Double LC Receptacle
Transmission Distance Multi Mode, up to 984ft (300M)
Operating Temperature 0°C to + 50°C
Storage Temperature -20°C to + 85°C
Humidity to 90% RH (non-condensing)
Safety Approvals CE, RoHS, FCC
Dimension (WxDxH) 3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight 0.1 kg / 0.22 lb
Operation Voltage 5VDC
Power Supply Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

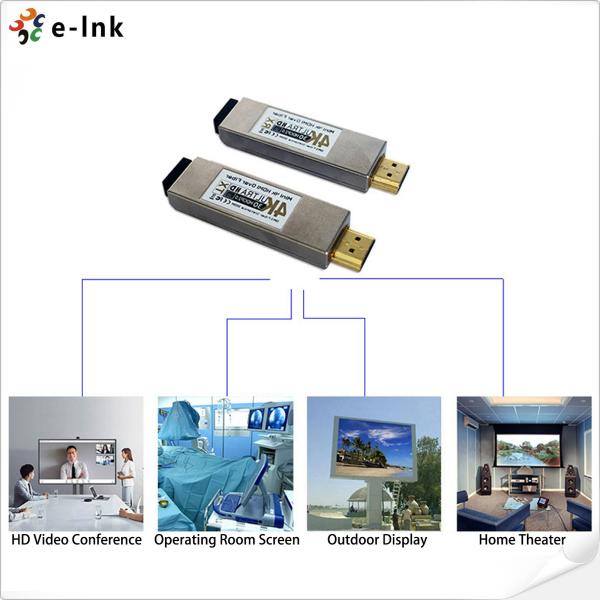

Application

Micro 4K HDMI Optical Transceiver with Double Power Supply USB Power Input

Ordering Information

Item Description
LNK-106M Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
