100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P
100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P
100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P
100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P
Specifications
Brand Name :
E-link China
Model Number :
LNK-H4K100
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Payment Terms :
T/T, Western Union, MoneyGram, L/C, Paypal
Supply Ability :
1000000000pairs/month
Delivery Time :
3-5 working days
Packaging Details :
1 pair in 1 carton; Support OEM Service
Video Standards :
HDMI 1.4; HDCP 1.2
Maximum pixel clock :
340MHz
Maximum data rate :
10.2Gbps
Resolution range :
Up to 3840*2160@30Hz
Connector :
Female HDMI type A
Impedance :
100Ω
Interface :
SFP model – LC connector
Fiber type :
Multi-mode / single-mode (optional)
Interface bandwidth :
10Gbps
Power supply :
DC 5V/2A
Description

100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P

100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P

Technical Indexes

Parameter Description
Video Standards HDMI 1.4; HDCP 1.2
Maximum pixel clock 340MHz
Maximum data rate 10.2Gbps
Resolution range Up to 3840*2160@30Hz
Connector Female HDMI type A
Impedance 100Ω
Optical fiber Interface SFP model – LC connector
Fiber type Multi-mode / single-mode (optional)
Wavelength

Multi-mode 850nm /

Single-mode 1310nm(optional)
Interface bandwidth 10Gbps
Transmission distance

OM3 multi-mode fiber: maximum 300m,

Single-mode fiber: standard 2km；maximum 60km
Other Power supply The power adapter: DC 5V/2A
Power dissipation Max 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 104*89*28mm

Overview

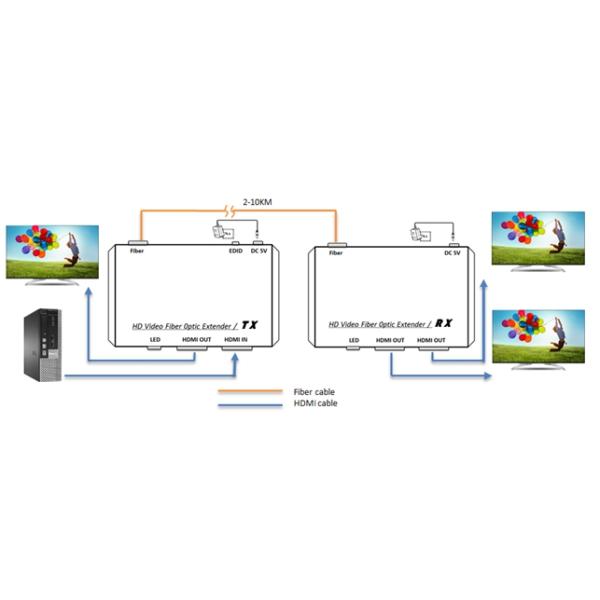

The LNK-H4K100 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

  • Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
  • Support video resolution up to 3840*2160@30Hz, 3D signal;
  • Compliance with HMDI 1.4 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

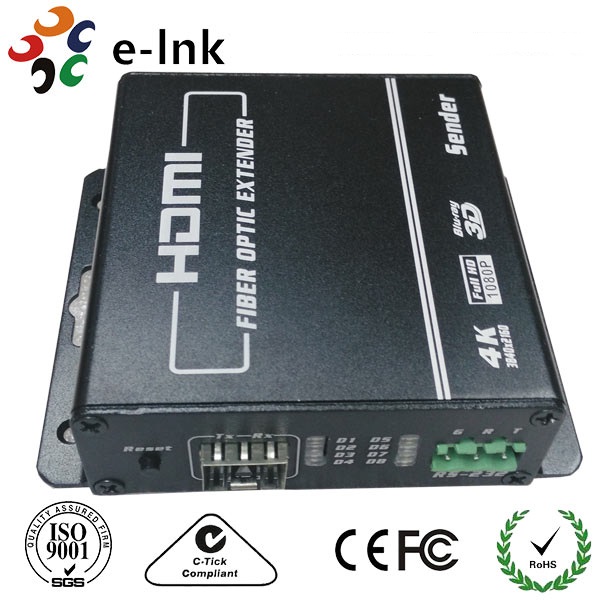

Port name Description
HDMI IN/OUT HDMI signal input/output
RESET System reset button
POWER Power adapter socket
SFP SFP model --- LC connector

RS-232

(RS-232 standard)

 Non-support
LED indicator Description
D1 System power indicator
D2

SENDER: Sink plug in and RECEIVER Optical input is ok

RECEIVER: Reserve
D3

Optical fiber signal connection indicator

ON: LOS OFF: OK
D4 Source plug in
D5 Reserve
D6 Reserve
D7 Reserve
D8 Reserve

100Ω Impedance 4K EDID, SFP Port HDMI Over Fiber Optic Extender 3840*2160/30P

Ordering Information

Item Description
LNK-H4K100 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port (Excl. SFP), including 1 transmitter & 1 receiver, used by pairs
