Specifications
Brand Name :
E-link
Model Number :
LNK-H4K100
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Standards :
HDMI 1.4; HDCP 1.2
Power dissipation :
Max 4W
Dimension (LxWxH) :
104*89*28mm
Optical fiber Interface :
SFP model – LC connector
Resolution Range :
Up to 3840*2160@30Hz
Power Supply :
The power adapter/DC 5V/2A
Description

4K HDMI Fiber Optic Extender

Overview

This fiber optic HDMI extender delivers ultra-long-distance transmission of HDMI and 3D signals over a single fiber optic cable. Supporting resolutions up to 3840×2160@30Hz (4K), it ensures stable performance and enhanced security, making it ideal for applications requiring high-quality video over extended distances in demanding environments.

Features

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4 & HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Technical Indexes

Parameter Description
Video Standards HDMI 1.4; HDCP 1.2
Maximum pixel clock 340MHz
Maximum data rate 10.2Gbps
Resolution range Up to 3840*2160@30Hz
Connector Female HDMI type A
Impedance 100Ω
Optical fiber Interface SFP model – LC connector
Fiber type Multi-mode / single-mode (optional)
Wavelength

Multi-mode 850nm /
Single-mode 1310nm(optional)
Interface bandwidth 10Gbps
Transmission distance

OM3 multi-mode fiber: maximum 300m,
Single-mode fiber: standard 2km；maximum 60km
Other Power supply The power adapter: DC 5V/2A
Power dissipation Max 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 104*89*28mm


Ordering Information

Item Description
LNK-H4K100 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-10 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-40 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs

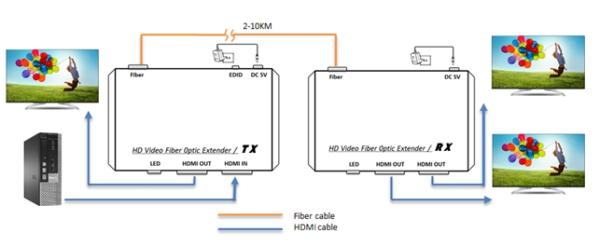

Application
