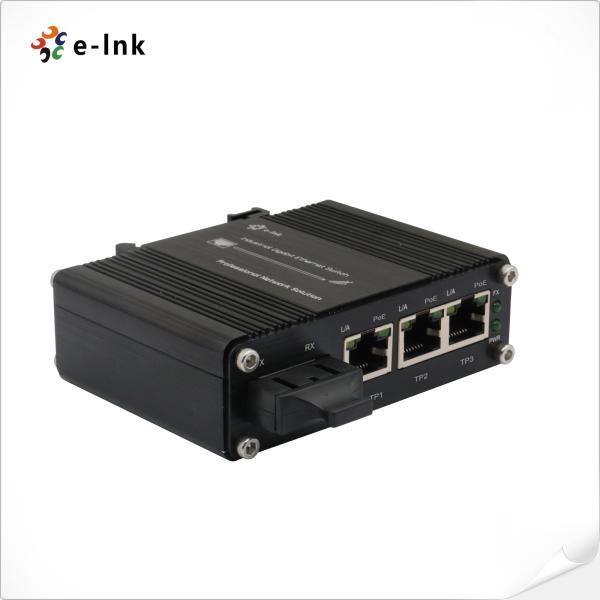

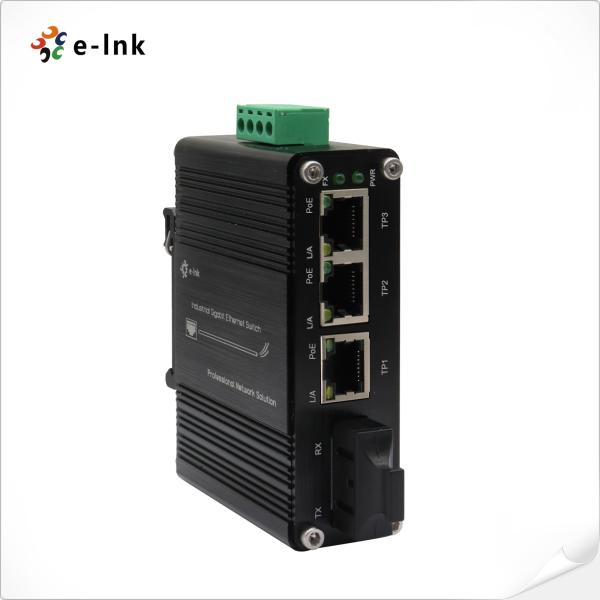

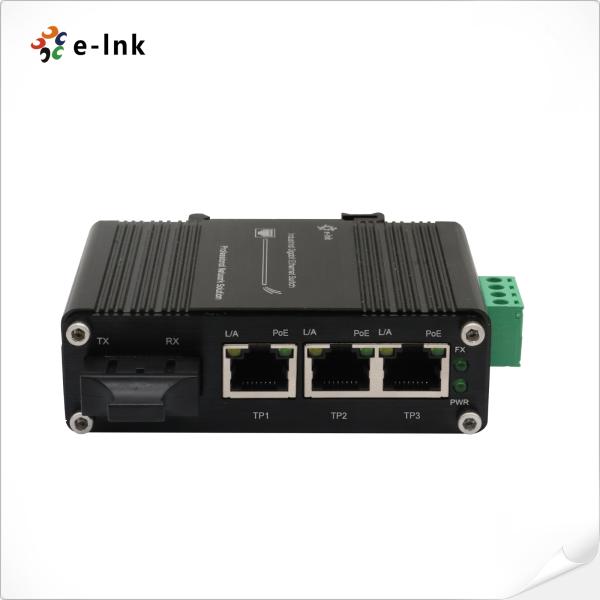

Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Compact Industrial PoE+ Ethernet Switch with Voltage Booster and SC Port 90W
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC103GP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
USD $52-75
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Solar-Powered Industrial PoE Switch Standard Export Package
Product Name :
Industrial 3-Port 10/100/1000T PoE + 1-Port 100/1000X SC Ethernet Switch
Connector :
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Input Power :
12~48VDC, 2-pin terminal block
Optical Port :
1 x SC 1000Base-X
Power Consumption :
<95W (Non-PoE<6W)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.3Kg
Casing :
Aluminum Case
Description

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SC Ethernet Switch with 12~48VDC Input and Voltage Booster


Mini Industrial Solar Power PoE Switch Overview


The LNK-IMC103GP Series is a Mini Industrial Unmanaged Gigabit PoE Switch designed

for harsh industrial environments and solar-powered applications. It features 3 10/100/1000BASE-T RJ45 PoE+ ports

compliant with IEEE 802.3at, and 1 SC-type 1000Base-X fiber port, enabling long-distance fiber uplink connectivity.

The switch is able to operate efficiently even in low-voltage power scenarios, such as solar energy systems,

thanks to its support for 12~48VDC wide voltage input and a built-in voltage booster.

With a total Power over Ethernet (PoE) power budget of up to 90 watts, this product is ideally suited for

powering Internet Protocol (IP) cameras, wireless access points, or the Internet of Things (IoT) devices

directly through Ethernet cables.

The product has been constructed in a rugged IP40-rated aluminium housing, which offers excellent

vibration and shock resistance. It functions reliably in extreme temperatures ranging from -40°C to +75°C.

The switch has been certified by CE and FCC, and has passed a 100% burn-in test,

ensuring long-term reliability in critical applications such as surveillance, industrial automation,

and outdoor connectivity.

This compact, DIN-rail or wall-mountable switch is an affordable and dependable networking solution

for edge deployments in the energy, transportation, and smart city environments.


Mini Industrial Solar Power PoE Switch Features

LNK-IMC103GP-SFP present the following features:

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

► 1 1000Base-X SC Port

► 12~48VDC wide range power input with power booster function

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Mini Industrial Solar Power PoE Switch Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

4 Mbit

Switch Fabric:

12Gbps

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)

Optical Port:

1 x SC 1000Base-X or 100Base-FX (auto detection)

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

<95W (Non-PoE<6W)

LED Indicators:

PWR:

Power Status

L/A:

Ethernet LINK Status

FX:

Fiber LINK Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.3Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Mini Industrial Solar Power PoE Switch Ordering Information

Model

Description

LNK-IMC103GP

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m

LNK-IMC103GP-20

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km

LNK-IMC103GPS-20A

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km

LNK-IMC103GPS-20B

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km

Mounting Options

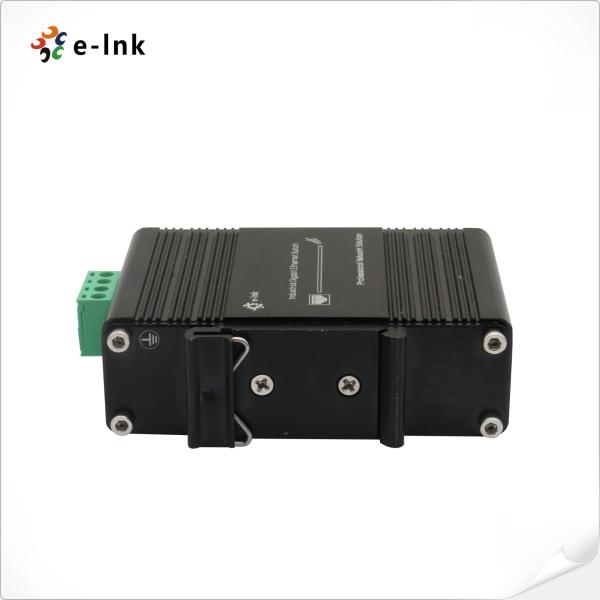

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 12~48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.


Mini Industrial Solar Power PoE Switch Application
