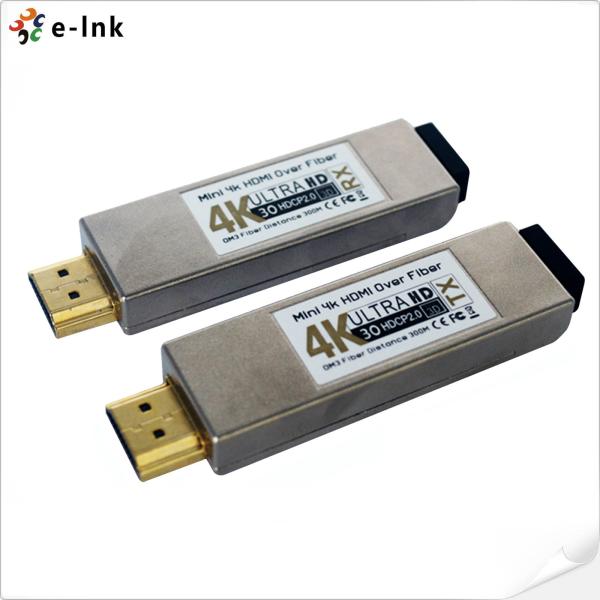

4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability
4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability
4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability
4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability
Specifications
Brand Name :
E-link
Model Number :
LNK-106M
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
$129-$169
Payment Terms :
T/T,Western Union,MoneyGram,paypal
Supply Ability :
1000PCS/Month
Delivery Time :
5-8 working days
Packaging Details :
Fiber Optic Extender Standard express packaging
Resolution Support :
Up to 4Kx2K (3840x2160)
Transmission Distance :
Up to 300m (Multimode Fiber)
Wavelength :
850nm
Bandwidth :
10Gbps
Fiber Type :
Dual-core multimode optical fiber
Applications :
Home entertainment, conference systems, digital signage, large-screen display
Description

4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability

Overview

The 4K HDMI Optical Transceiver is a compact HDMI-over-fiber solution that enables

uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber.

Supporting distances up to 300 meters at 850nm wavelength, it delivers stunning 4Kx2K

resolution. The transmitter module (Tx) converts the HDMI signal into a 10Gbps optical

stream, while the receiver module (Rx) restores it to HDMI format. Engineered for

high-performance AV distribution, the transceivers are RoHS compliant, lead-free, and ideal

for large displays, conferencing systems, and home theaters. Its robust design ensures

strong anti-interference performance and stable signal delivery.

Features

Supports HDMI 1.4a standard with uncompressed and lossless transmission

Transmits 4Kx2K resolution over multimode fiber up to 300 meters

Operates over dual optical fibers at 850nm with 10Gbps bandwidth

Strong anti-interference performance for signal stability

Plug-and-play design with no software configuration required

Technical Indexes

Type of Extender

Fiber Transmitter for HDMI signal over Optical Fiber Cable

Input Signals

HDMI

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Website Specifications

Color space 444, 420, 400

Dynamic EDID

Plug & Play, no need to learn

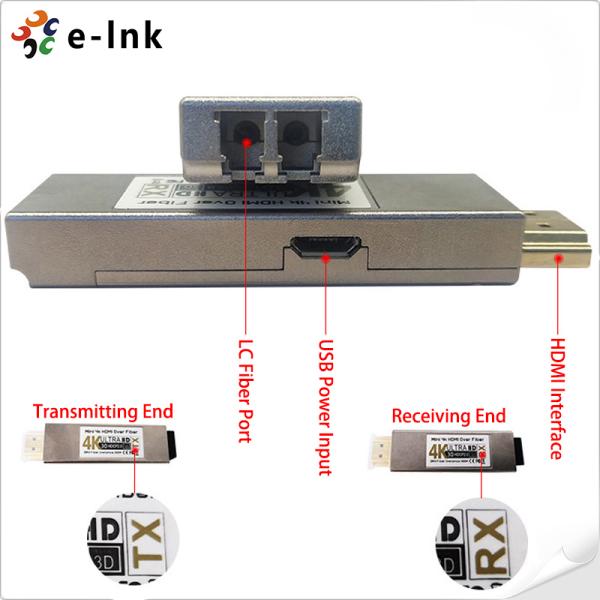

Fiber Connector

Double LC Receptacle

Transmission Distance

Multi Mode, up to 984ft (300M)

Operating Temperature

0°C to + 50°C

Storage Temperature

-20°C to + 85°C

Humidity

to 90% RH (non-condensing)

Safety Approvals

CE, RoHS, FCC

Dimension (WxDxH)

3.15 x 0.79 x 0.35 in (80x20x9mm)

Weight

0.1 kg / 0.22 lb

Operation Voltage

5VDC

Power Supply

Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Ordering Information

Item

Description

LNK-106M

Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input

Application

4K UHD HDMI Optical Transceiver 300m Lossless Transmission with Stability
