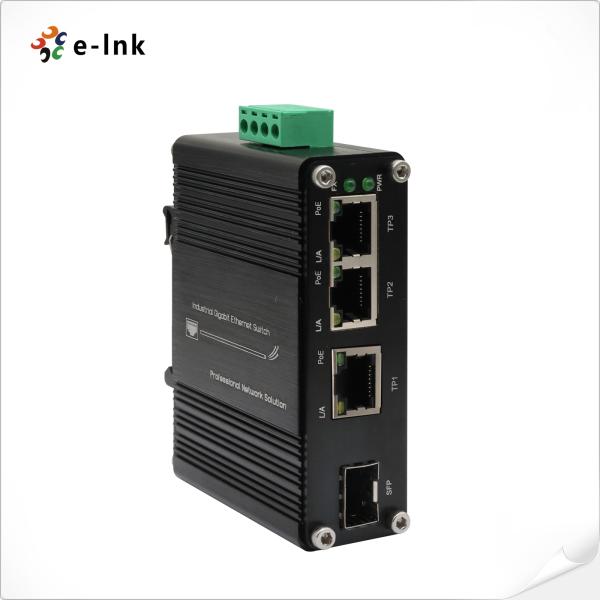

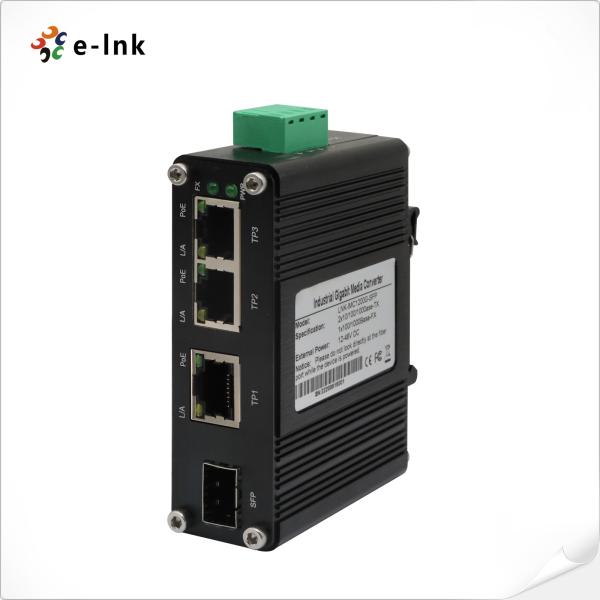

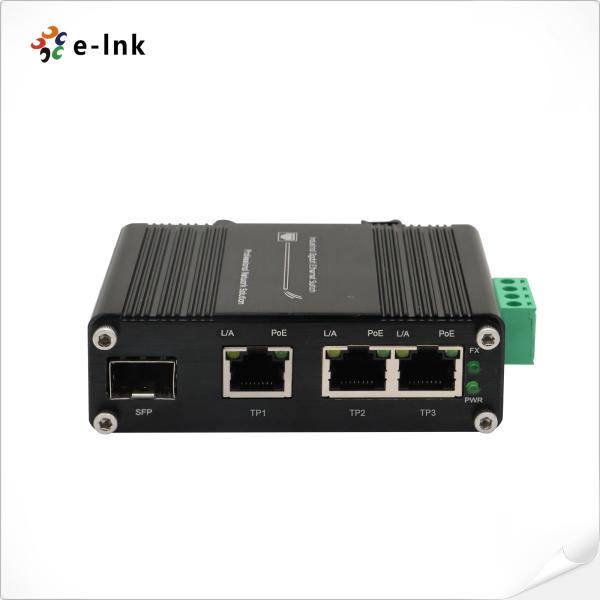

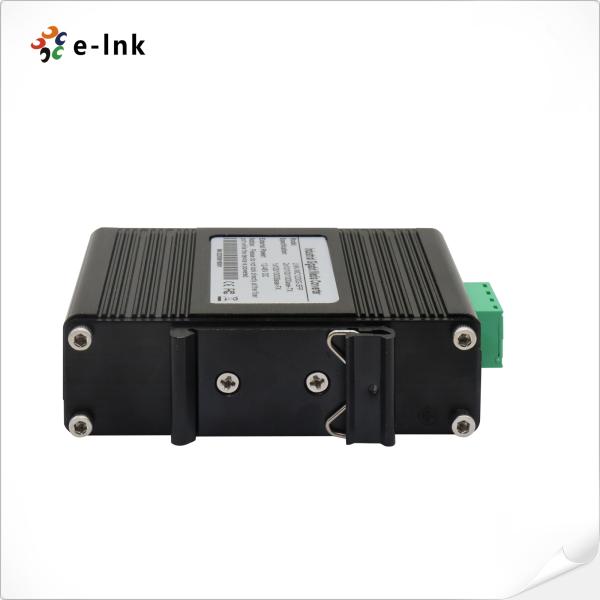

Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Solar-Powered Industrial PoE Switch with Wide Temp and Voltage Booster DIN Rail
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC103GP-SFP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
USD $52-75
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Solar-Powered Industrial PoE Switch Standard Export Package
Product Name :
Industrial 3-Port 10/100/1000T PoE + 1-Port 100/1000X SFP Ethernet Switch
Dimensions (WxDxH) :
95 x 70 x 30 mm
Input Power :
12~48VDC, 2-pin terminal block
Power Consumption :
<95W (Non-PoE<6W)
Weight :
0.3Kg
Mounting Options :
DIN-Rail / Wall-mount
Description

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster


Mini Industrial Solar Power PoE Switch Overview


The LNK-IMC103GP-SFP Series is a Mini Industrial 3-Port 10/100/1000T PoE Switch

with 1-Port 100/1000X SFP Uplink, featuring IEEE 802.3at PoE, 12~48V DC wide input voltage,

and a built-in voltage booster. This unmanaged industrial PoE switch is specially designed

for solar-powered or low-voltage applications in harsh environments.Engineered for use

in challenging conditions, it offers protection against vibration and shock, operates

within a wide temperature range of -40°C to +75°C, and meets CE and FCC industrial standards.

Each unit undergoes a rigorous 100% burn-in test, ensuring long-term reliability

and stable performance in mission-critical deployments such as IP surveillance, smart city infrastructure,

and remote industrial monitoring


Mini Industrial Solar Power PoE Switch Features

LNK-IMC103GP-SFP present the following features:

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC wide range power input with power booster function

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Mini Industrial Solar Power PoE Switch Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

4 Mbit

Switch Fabric:

12Gbps

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

<95W (Non-PoE<6W)

LED Indicators:

PWR:

Power Status

L/A:

Ethernet LINK Status

FX:

Fiber LINK Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.3Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Mini Industrial Solar Power PoE Switch Ordering Information

Model

Description

LNK-IMC103GP-SFP

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 12~48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.


Mini Industrial Solar Power PoE Switch Application
