Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 36VDC

Industrial Gigabit PoE Splitter Overview

The LNK-INS901-36V series is an industrial-grade Gigabit Ethernet PoE splitter.

It transmits data via an RJ-45 Ethernet port and provides power to non-PoE devices

via screw terminals. This device is fully compliant with the IEEE802.3af/at/bt standards,

so you can use it with a standard PoE switch or the LNK-INJ-48-95W PoE injector.

It will deliver up to Gigabit data rates while simultaneously operating with 36V DC power output

over distances of up to 100 metres. Its plug-and-play design requires no additional configuration,

enabling flexible installation and is suitable for high-reliability industrial network environments,

effectively reducing cabling and power costs.

Industrial Gigabit PoE Splitter Features

• Power and Data Separation – Splits electrical power and data

• from a single PoE input for non-PoE devices.

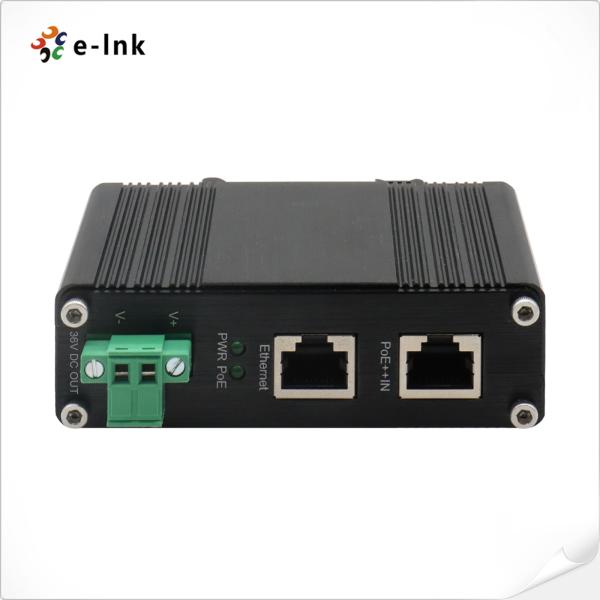

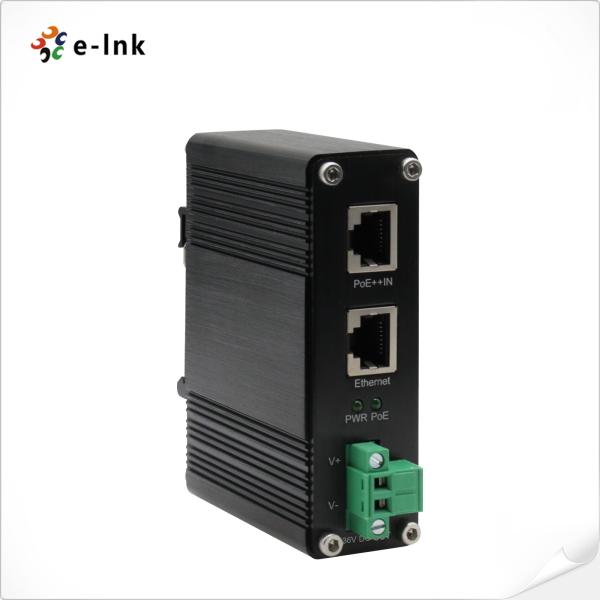

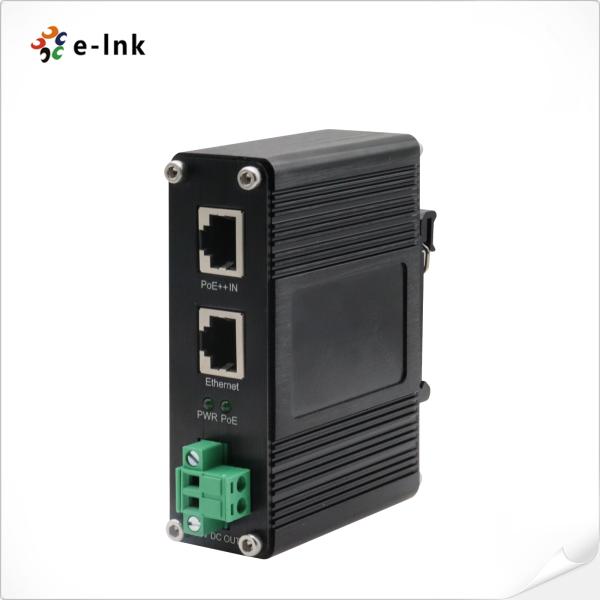

• PoE Input Port – One RJ-45 PoE port for combined data and power input.

• Data Output Port – One RJ-45 port dedicated to high-speed data output.

• 36VDC Power Output – 2-pin terminal block providing stable 36VDC output.

• Wide PoE Compatibility – Supports IEEE 802.3af/at/bt (PoE++).

• High-Speed Networking – Supports 10/100/1000Base-T Ethernet connections.

• Long-Distance Transmission – Operates up to 100 meters over Ethernet cable.

• Built-in Protection – Short-circuit protection ensures safe power delivery.

• Industrial-Grade Design – IP40 rugged metal housing with fanless operation.

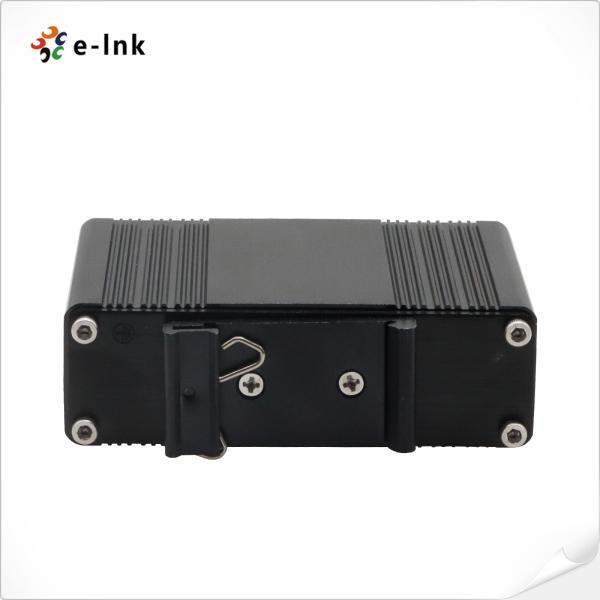

• Flexible Mounting – Supports both DIN-rail and wall-mount installation.

• Status Monitoring – Multiple LED indicators for real-time PoE diagnostics.

• Extreme Temperature Tolerance – Reliable operation from -40°C to +80°C.
