Specifications
Brand Name :
E-link
Model Number :
LNK-INS301-12V
Certification :
CE/FCC/Rohs
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000 per Month
Delivery Time :
3-10 working days
Packaging Details :
Gigabit Ethernet PoE Splitter Standard export package
Power Output :
20W 12VDC (Terminal Block)
Power Consumption :
25W Max
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Casing :
Aluminum case
Mounting :
DIN-Rail/Wall-mount
Description

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 12VDC

Overview
The LNK-INS301-12V Series is an industrial-grade Gigabit Ethernet PoE splitter designed to provide data

through an RJ-45 connector and 12VDC power via a screw terminal block for non-PoE devices. It eliminates

the need for separate power cabling, reducing installation costs. Acting as a PD device, it can be powered by

IEEE802.3af/at PoE switches or paired with LNK-INJ301 PoE injectors. Supporting up to Gigabit speeds and

delivering 12VDC output over distances up to 100 meters, this plug-and-play splitter requires no configuration,

offering easy installation, flexibility, and high reliability for industrial environments.

Features

► Splits power and data from PoE Input

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► One 12VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at PoE

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Ethernet
Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Interface: “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 2 x RJ-45 10/100/1000Base-T
DC Out/In Plug Connector: 1 removable 5-Pin terminal block
Power over Ethernet
PoE Standard: IEEE 802.3af/at Power over Ethernet
Number of devices that can be powered:

1 (DC12V)

(Vary on device’s power requirement; cannot be over 20 watts.)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Power Output: 20W 12VDC (Terminal Block)
Power Consumption: 25W Max.
LED Indicators:
PWR:

12VDC Power OUT
POE:

PoE Power IN
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
Dimension & Size
LNK-INS301-12V PoE Splitter for Non-PoE Devices with Gigabit Data Support
Ordering Information

Model Description
LNK-INS301-12V Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 12VDC, maximum output of 20W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

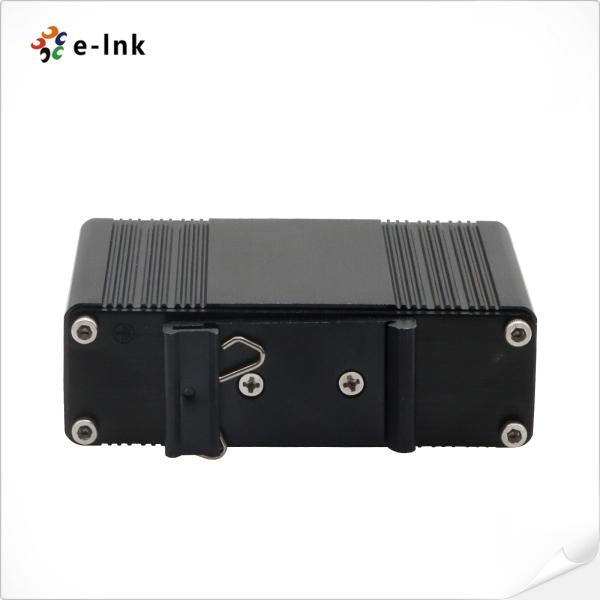

Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Application
LNK-INS301-12V PoE Splitter for Non-PoE Devices with Gigabit Data Support
