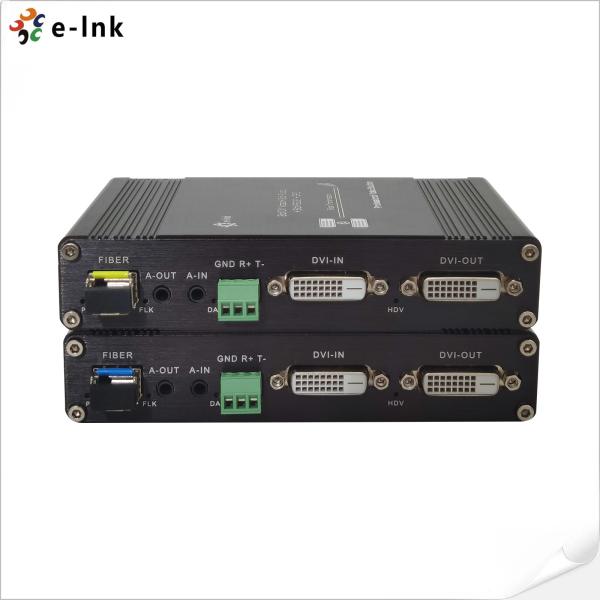

Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km
Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km
Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km
Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km
Specifications
Brand Name :
E-link
Model Number :
LNK-B-DVI-1DA1GO
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
$259-$285
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
DVI Video to Fiber Converter Standard Export Package
Video Resolution :
Up to 1920×1200@60Hz
Video Interface :
DVI-D
Audio Interface :
3.5mm stereo jack
Fiber Type :
Single-mode, single fiber
Transmission Distance :
Standard 10km, max 20km
Operating Temperature :
-5℃ to +70℃
Dimensions :
148×115×28mm
Connector Type :
LC for fiber, industrial terminals for GPIO/RS232
Description

Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km

Overview

This fiber optic extender delivers long-distance, bi-directional transmission of DVI video,

stereo audio, and RS232 signals over a single optical fiber. Supporting resolutions up to

1920×1200@60Hz and transmission distances up to 20km, it ensures stable, high-quality

performance. Designed for plug-and-play deployment, it’s ideal for broadcasting, control

rooms, medical imaging, and other professional AV applications requiring secure and

interference-free connectivity.

Features

Supports bi-directional DVI video transmission up to 1920×1200@60Hz

Transmits stereo audio and RS232 signals over one single-mode fiber

Transmission distance up to 20km via LC connector

Built-in auto-adjustment and ESD protection for stable performance

Supports GPIO signal transmission via industrial terminal

Self-adaptive RS232 baud rate up to 115200bps

Plug and play, no driver required

Compact metal design with wide operating temperature range (-5℃ to +70℃)

Technical Indexes

Parameter

Description

Video

Standards

DVI 1.0; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

2.97Gbps

Resolution

1920*1200@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz

Connector

DVI-D

Impedance

100Ω

Audio

Interface

3.5mm earphone seat

Signal type

Stereo

GPIO

Interface

Industrial terminal

RS232

Interface

Industrial terminal

Signal direction

Bi-directional

Baud rate

Self-adaptive, Max:115200bps

Data bits

8

Optical fiber

Interface

LC connector

Fiber type

Single-mode single fiber

Wavelength

Single-mode 1310nm

Interface bandwidth

3Gbps

Transmission distance

standard 10km

Other

Power supply

The power adapter: DC 12V/1A

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension (LxWxH)

148*115*28mm

The warranty

1-year warranty

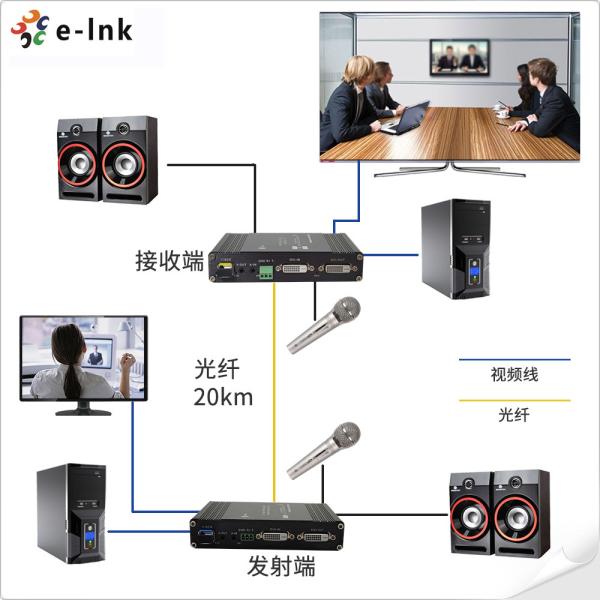

Application

Bi-directional DVI Audio RS232 Fiber Optic Extender up to 20km
