DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission
DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission
DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission
DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-KVM-DVI-1D1BA1GO
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$239-$259
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
DVI Fiber Extender Standard Export Package
Video Standards :
DVI 1.0; HDCP 1.2
Video Maximum pixel clock :
165MHz
Connector :
DVI-D
Operating Temperature :
-5℃ ~ +70℃
Dimensions (WxDxH) :
168*115*28mm
Power dissipation :
MAX 6W
Description

DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission

Overview

The LNK-KVM-DVI-1D1BA1GO Fiber Extender delivers uncompressed 1080P DVI video, USB

keyboard/mouse, RS232, stereo audio, and GPIO signals over a single optical fiber up to 60km. With

built-in HDMI loop-out, adaptive baud rate, and ESD protection, it ensures stable, high-quality

transmission for demanding professional applications. Easy to install with true plug-and-play design.

Features

Extends DVI video, USB, RS232, audio & GPIO signals up to 60km via fiber

Supports video resolutions up to 1920×1200@60Hz / 1080P HD

HDMI loop-out for local display monitoring

Bidirectional stereo audio with crystal-clear transmission

RS232 serial transmission with auto baud-rate adaptation

Robust ESD protection and automatic image adjustment

High compatibility with source & display devices, plug-and-play setup

Technical Indexes

Parameter Description
Video Standards DVI 1.0; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Resolution

1920*1200@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz
Connector DVI-D
Impedance 100Ω
Audio Interface 3.5mm earphone seat
Signal type Stereo
K/M Interface

To PC: MINI-USB

To keyboard and mouse: USB-A
GPIO Interface Industrial terminal
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max:115200bps
Data bits 8
Optical fiber Interface LC connector
Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 3Gbps
Transmission distance standard 10km
Other Power supply The power adapter: DC 12V/1A
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 148*115*28mm
The warranty 1-year warranty

Ordering Information

Model Description
LNK-KVM-DVI-1D1BA1GO 1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM

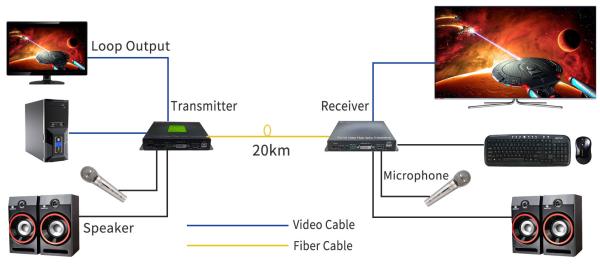

Application

DVI KVM Fiber Extender with USB RS232 Audio GPIO 60km Transmission
