Specifications
Brand Name :
E-link
Model Number :
LNK-IMC103GP-SFP Series
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pcs/per month
Delivery Time :
7 working days
Packaging Details :
Industrial Gigabit PoE Switch Standard Export Package
Connector :
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Port :
RJ45
Power Pin Assignment :
4/5(+), 7/8(-)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.3Kg
Description

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Overview
The LNK-IMC103GP-SFP Series is a compact industrial-grade unmanaged PoE+ switch designed for
harsh environment deployments. Featuring 3× 10/100/1000Base-T PoE+ ports (IEEE 802.3at, 30W/port)
and 1× 100/1000Base-X SFP slot, this rugged switch delivers flexible power and connectivity in extreme
conditions.
Key Features & Benefits:
✔ Industrial PoE+ Power:
- 3× Gigabit PoE+ ports (up to 30W each) for IP cameras/WAPs
- Wide 12-48VDC input with voltage booster
- Ideal for solar/wind-powered and mobile applications
✔ Flexible Fiber Connectivity:
- 1× SFP slot supports 100M/1G multimode/single-mode optics
- Enables both short-range and long-distance fiber links
✔ Hardened Design:
- -40°C to +75°C operating temperature range
- Vibration/shock resistant (IEC 60068-2-27/6)
- Metal housing with IP30 protection
✔ Reliable Performance:
- CE/FCC certified
- 100% burn-in tested
- Plug-and-play operation
Ideal Applications:
• Solar-powered surveillance systems
• Mobile/transportation networks
• Remote industrial monitoring
• Harsh environment wireless deployments
With its compact size, PoE+ capability and SFP flexibility, the LNK-IMC103GP-SFP Series provides a
cost-effective, maintenance-free solution for edge networks. The switch's wide voltage input and
industrial hardening make it perfect for off-grid and challenging installations where reliability is
paramount.
Features

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1

to Port-3)

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC wide range power input with power booster function

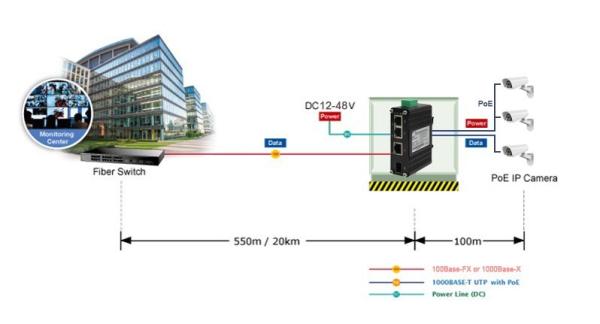

Application
Outdoor Industrial PoE Switch With 1 Port 100/1000x SFP Fiber 12~48VDC Input and Voltage Booster






















Technical Indexes

Ethernet
Standards:IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:Store-and-Forward
Forward Filter Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:4 Mbit
Switch Fabric:12Gbps
Max Packet Length:9K Bytes
Address Table Size2K MAC Addresses
Interface
Connector:3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:12~48VDC, 2-pin terminal block
Power Consumption:<95W (Non-PoE<6W)
LED Indicators:
PWR:Power Status
L/A:Ethernet LINK Status
FX:Fiber LINK Status
PoE:PoE Status
Dimensions (WxDxH):95 x 70 x 30 mm
Weight:0.3Kg
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
Environmental
Operating Temperature:-40°C to 75°C (-40°F to 167°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010

EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
































































Ordering Information

ModelDescription
LNK-IMC103GP-SFPMini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 12~48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
