LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-HF201KM
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
HDMI Fiber Optic Extender Standard Export Package
Standards :
HDMI 2.0 and HDCP 2.2
Connector :
Female HDMI type A
Power dissipation :
MAX 5W
Dimensions (WxDxH) :
163 x 86 x 24(mm)
Weight :
1.47KG
Power Supply :
DC 5V
Description

4K HDMI 2.0 KVM USB over Fiber Optic Extender

Overview

The LNK-HF201KM KVM HDMI 2.0 Fiber Extender enables ultra-high-definition video and

USB keyboard/mouse control over long distances via fiber optic cable. It supports 4K HDMI resolution

for clear, stable image transmission without compression. The extender consists of a transmitter

and receiver, connected via single-mode fiber for up to 10 km or OM3 multimode fiber for 300 meters,

making it ideal for control rooms, conference systems, broadcasting, and industrial applications.

Features

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

Technical Indexes

Parameter Description
Video Standards HDMI 2.0 and HDCP 2.2
Maximum pixel clock 600MHz
Maximum data rate 18Gbps
Resolution range 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
Connector Female HDMI type A
Impedance 100Ω
K/M Interface

PC: MINI-USB

Keyboard And Mouse: USB-A
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode or Multimode
Wavelength Single-mode 1310nm, Multimode 850nm
Interface bandwidth 18Gbps
Transmission distance

OM3 Multimode fiber: 300M

Single mode fiber: 10KM
Other Power supply The power adapter: DC 5V
Power dissipation MAX 5W
Temperature Operating: -10℃ ~ +55℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 163 x 86 x 24(mm)
Gross weight 1.471KG
The warranty 1 year free warranty

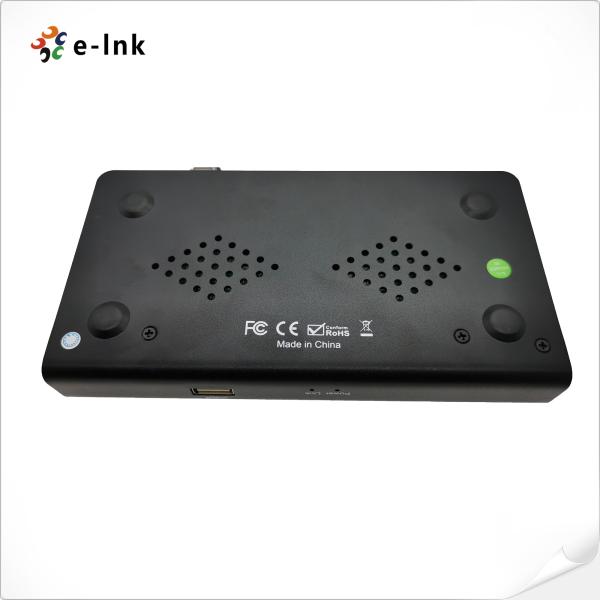

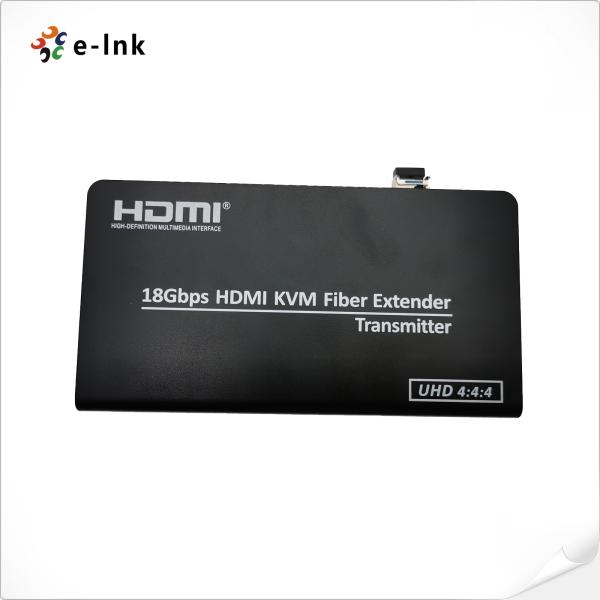

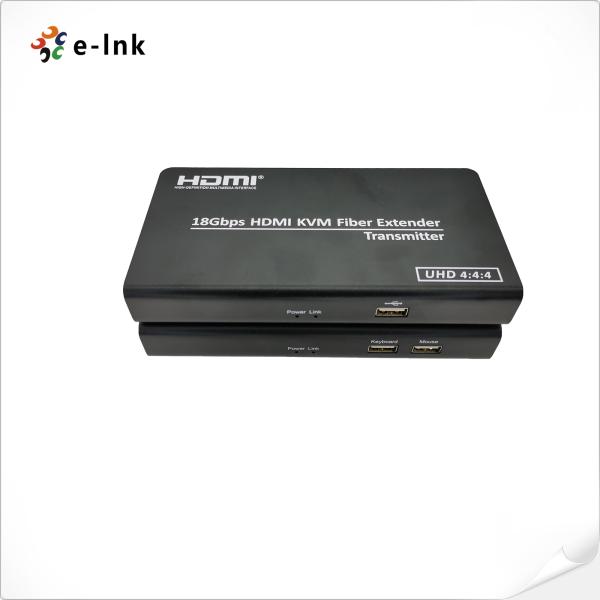

Panel & Interface
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission

Ordering Information

Model Description
LNK-HF201KM-M 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10 4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km

Application

LNK-HF201KM KVM HDMI 2.0 Fiber Extender with USB for 4K Video Transmission
