Specifications
Brand Name :
E-link
Model Number :
LNK-106M
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
2000pcs per month
Delivery Time :
3~10 working days
Packaging Details :
Mini 4K HDMI Over Fiber Optic Extender Standard Export Package
Input Signals: :
HDMI
Dynamic EDID: :
Plug & Play, no need to learn
Dimension (WxDxH): :
3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight: :
0.1 kg / 0.22 lb
Operation Voltage: :
5V DC
Power Supply: :
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)
Description

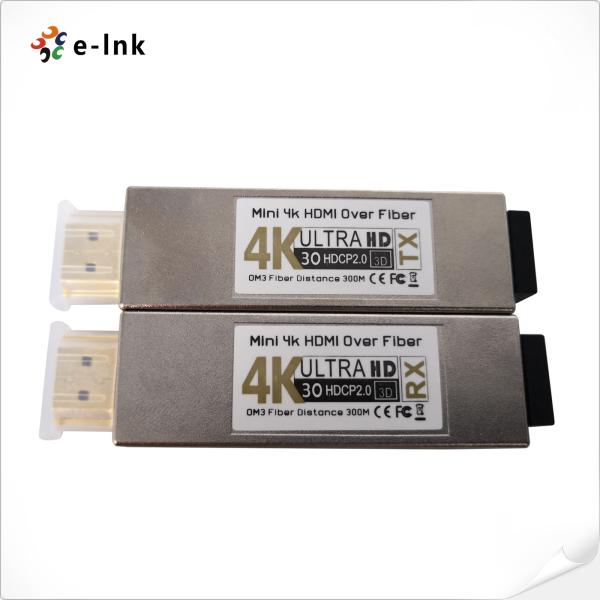

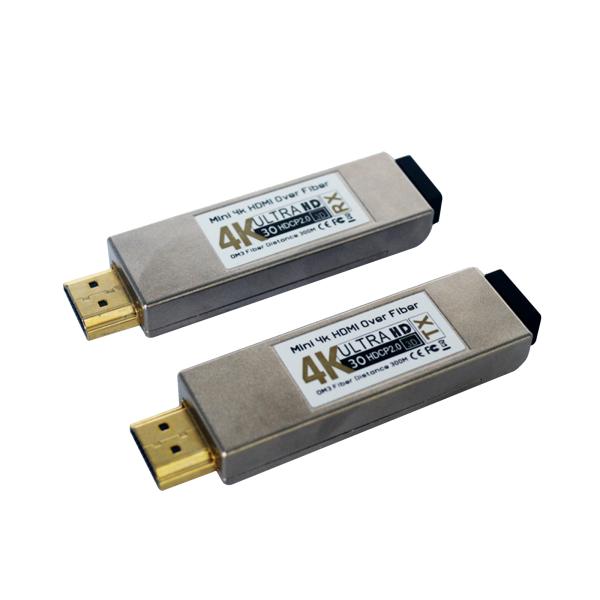

Mini 4K HDMI Optical Transceiver

Overview

The 4K HDMI Optical Transceiver is designed for uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber at 850nm, supporting up to 300m distance with 4Kx2K resolution. The transmitter converts HDMI signals into a 10Gbps serial data stream for dual-fiber transmission, while the receiver restores it to HDMI. RoHS-compliant and lead-free, this device ensures high stability and anti-interference performance. Perfect for large-screen displays, conference systems, and home entertainment setups.

Features

  • HDMI 1.4a and HCCP1.2 Support
  • Uncompressed transmission,No delay,No losses
  • DDC CEC HPD Signal Support
  • Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
  • Supports All Modes up to 4K*2K@30Hz Resolution
  • Standard HDMI Connector
  • Integrated USB Connector for Power
  • Hot-Pluggable, EMI/RFI Resistant
  • Miniature form factor for ease of use and installation
  • 850nm VCSEL and PIN Photodetector
  • Video over (2) multimode fibers
  • Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
  • Operating Case Temperature: 0~70°C

Dimension & Size

Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance

Technical Indexes

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Signal Support HDMI 1.4a HDMI format standard and HDCP compliant
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications Color space 444, 420, 400
Dynamic EDID Plug & Play, no need to learn
Fiber Connector Double LC Receptacle
Transmission Distance Multi Mode, up to 984ft (300M)
Operating Temperature 0°C to + 50°C
Storage Temperature -20°C to + 85°C
Humidity to 90% RH (non-condensing)
Safety Approvals CE, RoHS, FCC
Dimension (WxDxH) 3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight 0.1 kg / 0.22 lb
Operation Voltage 5VDC
Power Supply Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Ordering Information

Item Description
LNK-106M Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input

Application

Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance
