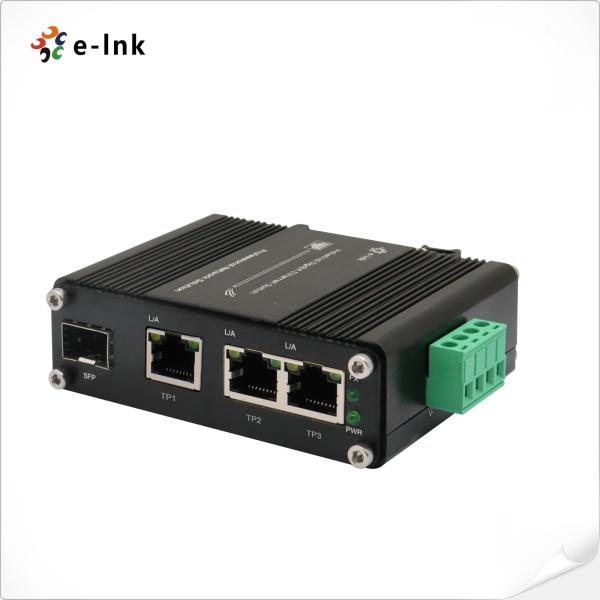

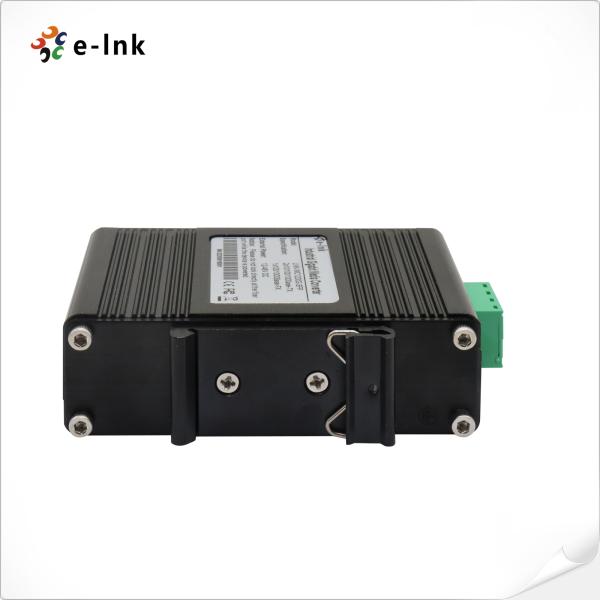

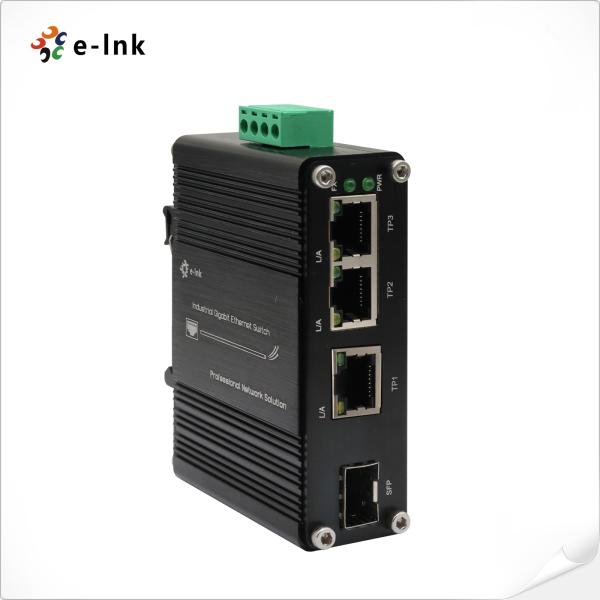

Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC103G-SFP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability :
20000pcs/per month
Delivery Time :
7 Working days
Packaging Details :
Ethernet Switch Standard Export Package
Connector :
3 x RJ45
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Input Power :
12~48VDC, 2-pin terminal block
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Casing :
Aluminum Case
Description

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switc

Overview

The LNK-IMC103G-SFP Series is an industrial-grade Gigabit Ethernet switch designed for robust

performance in harsh environments. It features three 10/100/1000BASE-T copper ports and one

100/1000BASE-X SFP fiber slot, offering flexible connectivity for both copper and fiber networks.

Packaged in a compact, IP40-rated rugged housing, this switch operates reliably in extreme

temperatures from -40°C to +75°C, making it ideal for industrial applications.

Supporting both half-duplex and full-duplex modes, the switch ensures efficient data transmission.

The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling

long-distance or high-bandwidth connections as needed. With its plug-and-play simplicity and durable

design, the LNK-IMC103G-SFP is an excellent solution for integrating IP cameras, wireless access

points, and other network devices across remote or challenging environments.

Features

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

Application

Mini Industrial-grade Gigabit Ethernet Switch 3 Port 10/100/1000T + 1 Port 100/1000X SFP

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 4 Mbit
Switch Fabric: 12Gbps
Max Packet Length: 9K Bytes
Address Table Size 2K MAC Addresses
Interface
Connector: 3 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power: 12~48VDC, 2-pin terminal block
Power Consumption: 5W Max.
LED Indicators:
PWR: Power Status
L/A: Ethernet LINK Status
FX: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC103G-SFP Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
