Mini 4K HDMI Optical Transceiver

Mini 4K HDMI Optical Transceiver Overview

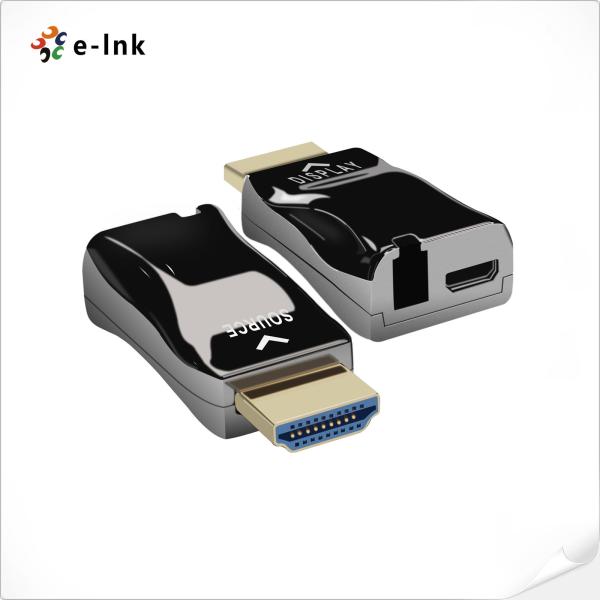

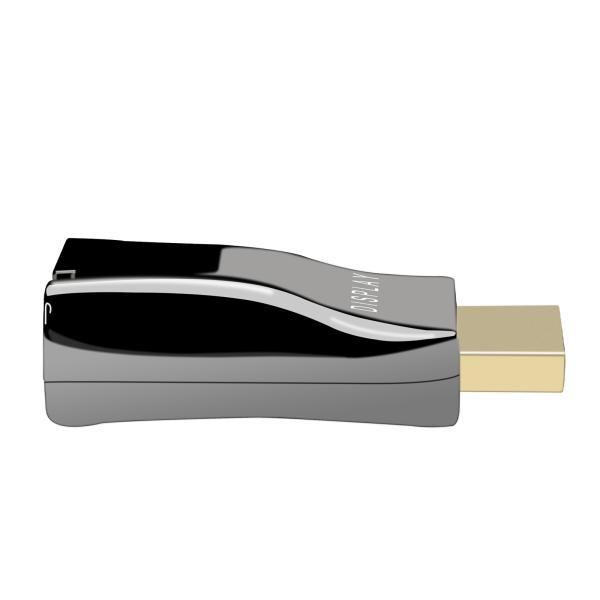

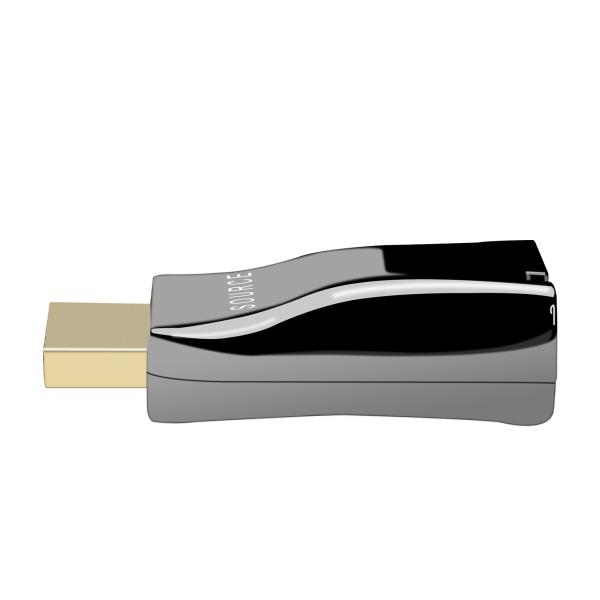

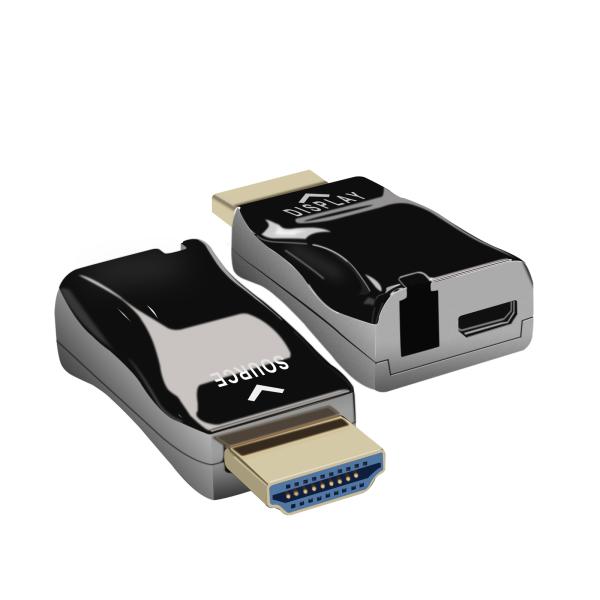

The LNK-107M is a compact, plug-and-play 4K/30Hz HDMI fibre extender using single-core

multimode fibre. It delivers uncompressed 4K video up to 300 metres (984 feet) with zero latency.

Its all-fibre design eliminates EMI/RFI interference to ensure crystal-clear signal integrity

for large-screen displays, conference rooms and home cinemas. This ultra-compact extender set (Tx+Rx),

which is compliant with HDMI 1.4 and RoHS, converts signals to 10Gbps optical data, making it perfect for

interference-free 4K AV distribution.

Mini 4K HDMI Optical Transceiver Features

• Supports HDMI video up to 4K@30Hz resolution

• Plug-and-play design with no settings or adjustments required

• Utilizes WDM technology to transmit high-definition audio and video over a single OM3 multimode optical fiber

• Supports transmission distances up to 300 m with OM3 multimode fiber

• Equipped with standard HDMI 1.4 connector for wide compatibility

• Integrated USB connector for power supply

• Low power consumption — only the RX module (display side) requires external power

• Hot-pluggable for easy installation and replacement

• TMDS signal transmission via multimode optical fiber ensures excellent anti-interference performance

• Uses compact, reliable LC optical connector

Mini 4K HDMI Optical Transceiver Technical Indexes

Mini 4K HDMI Optical Transceiver Ordering Information

Mini 4K HDMI Optical Transceiver Application
