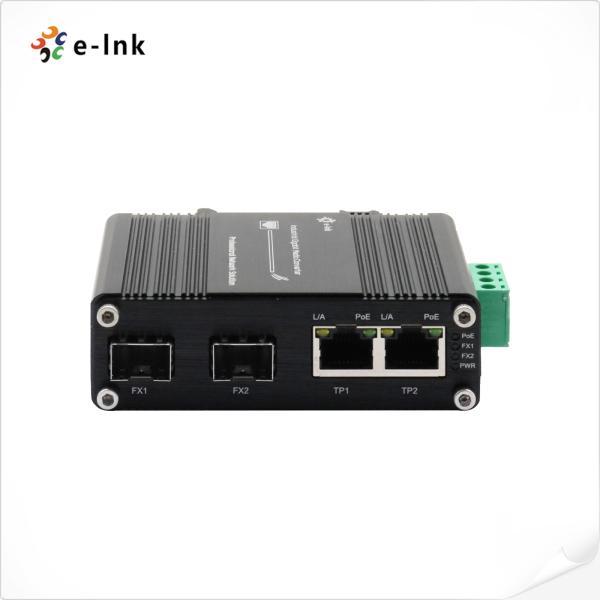

Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC202GP-SFP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
PoE Switch Standard Export Package
Connector :
2 x RJ45
Optical Port :
2 x SFP 1000Base-X or 100Base-FX (auto detection)
Input Power :
12~48VDC, 4-pin terminal block
Output Power :
48VDC
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Casing :
Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Description

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

Overview
The LNK-IMC202GP-SFP Series is a DIN rail-mounted, industrial-grade PoE switch that delivers
IEEE 802.3at (30W) high-power PoE to connected devices, making it ideal for powering IP cameras,
wireless access points, and other PoE-enabled equipment. With two 10/100/1000BASE-T copper ports
(supporting half/full-duplex mode) and one 100/1000BASE-X SFP slot, it provides flexible connectivity
for both copper and fiber networks.
Built for harsh environments, this hardened switch operates in a wide temperature range of -40°C to +75°C
and complies with EN55022 EMI standards, ensuring reliable performance in industrial settings. The SFP
slot supports various fiber modules (single-mode/multi-mode, 1/2 core), enabling long-distance or
high-bandwidth deployments.
Thanks to its rugged DIN rail design, plug-and-play simplicity, and high-power PoE support, the
LNK-IMC202GP-SFP is a robust solution for industrial automation, surveillance, and outdoor networking
applications.
Features

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► Power booster function with wide range 12~48VDC Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application
Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function




















Technical Indexes

Ethernet
Standards:IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type:Store-and-Forward
Forward Filter Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:1 Mbit
Max Packet Length:9K Bytes
Address Table Size2K MAC Addresses
Interface
Connector:2 x RJ45
Optical Port:2 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:12~48VDC, 4-pin terminal block
Output Power48VDC
Power Consumption:

65W Max.
5W Max. 0.1A@48VDC (PoE not in use)

PoE
Port:RJ45 Port 1 ~ Port 2
Max. Power per Port:30W Max per port (Alternative B Mode)
LED Indicators:
PWR:Power Status
RJ45:LINK/Activity
SFP:LINK
PoE:Per Port Status
Dimensions (WxDxH):95 x 70 x 30 mm
Weight:0.25Kg
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
Environmental
Operating Temperature:-40°C to 75°C (-40°F to 167°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010

EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)





























































Ordering Information

ModelDescription
LNK-IMC202GP-SFPMini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
SFP Options► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
