Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 36VDC

Industrial PoE 36VDC Splitter Features

1. Efficient Power-Data Separation: This PoE splitter expertly isolates standard IEEE 802.3af/at PoE input, delivering clean 24VDC power via its terminal block while simultaneously transmitting Gigabit data, enabling safe operation for your non-PoE devices.

2. Robust Network Performance & Protection: Engineered for industrial resilience, it guarantees reliable Gigabit (10/100/1000 Mbps) Ethernet connectivity up to 100m. Features include output short-circuit protection and a fanless, IP40-rated metal housing for durable operation in harsh conditions.

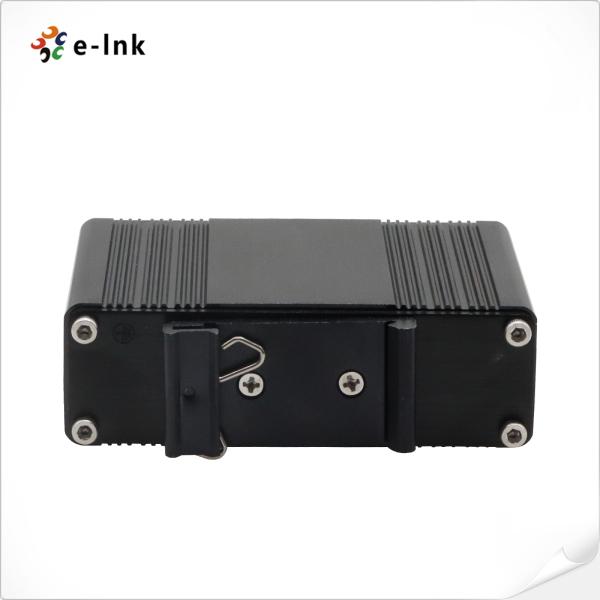

3. Versatile & Easy Deployment: Designed for flexible installation, it supports both DIN-rail and wall mounting. Comprehensive LED indicators provide real-time PoE status and diagnostics, ensuring quick setup and simplified maintenance without configuration.

4. Extreme Environment Ready: Built to withstand challenging installations, this industrial Ethernet adapter operates reliably across a wide temperature range from -40°C to 80°C, ensuring stable performance in temperature-sensitive applications.

Industrial PoE 36VDC Splitter Application

1. Industrial IoT & Automation Networks
   Powers and connects non-PoE sensors, PLCs, and controllers in harsh factory/plant environments over robust Gigabit Ethernet cabling.

2. Outdoor & Ruggedized Deployments
   Enables power and data delivery to IP cameras, wireless access points, and environmental monitors in traffic, mining, or agricultural settings, utilizing its wide-temperature and protective housing.

3. Legacy Device Modernization
   Integrates legacy 24VDC industrial equipment (e.g., older intercoms, alarms, specialized machinery) into modern IEEE 802.3af/at PoE network backbones without hardware replacement.

4. Structured Cabling & Centralized Power
   Simplifies network architecture in control rooms and electrical cabinets by delivering centralized, safe power via Ethernet cabling, supporting DIN-rail mounting for neat installations.

5. Mission-Critical Monitoring Systems
   Provides reliable, continuous power and high-speed data links for security systems, facility management devices, and remote telemetry units where stable uptime is essential.

Industrial PoE 36VDC Splitter Overview

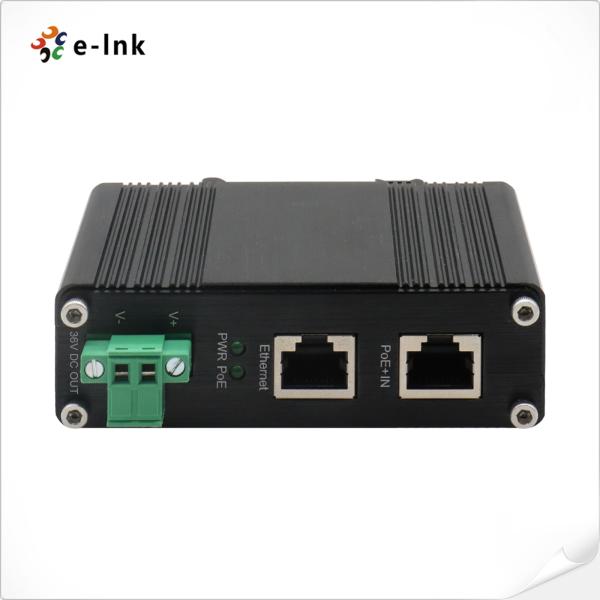

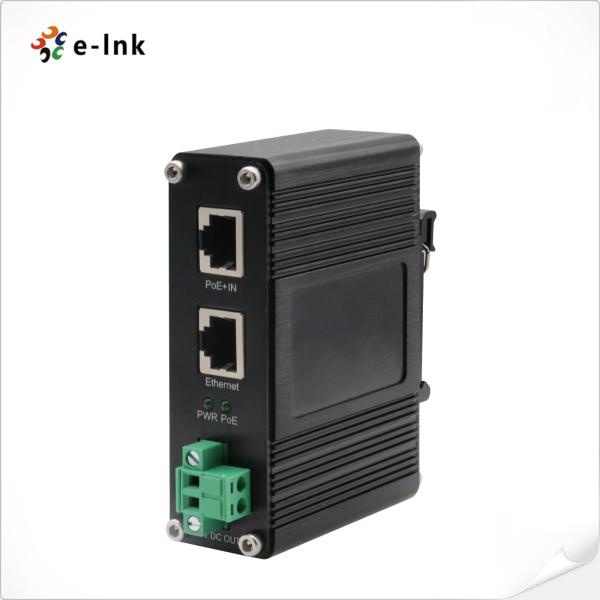

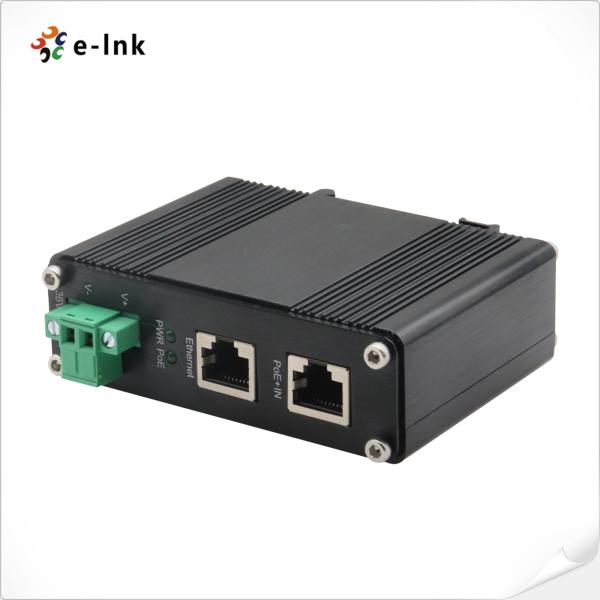

The LNK-INS301-36V is a robust, industrial-grade Gigabit Ethernet PoE splitter designed to deliver both high-speed data and reliable DC power. This compact device efficiently separates Power over Ethernet (PoE) from a standard IEEE 802.3af/at compliant source—such as a PoE switch or the LNK-INJ301 PoE injector—and outputs stable 36V DC via a secure terminal block to energize non-PoE equipment. Supporting Gigabit data rates and transmission distances of up to 100 meters, it ensures seamless, simultaneous power and data delivery. With true plug-and-play operation, no configuration is needed, enabling flexible and cost-effective deployment. Built for demanding environments, this industrial PoE splitter offers dependable performance, reduces installation costs, and is ideal for powering a wide range of industrial network devices and IoT applications.

Industrial PoE 36VDC Splitter Technical Indexes
