Specifications
Brand Name :
E-link
Model Number :
LNK-DEC110P
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
2000pair per mouth
Delivery Time :
3-10 working days
Packaging Details :
Ethernet over Coax Extenders standard exxport package
Standard :
IEEE802.3af/at
Input Power :
48-57VDC (2 pin connector) or PoE
Max. Power Per Port :
25.5W max.at RX/30W Max.at TX
Dimensions (W x D x H) :
95 × 67 × 30 mm
Weight :
0.25kg
Casing :
Aluminum case
Description

DIN-Rail Industrial 10/100Base-TX (PoE+) Ethernet over Coax Extenders with PoC

Ethernet over Coax Extenders​ Overview

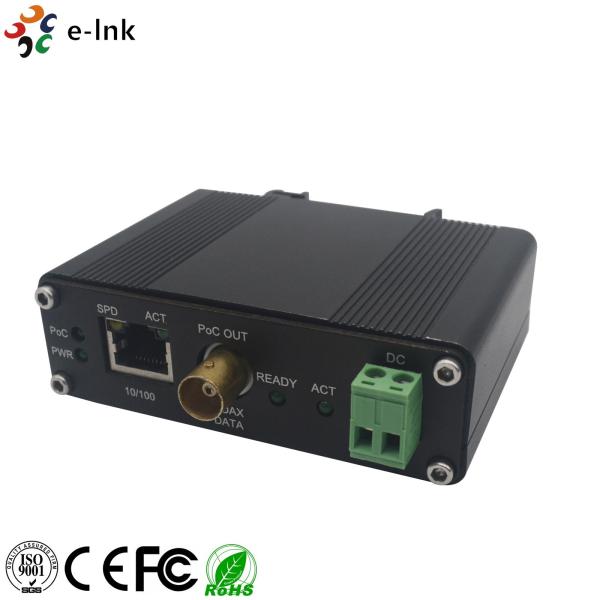

The LNK-DEC110P series DIN-rail-mounted EOC device extends a single 10/100Base-TX Ethernet

signal over coaxial cable, with a maximum transmission distance of 1 km. It also provides high-power

PoE output (up to 30W), enabling direct power supply to network cameras. This PoC technology eliminates

the need for additional power at the transmitter or camera end, making it ideal for network-based retrofitting

of analog systems using existing coaxial cable. It is widely used in CCTV surveillance and remote network expansion.

Ethernet over Coax Extenders Features

  • Ethernet Extension: Security Link over Coax
  • Support DIN-Rail mount installation
  • PoE+ (30W) and Power over Coaxial
  • 802.3af/802.3at Compliant
  • Max. Distance: 1Km over Coax (RG-59/U)
  • Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)
  • Compatible with 4-port standalone Receiver & Rack Mount 8/16-port Receiver
  • Accept 48~57VDC external power input or PoE power input from RJ45 port

Ethernet over Coax Extenders Technical Indexes

Ethernet
Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3af Power Over Ethernet
IEEE802.3at Power Over Ethernet
Cabling 10Base-T: Cat 3,4,5, or above
100Base-TX: Cat5 or above
Maximum Distance Cat5UTP up to 100m
Connector 1 x RJ45
Coaxial
Cabling Coaxial Cable (75 ohm)
Connector 1 BNC (female)
Distance Up to 1Km on RG-59/U
Data Rate
Downlink (TX to RX) 90Mbps (Max.)
Uplink (RX to TX) 90Mbps (Max.)
Technology Power Line Communication (PLC)
Protection
Reverse Polarity Present
Electrical and Mechanical
Input Power 48-57VDC (2 pin connector) or PoE
Power Consumption 8W Max. (PoC not in use)
60W Max. (Poc in use)
LED Indicators
Power Power Status
Coax LINK(Transmitter) / Ready(Reveiver) / PoC(Receiver), Activity
Ethernet SPD, LINK/ACT, PoE(Transmitter)
PoE
Standard IEEE802.3af/at
Mode B Mode
Port RJ45
Max. Power Per Port 25.5W max.at RX(Powered Device)
30W Max.at TX(Power Souring Equipment)
Mode Positive(VCC+): RJ45 Pin 4,5
Negative(VCC-):RJ45 Pin 7,8

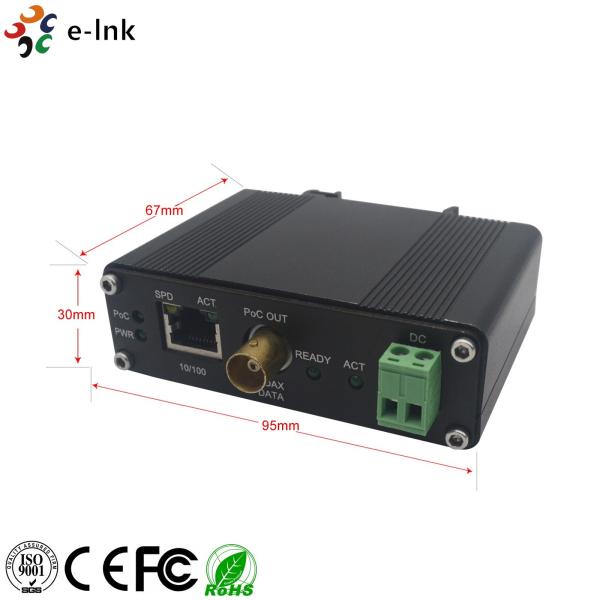

Dimensions (W x D x H) 95 × 67 × 30 mm
Weight 0.25kg
Casing Aluminum case
Environmental
Operation Temperature -10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity 5% to 90% non-condensing
MTBF > 100,000 hrs
Regulatory Approvals

ISO9001

FCC Part 15 Class A

EN55022 Class A

Surge Protection

RJ45: 1KV

BNC: 2KV

Power: 500V

Ethernet over Coax Extenders Ordering Information

Model Description
LNK-DEC110P-T DIN-Rail Transmitter of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC
LNK-DEC110P-R DIN-Rail Receiver of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC

Ethernet over Coax Extenders Application

LNK-DEC110P EOC Converter for 10/100Mbps Ethernet Extension over Coax Cable
