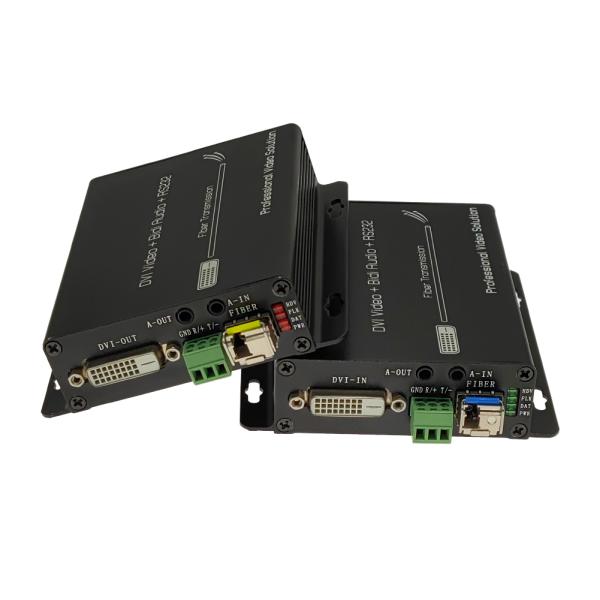

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

DVI Fiber Optic Extender with Bidirectional Stereo Audio Overview

This fiber optic extender enables long-distance transmission of DVI signals over a single optical fiber,

supporting resolutions up to 1080p and offering KVM control, RS232, GPIO signal transmission,

and external audio transmission. With excellent stability and security, it's suitable for a variety of

applications requiring high-quality, high-definition signal transmission over long distances, such as

video conferencing, broadcast television, medical imaging, security surveillance, and multimedia presentations.

DVI Fiber Optic Extender with Bidirectional Stereo Audio Features

• Long-Distance Multi-Signal Transmission:
  Transmits DVI video, RS232 control signals, and stereo audio over a single fiber cable for distances up to 20km.

• High-Resolution Video Support:
  Supports resolutions up to 1920×1200@60Hz, including specialized compatibility with 1600×1200@60Hz.

• Bidirectional Audio Capability:
  Enables external bidirectional stereo audio transmission for full audiovisual integration.

• Standards Compliance:
  Fully compliant with DVI 1.0 and HDCP 1.2 standards ensuring broad device compatibility and content protection.

• Automatic Device Matching:
  Features high compatibility with automatic source and display device detection for seamless operation.

• Built-In Image Optimization:
  Integrated automatic adjustment system ensures smooth, clear, and stable image quality.

• Enhanced System Protection:
  Built-in ESD (electrostatic discharge) protection safeguards connected equipment.

• Simple Installation:
  True plug-and-play operation requires no configuration for quick and easy setup.

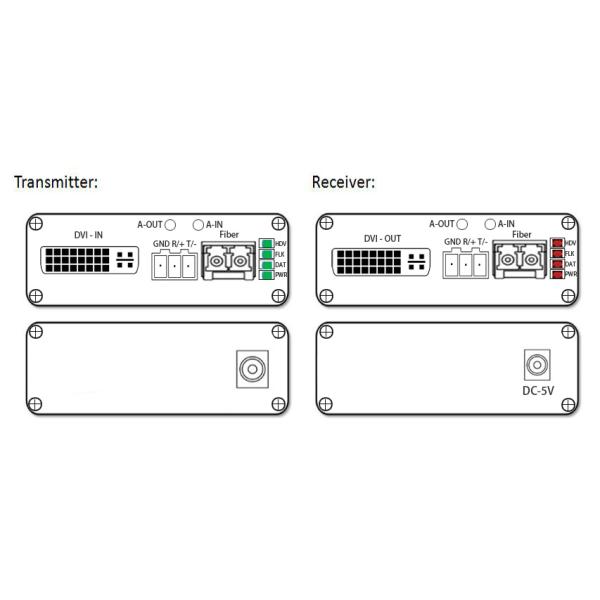

DVI Fiber Optic Extender with Bidirectional Stereo Audio Panel & Interface

DVI Fiber Optic Extender with Bidirectional Stereo Audio Technical Indexes

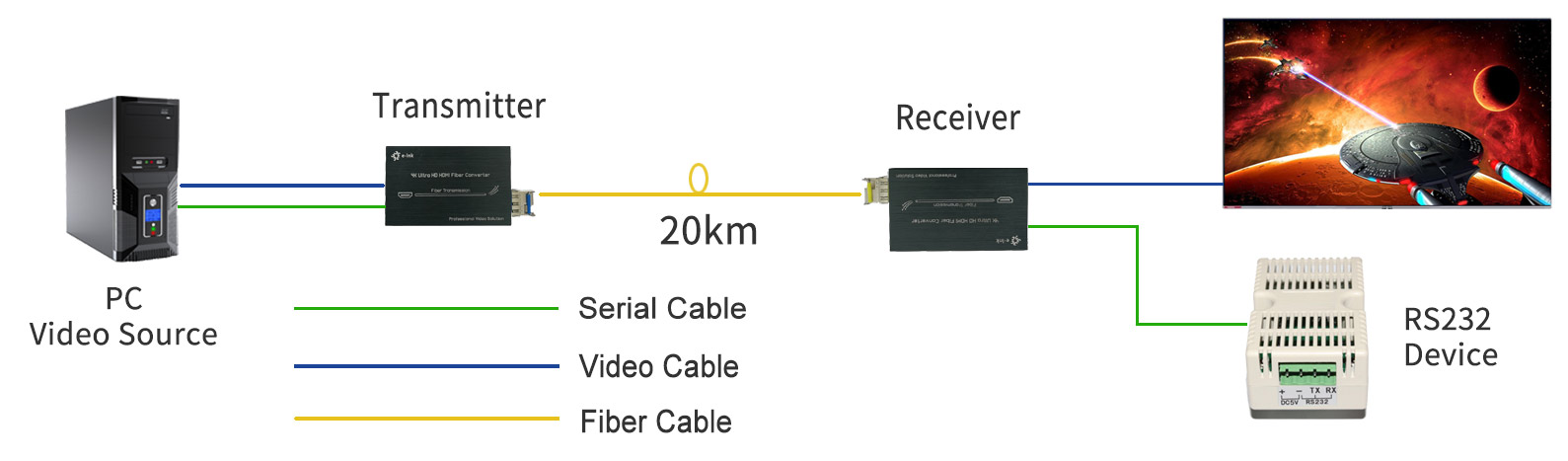

DVI Fiber Optic Extender with Bidirectional Stereo Audio Application
