Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender

Mini 4K HDMI Fiber Optic Extender Overview

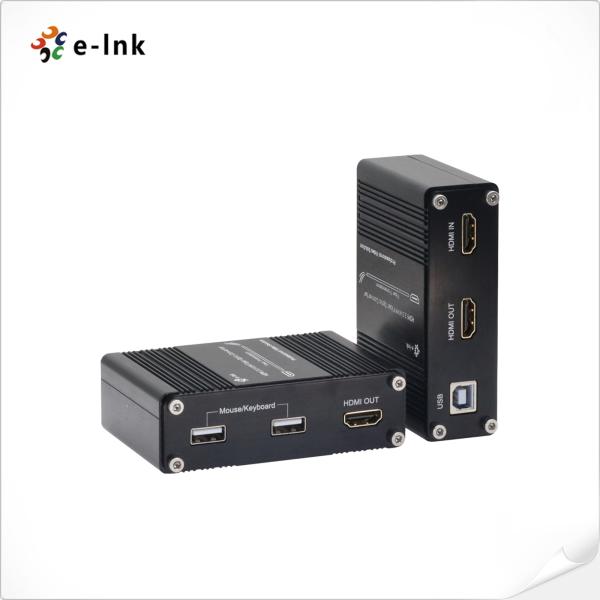

Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender includes a Transmitter and

Receiver, enabling the extension of HDMI 2.0 and USB HID signals up to 300 meters (984 feet)

over LC OM4 multimode fiber optic cable.

It supports stunning 4K UHD resolution at 60Hz with 4:4:4 chroma sampling, delivering

crystal-clear image quality on remote displays.

The Transmitter features a distribution chip that splits one HDMI input into two outputs:
– One local HDMI output
– One optical output via Wavelength-Division Multiplexing (WDM), which converts four

high-speed differential signals into a single optical signal using a photoelectric engine.

The Receiver converts the optical signal back into HDMI, ensuring reliable and high-quality

transmission across long distances.

Mini 4K HDMI Fiber Optic Extender Features

• Extends 4K HDMI 2.0 Signals up to 300m over OM4 MMF
  Delivers ultra-high-definition video over long distances with zero latency or compression, ideal for professional AV and broadcast environments.

• Supports Keyboard and Mouse Signal Transmission
  Enables full USB HID device control remotely, ensuring seamless interactive operation between user and display.

• Uncompressed 4K@60Hz 4:4:4 Video Quality
  Maintains original video and color integrity with no loss in quality, supporting HDR and deep color formats.

• Local Loop-Out on Transmitter
  Allows simultaneous local monitoring while transmitting to a remote display, facilitating real-time preview and confidence checking.

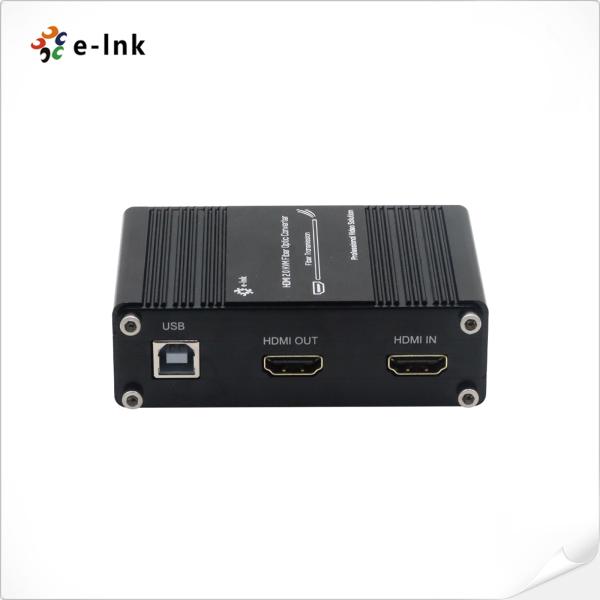

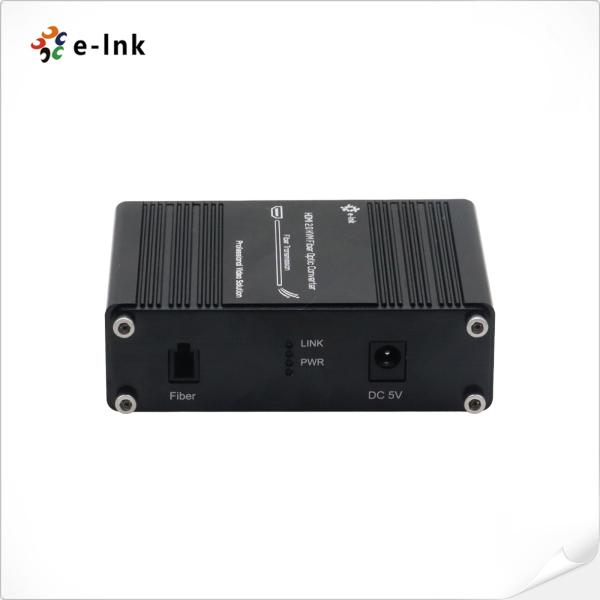

• Transmitter Ports: HDMI In, USB Type-B (KB/Mouse), LC Fiber, DC 5V Input
  Offers comprehensive connectivity in a compact transmitter design for easy integration with source equipment.

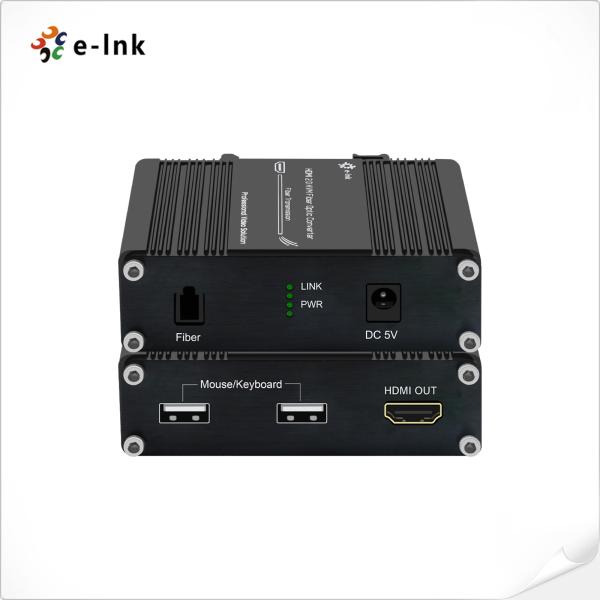

• Receiver Ports: HDMI Out, Dual USB Type-A (KB/Mouse), LC Fiber, DC 5V Input
  Provides flexible output options for display and peripherals, supporting dual USB devices for enhanced usability.

• True Plug-and-Play Operation
  Requires no software configuration or driver installation, ensuring quick deployment and user-friendly experience.

Mini 4K HDMI Fiber Optic Extender Technical Indexes

Mini 4K HDMI Fiber Optic Extender Ordering Information

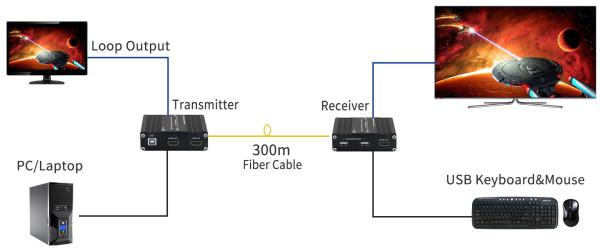

Mini 4K HDMI Fiber Optic Extender Application
