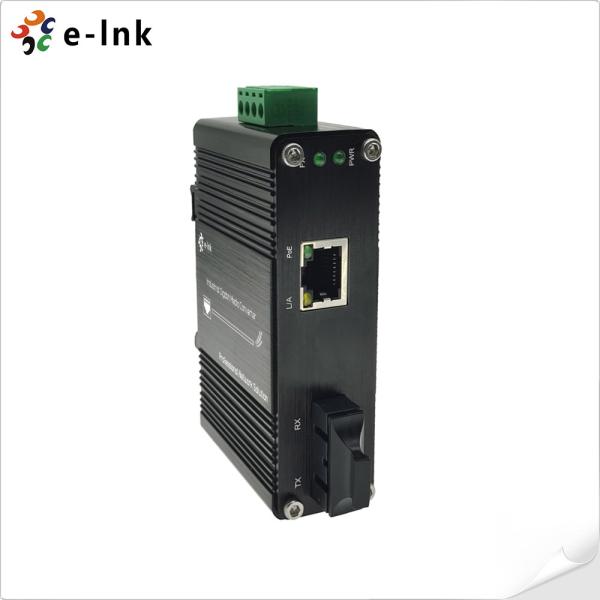

Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C
Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C
Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C
Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3011P60
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
negotiate
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Industrial Ethernet PoE Switch Standard Export Package
Network Interface :
1×RJ45 (10/100/1000BASE-T, Auto MDI/MDI-X), 1×SC (1000BASE-X)
PoE Capability :
Up to 60W PoE++ output over 4 pairs, IEEE802.3af/at compliant
Power Input :
12~48VDC, 4-pin terminal block
Power Consumption :
Max. 65W
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Dimensions :
95×70×30 mm
Description

Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C

Overview

The LNK-IMC3011P60 Series is a rugged industrial-grade media converter that bridges

copper and fiber networks while delivering up to 60W PoE++ power for high-demand devices.

Designed for harsh environments, it operates reliably from -40°C to 75°C in a compact

aluminum housing. With support for IEEE802.3af/at standards, Gigabit Ethernet, and flexible

installation options, it is ideal for powering PTZ cameras, wireless APs, and other

power-hungry PoE devices in transportation, industrial automation, and security surveillance

networks.

Features

High-Power PoE++ Output — Delivers up to 60W over 4-pair Ethernet for demanding

devices.

Gigabit Fiber Conversion — Converts between 10/100/1000BASE-T copper and

1000BASE-X SC fiber.

Hardened Industrial Design — Rugged aluminum housing, -40°C to 75°C operating

temperature.

Flexible Deployment — Supports DIN-rail and wall-mount installation.

Energy Efficient — IEEE 802.3az compliant for reduced energy consumption.

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2048K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x 1000Base-X SC

Electrical and Mechanical

Input Power:

12~48VDC, 4-pin terminal block

Output Power

48VDC

Power Consumption:

65W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC3011P60

Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC3011P60-20

Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC3011P60S-20

Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

Application

Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C
