4-port 10/100BASE-T PoE + 2-port 100BASE-T Uplink Industrial 250m PoE Switch

Industrial 250m PoE Switch Overview

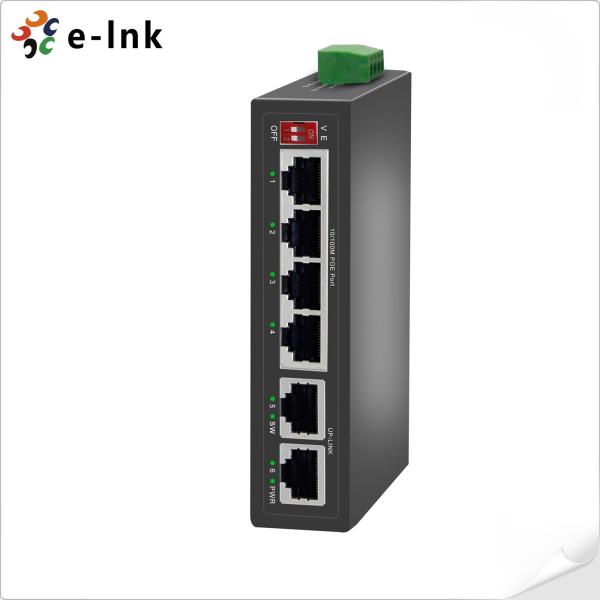

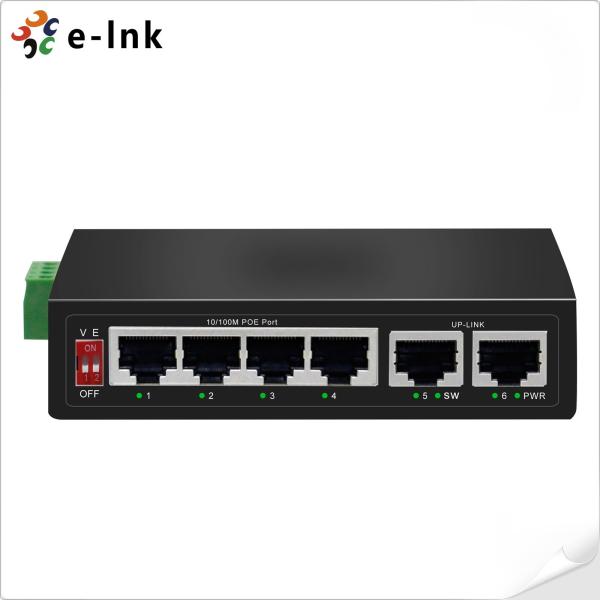

The LNK-GYT420P Series is a 250-metre long-range industrial Power over Ethernet switch

featuring four 10/100Base-TX Power over Ethernet ports (30 watts per port) and two 100-Mbit/s uplink ports.

This switch delivers power and data over a single RJ-45 cable to IP cameras, wireless access points,

and other power-over-Ethernet devices. This product has been designed for use in surveillance

and industrial networks. It provides fast packet forwarding, high bandwidth, and stable transmission for crisp,

uninterrupted video streams.

The product incorporates built-in surge protection and static defence circuits, thereby ensuring reliable operation

in harsh environments. The advanced features of this product include one-key VLAN mode, QoS prioritisation,

broadcast storm control and network security protection, making it perfect for Ethernet video surveillance

and industrial IoT deployments.

Industrial 250m PoE Switch Features

• Transmission distance up to 250 m, ideal for flexible deployment in wireless AP and surveillance projects
• Provides 10 Mbps bandwidth at 250 m when connecting IP cameras
• 4 × 10/100Base-TX PoE ports + 2 × 100M uplink Ethernet ports
• 10/100 Mbps RJ45 ports support full/half-duplex, auto-negotiation, and Auto MDI/MDIX
• Compatible with IEEE 802.3at (30W) and IEEE 802.3af (15.4W) PoE standards
• IEEE 802.3x flow control for reliable data transmission
• 6KV surge protection on all ports for enhanced lightning resistance
• Redundant power input design for improved reliability
• Supports both wall-mount and DIN-rail installation
• Wide operating temperature range: -40°C to 80°C (-40°F to 176°F), suitable for harsh industrial environments

Industrial 250m PoE Switch Technical Indexes

Industrial 250m PoE Switch Ordering Information

Industrial 250m PoE Switch Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
