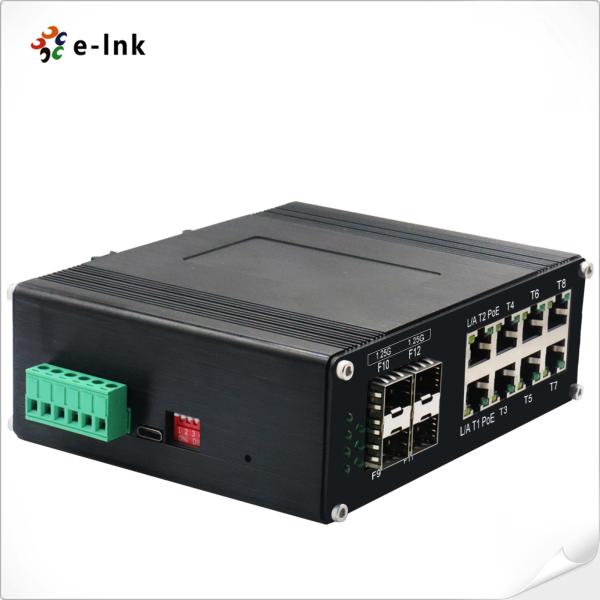

Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch
Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch
Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch
Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
ETH-IMC408MP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$185-$205
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Industrial Ethernet PoE Switch Standard Export Package
Ports :
8×RJ45 (10/100/1000Base-T, PoE+), 4×SFP (1000Base-X)
PoE Standard :
IEEE 802.3af/at, 240W total PoE budget
VLAN :
IEEE 802.1Q (4K VLAN), QinQ, Double VLAN
Power Supply :
48–57VDC, redundant input, ≤240W PoE + 8W system
Casing :
IP40 Aluminum, 149×114×50mm, 0.55Kg
Operating Temperature :
-40°C ~ 80°C
Description

Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch

Overview

The ETH-IMC408MP is an industrial-grade L2+ managed Ethernet switch with 8 Gigabit

PoE+ ports (IEEE 802.3af/at) and 4 Gigabit SFP uplinks. Featuring a 240W total PoE

budget, it powers devices such as IP cameras, wireless APs, and VoIP phones while

delivering reliable data transmission. Built with IP40 aluminum housing, wide -40°C to

80°C operating temperature, redundant power inputs, and USB-C for simplified

management, it ensures secure and stable networking in harsh industrial environments.

Features

8×10/100/1000Base-T PoE+ (802.3af/at) + 4×1000Base-X SFP ports

Up to 240W PoE budget with per-port power management

USB-C management port, no RS232 required

DIP switch supports VLAN, Ring Management, 250m PoE Extend, PoE Reset

110Gbps switching capacity, 12Mbit packet buffer, 9K Jumbo Frame

Advanced redundancy: STP/RSTP/MSTP/ERPSv2, Link Aggregation

Supports IGMP Snooping V1/V2/V3, QinQ, 4K VLANs, Double VLAN

QoS with DSCP/802.1p, WRR, SP scheduling, and priority control

Strong security: 802.1X, RADIUS, SSH, HTTPS, DHCP Snooping, DDOS protection

PoE management: total power limit, allocation, scheduling, priority config

Diagnostic tools: port mirroring, Syslog, Ping, RMON, TRAP

Rugged IP40 aluminum housing, DIN-Rail installation

Wide operating temp: -40°C to 80°C, MTBF >200,000 hrs

Redundant 48–57VDC power input with overload & reverse polarity protection

Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

USB-C:

1 x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data +, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

8 x RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 240-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max. (PoE in Use<240W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

LED Indicators:

PWR

Power Status

Ethernet (Per Port)

Link/Activity

PoE

PoE Status

Fiber:

Gigabit SFP Port: F9~F12

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,

Time Management

SNTP

QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82, 802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS, port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

ETH-IMC408MP

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

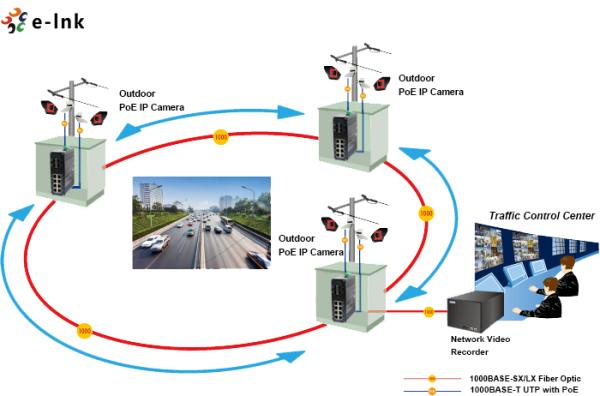

Application

Industrial L2+ 8-Port Gigabit PoE+ (802.3at) + 4 SFP Managed Ethernet Switch
