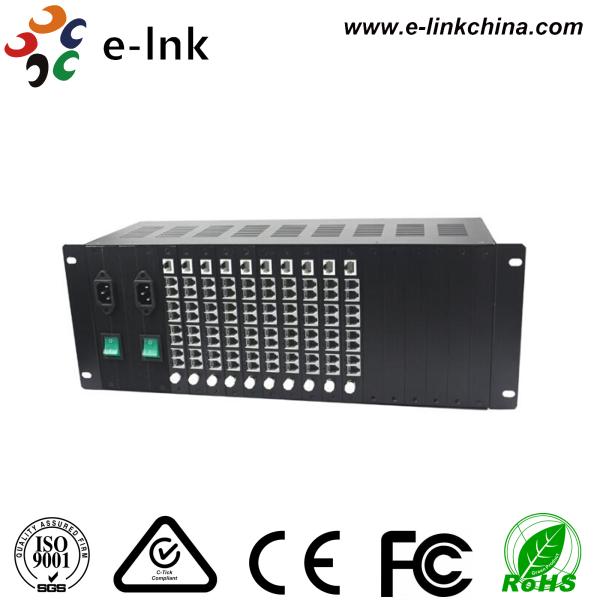

High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install
High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install
Specifications
Brand Name :
E-link
Model Number :
LNK-PR16-2A
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
USD $139-159
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
3-10working days
Packaging Details :
4U Telephone Fiber Mux Rack Standard Export Package
Structure :
19” 4U rack
Power output :
DC5V 16A
Power input :
AC Voltage: AC 100~260V; frequency: 50/60 Hz
Dimension (mm) :
485x280x176 (LxWxH)
Weight :
7.4KG
Operating Temperature :
-30°C to +55°C
Description

4U Telephone Fiber Mux Rack

4U Telephone Fiber Mux Rack Overview

The LNK-PR-4U is a high-capacity, professional 4U chassis designed for robust and flexible telecommunications
deployment. Supporting a hybrid combination of up to 16 card-type modules (4-channel or 8-channel telephone
fibre multiplexers), it allows for a scalable system configuration of up to 128 channels. Engineered for
maximum reliability, it features a robust switch mode power supply (SMPS) that accepts 110/220 V AC input.
Its advanced electrical design prevents single-module failures from affecting others, ensuring unmatched
system stability. Built-in cooling fans enhance the chassis's longevity, and front-accessible, hot-swappable
modules and clear LED status indicators offer effortless maintenance, eliminating the need for system
downtime during upgrades or replacements.


4U Telephone Fiber Mux Rack Features


► Active/standby dual power supply design ensures uninterrupted system operation
► Equipped with two power supply options for reliable performance in diverse operating environments
► Supports simultaneous operation of 4-Channel or 8-Channel card-type Telephone Fiber Mux,

greatly enhancing system adaptability
► Hot-swappable modules allow easy maintenance and upgrades without service interruption


4U Telephone Fiber Mux Rack Technical Indexes


Parameter

Specifications

Number of slots

16

Structure

19” 4U rack

Card-type converter support

4Ch or 8Ch Card-type Telephone Fiber Mux

Power input

AC Voltage: AC 100~260V; frequency: 50/60 Hz

Power output

DC5V 16A

MTBF

> 100,000 hours

Power configuration

Single power supply; or

Dual power supply for warm backup mode

Dimension (mm)

485x280x176 (LxWxH)

Weight

7.4KG

LED indication

POWER (power supply)

Construction

Metal

Operating temperature

-30°C to +55°C

Storage Temperature

-40°C to +85°C

Relative humidity

5%~90% (non condensing)


4U Telephone Fiber Mux Rack Ordering Information


Model

Description

LNK-PR16-2A

19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply


4U Telephone Fiber Mux Rack Application


High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
