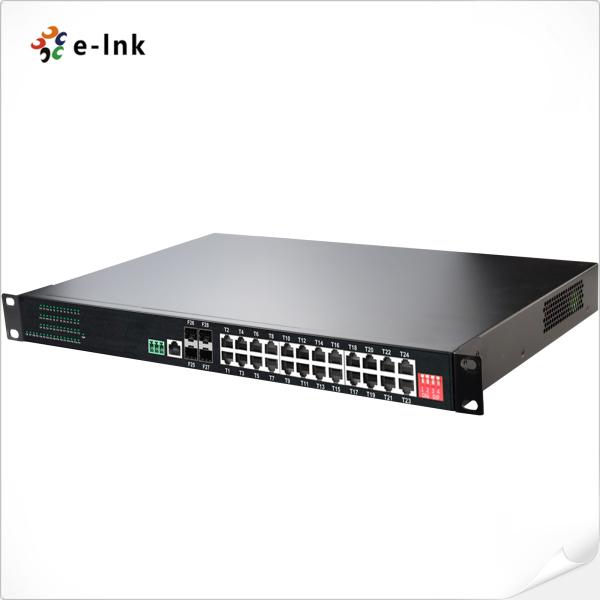

L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design
L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design
L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design
L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design
Specifications
Brand Name :
E-link
Model Number :
ETH-IMC2424MP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
USD $369-389
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Industrial Managed Ethernet Switch Standard Export Package
Connector :
24 x RJ45
Optical Port :
4 x 1000Base-X SFP
Input Power :
48~57VDC, Redundant Power (6-pin Terminal Block
PoE Budget :
Up to 720-watt PoE budget
Power Consumption :
15W Max.(PoE in Use<720W)
Dimensions (WxDxH) :
440mm x 300mm x 45mm
Weight :
3.5Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Description

Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch


Industrial Managed Ethernet Switch Overview


The ETH-IMC2424MP Series is a ruggedized, L2+ managed, rack-mountable switch featuring

24 10/100/1000Base-T RJ45 ports with 802.3at PoE+ support and 4x 1000Base-X SFP fiber slots.

Designed for harsh environments, the switch delivers high-power PoE to multiple devices,

such as IP cameras and wireless access points. It provides flexible fiber uplink connectivity

(single-mode and multi-mode) and offers advanced management capabilities for reliable network

integration in industrial and remote applications.


Industrial Managed Ethernet Switch Features


►Provides 24×10/100/1000Base-T RJ45 ports, 4×1000Base-X SFP slots, and 1×RS485 interface

►RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX

►IEEE 802.3af/at compliant for PoE applications

►DIP switch functions: one-key VLAN, one-key ring management, PoE reset, and extended 250m PoE transmission

►USB-C management port for simplified configuration, eliminating the need for RS232 serial access

►Supports 10K Jumbo Frames for enhanced data transfer performance

►Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)

►Durable IP40-rated aluminum enclosure for industrial use

►Supports 1U 19” rackmount installation for flexible deployment

►Wide operating temperature range: -40°C to 80°C (-40°F to 176°F)


Industrial Managed Ethernet Switch Technical Indexes


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

10K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Connector:

24 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

USB-C:

1 x USB-C (for Management)

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 720-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

15W Max.(PoE in Use<720W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE

PoE Status (T1~T24)

Fiber:

Gigabit SFP Port: F1~F4

Dimensions (L x W x H):

440mm x 300mm x 45mm

Weight:

3.5Kg

Casing:

Aluminum Case

Mounting Options:

Rackmount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,

Time Management

SNTP

QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Industrial Managed Ethernet Switch Ordering Information


Model

Description

ETH-IMC2424MP

Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Rackmount Installation

Power Options

► Industrial Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.


Industrial Managed Ethernet Switch Application


L2+ Managed Switch 24 PoE Ports 4 SFP Fiber Rackmount Rugged Design

After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
