Specifications
Brand Name :
E-link
Model Number :
LNK-HT100 Series
Certification :
CE FCC RoHS
Place of Origin :
Guangdong
MOQ :
1
Price :
USD79-99/pair
Payment Terms :
MoneyGram, Western Union, T/T, L/C
Supply Ability :
1000pair per mouth
Delivery Time :
5-8 days
Packaging Details :
standard exxport package
Power supply :
The power adapter: DC 5V
Power dissipation :
MAX 6W
Temperature :
Operating: -5℃ ~ +70℃
Dimension :
94.5*71*26mm
The warranty :
1 Year
Video Standards :
HDMI 1.3; HDCP 1.2
Description

H.264 HDMI over TCP/IP Extender

Model: LNK-HT100 Series

Overview

The H.264 HDMI extender transmit HD video and audio over one cat5e/cat6 cable, over TCP/IP standard, support one to many application over Ethernet. The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

Features

· Transmits HDMI video and audio signals up to 150M over a single CAT6 cable; Support video resolution max up to 1920*1080p@60Hz;

· Support IR signal transmission;

· Support over TCP/IP, one to many application with Ethernet switch/router.;

· Compliance with HDMI 1.3 and HDCP 1.2 standard;

· High compatibility, can auto-match source and display device;

· Built-in automatic adjustment system, make the image smooth, clear and stable;

· Built-in ESD protection system;

· Simple to install, plug and play;

Technical Indexes

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Compressed format H.264
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector HDMI-A
Impedance 100Ω
Ethernet Interface RJ45
Transmission distance CAT6---150m,
Other Power supply The power adapter: DC 5V
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 94.5*71*26mm
The warranty 1 year free warranty

Panel Descriptions


Transmitter:

H.264 TCP / IP HDMI Over Fiber Optic Extender transmit HD video and audio over one cat5e / cat6 cable

Receiver:

H.264 TCP / IP HDMI Over Fiber Optic Extender transmit HD video and audio over one cat5e / cat6 cable

Port name Description
HDMI IN/HDMI OUT HDMI signal input/output
Cat5e/6 Ethernet interface
DC 5V Power adapter socket
RESET Press for 5 second to restore system setting to factory default
LED indicator Description
STATUS Video signal connection indicator/System power indicator

Application Diagram

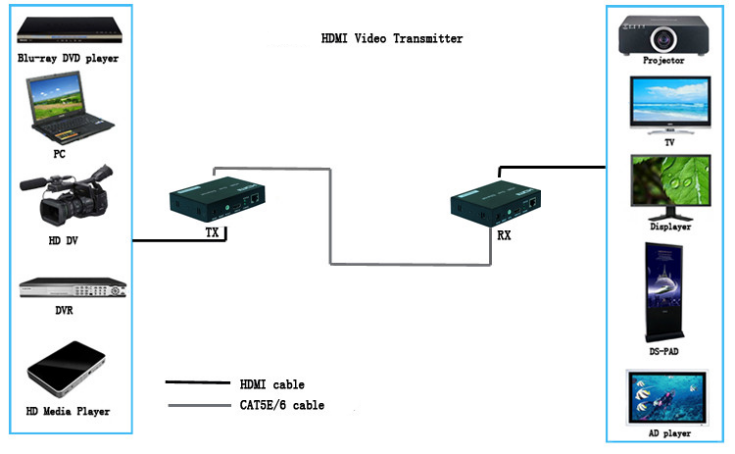

I. One to one application

H.264 TCP / IP HDMI Over Fiber Optic Extender transmit HD video and audio over one cat5e / cat6 cable

II. one to many application

H.264 TCP / IP HDMI Over Fiber Optic Extender transmit HD video and audio over one cat5e / cat6 cable

Ordering Information

Part No Description of product
LNK-HT100-T H.264 HDMI Extender over CAT5/ 6 Kit Transmitter;
LNK-HT100-R H.264 HDMI Extender over CAT5/ 6 Kit Receiver

H.264 TCP / IP HDMI Over Fiber Optic Extender transmit HD video and audio over one cat5e / cat6 cable
