Specifications
Brand Name :
E-link
Model Number :
LNK-HF200 Series
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Delivery Time :
7
Packaging Details :
Standard Export Package
Video standard :
HDMI 2.0; HDCP 2.2
Maximum pixel clock :
297MHz
Maximum data rate :
18Gbps
Resolution range :
3840X2160@60Hz
Connector :
Female HDMI type A
Interface :
SFP model – LC connector
Fiber type :
Multi-mode
Wavelength :
Multi-mode 1310nm
Description

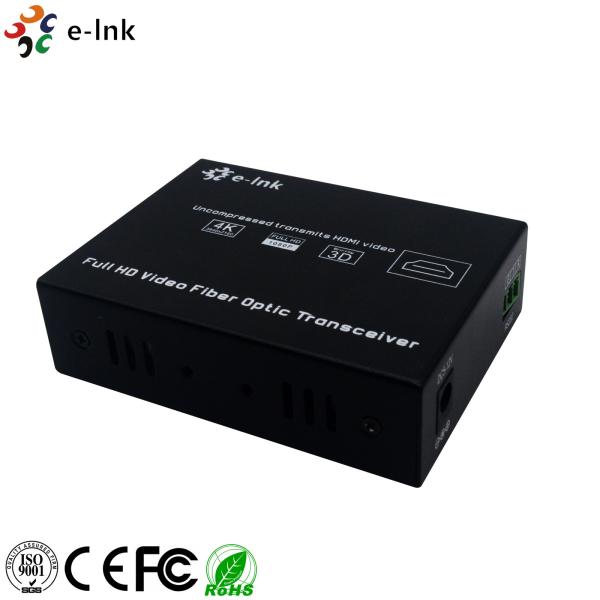

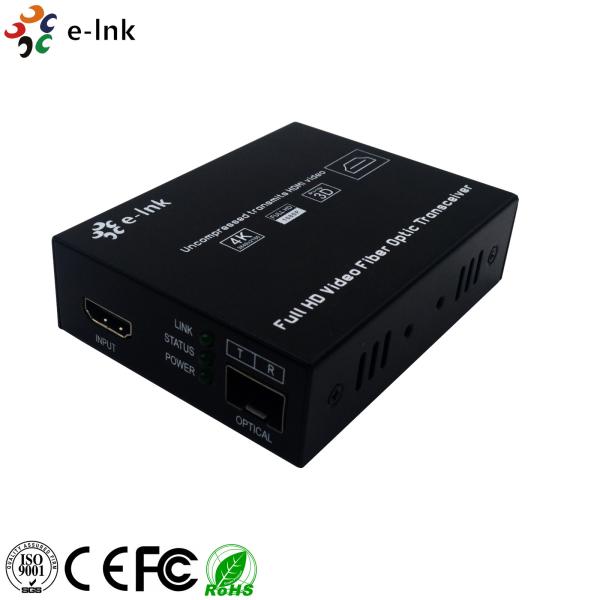

HDMI 2.0 over Fiber Optic Extender

Model: LNK-HF200 Series

Overview

The LNK-HF200 HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over fiber optic cable, it supports high resolution up to 4K*2K; The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

· Uncompressed, no delay transmits HDMI video signals up to 300-500m over fiber optic cable;

· Support video resolution up to 3840*2160@60Hz,1920*1200@60hz,1920*1080P@60Hz, 3D signal;

· Double fiber cable pass-through transmits HDCP/EDID ;

· Single fiber support copy EDID, but can’t pass HDCP;

· Compliance with HDMI 2.0 and HDCP 2.2 standard;

· High compatibility, can auto-match source and display device;

· Built-in automatic adjustment system, make the image smooth, clear and stable;

· Built-in ESD protection system;

· Simple to install, plug and play;

Technical Indexes

Parameter Description
Video Standards HDMI 2.0; HDCP 2.2
Maximum pixel clock 297MHz
Maximum data rate 18Gbps
Resolution range Up to 3840X2160
HDMI 2.0 Fiber Optic Transmitter And Receiver Multi Mode Fiber Type 18Gbps Data Rate
